BOA-Ku06 v2

  • Description
  • Parameters
  • Downloads

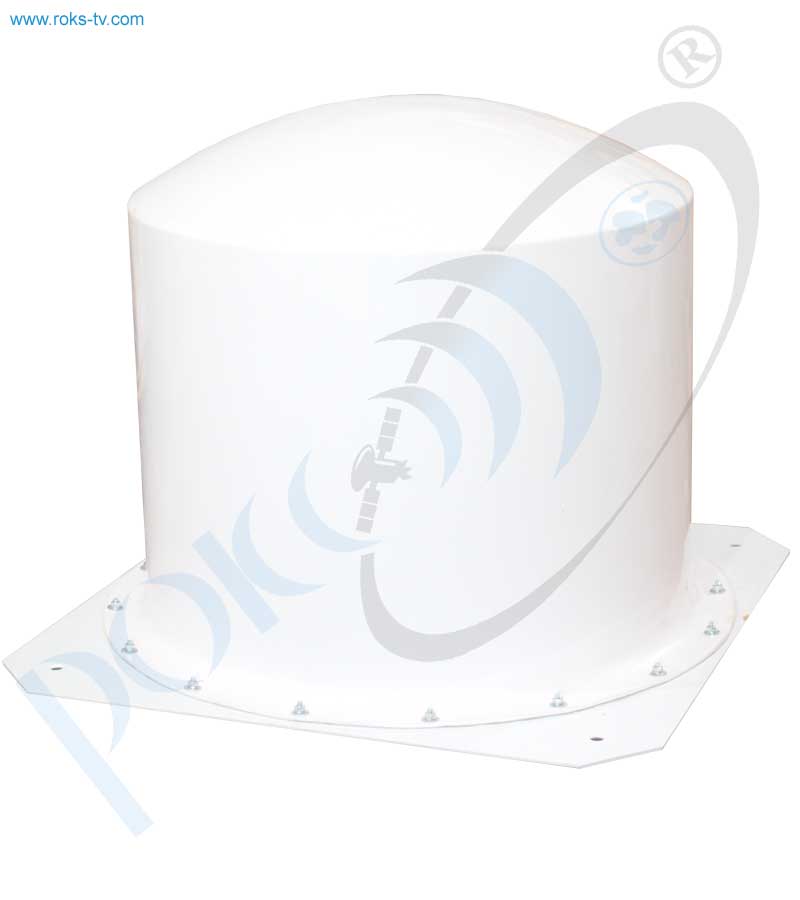

Broadband double reflector antenna with an OMNI directional kind of “barrel”. Purpose – send and receive signals at the central stations broadcasting, interactive microwave systems.

ParameterValue
Frequency range, GHz 10-14
Gain, dB 13.0
VSWR 1.55
Polarization Linear
HPBW (horizontal), deg 360°
HPBW (vertical), deg
Input power, kW 1
Waveguide WR-75 or С-120
Temperature range, °C -40 to +80
Humidity 100%
Dimensions, mm 680x680x570
Weight, kg 12
Allowable wind speed, mps 40
Casing material Radio transparent plastic
Mount Mounting on a horizontal surface

Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.


Documentation
