Ku-band bandpass filter

  • Description
  • Parameters
  • Downloads

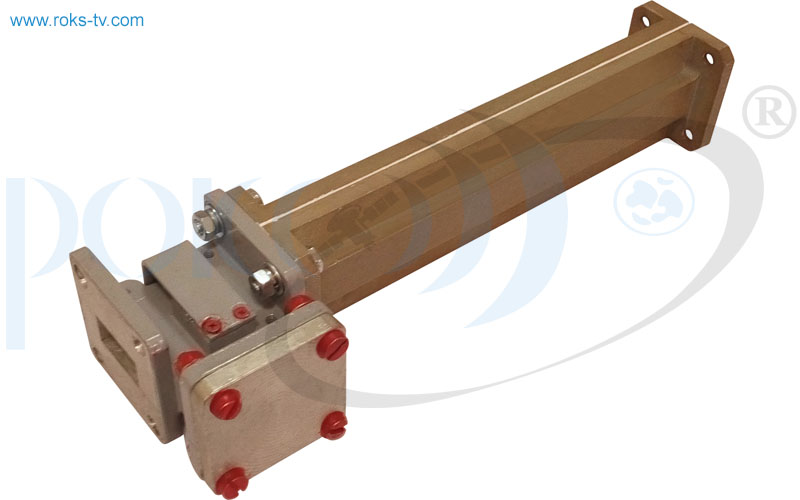

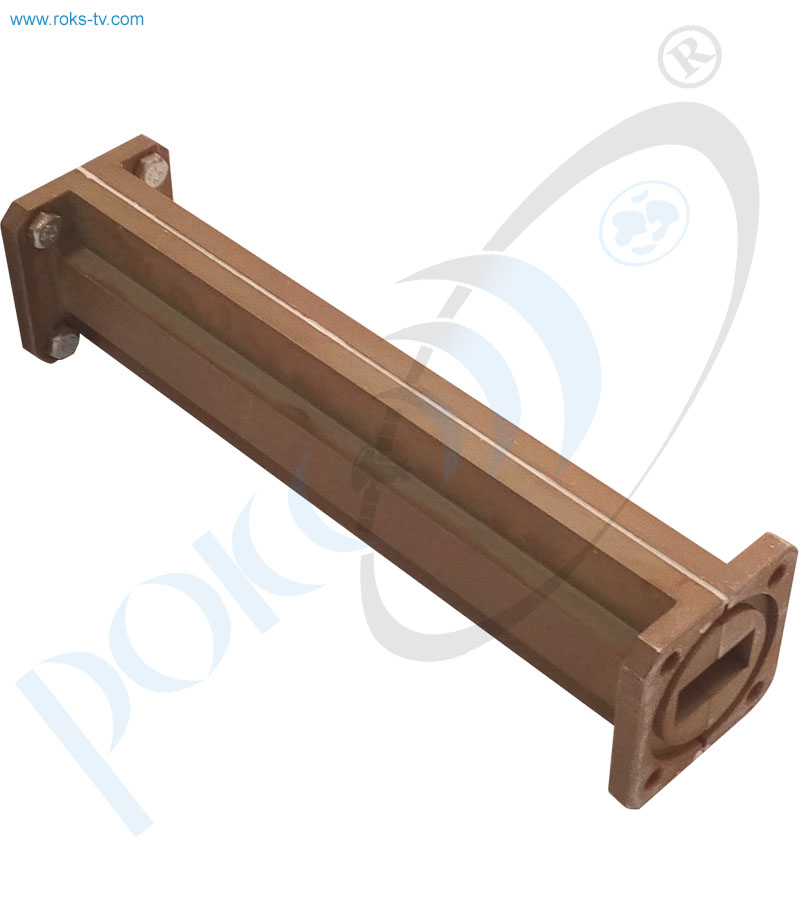

11100–11700 MHz waveguide Bandpass Filter. This solution can be used in transmitters to reduce the out of band emissions and limit the signal bandwidth, and reduce noise-band of transmitter. Also this filter can be used as diplexer filter in RRLs solution or as receiver filter for increase signal-noise ratio.

Filter type waveguide bandpass
Waveguide type WR75
Waveguide flange type UBR120+PBR120
Bandwidth 11100…11700 МHz
Filter characteristic type Chebyshe
Amplitude-frequency characteristic unevenness of filter in bandwidth +/- 0.5 dB max
Real loss in bandwidth 1 dB max
Rejection from transmission band edge of 100 МHz 45 dB, not less
VSWR 1.5 max
Case material Aluminium alloy
