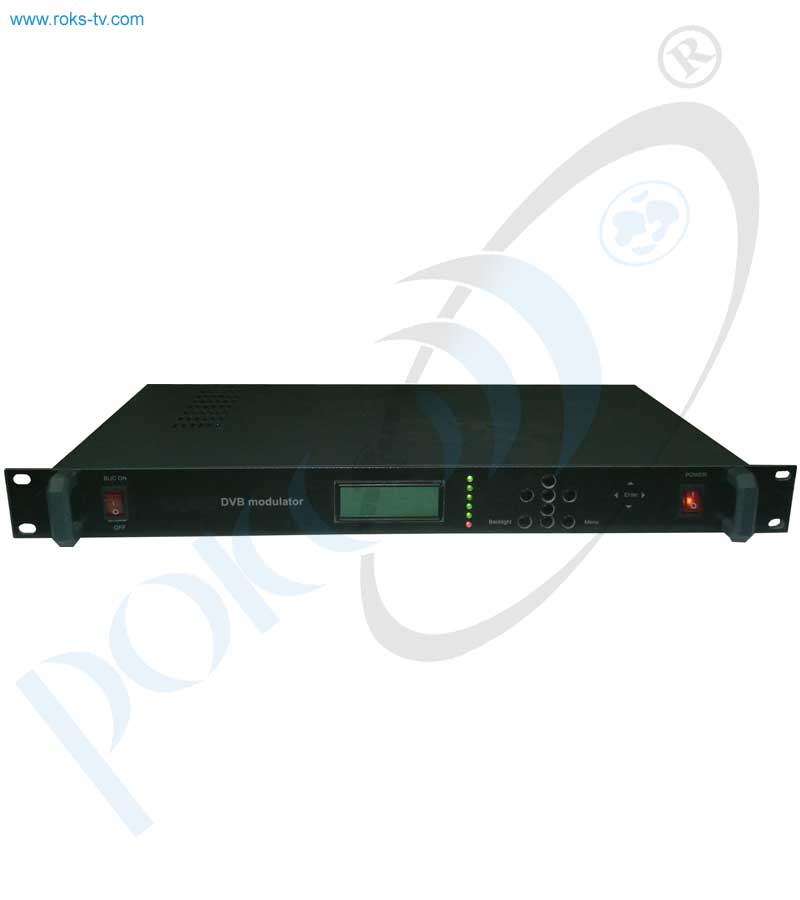

DVB-S2 / DVB-S Modulator unit is professional equipment for using by operators of television networks and performs modulation from QPSK up to 32APSK. Modulator has from 1 to 6 independent channels formed in a single housing 19” height 1U or 2U. This device performs modulation digital stream RF carrier frequency in a full L-band range (950 MHz-2150 MHz) according to the standards DVB-S, DVB-S2
KEY FEATURES:
- Frequency range: full L-band 950 - 2150 MHz
- Support DVB-S and DVB-S2 standards
- Constelation QPSK, 8PSK, 16APSK and 32 APSK
- Hight modulation error rate (MER) >27 dB
- Input bitrate 1–32 MSymbol/s in 1 kSymbol-steps
- Output level 80-107 dBµV
- Optionally 10 MHz reference and DC injection
| Inputs / Outputs | |
|---|---|
| Number of inputs, connector type | from 1 to 6 x ASI, BNC, Female, 75Ω 1 x RS-232, Control 1 x PS 220V, 50 Hz |
| Number of outputs, connector type | from 1 to 6 x IF, F-type, Female, 75Ω (N-type, Female, 50Ω - optional) |
| Modulation parameters DVB-S mode: | |
| Constellation | QPSK |
| Modulation Error Rate (MER) | >27 dB |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Symbolrate | 1–32 MSymbol/s in 1 kSymbol-steps |
| RFout (50Ω) | 80-107 dBµV |
| Modulation parameters DVB-S2 mode: | |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Modulation Error Rate (MER) | >27 dB |
| FEC (LDPC) | 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Symbolrate | 1–32 MSymbol/s in 1 kSymbol-steps |
| Roll-Off-Factor | 0.2, 0.25, 0.35 |
| Pilots | on/off |
| RFout (50Ω) | 80-107 dBµV |
| Signals injection | |
| 10 MHz reference | 10-6-10-8 stability (optionally) |
| Power injection | for the BUC 24V, 3А (optionally) |
| Adjustment | |
| LCD & Keyboard | for management, at the front panel (optionally) |
| RS-232 | at the rear panel |
| Power Supply | |
| Input Voltage | 110‐240 VAC, 50/60Hz |
| Power Consumption | 6W per channel |
| Environmental | |
| Operating Temperature | 0℃ to 45℃ (32℉ to 113℉) |
| Storage Temperature | ‐20℃ to 80℃ (‐4℉ to 176℉) |
| Operating Humidity | 90%, non‐condensing |
| Mechanical | |
| Dimensions (W x H x D) | 1RU: 483mm x 44.5mm x 450mm, 19’’ x 1.73’’ (1RU) x 17.7’’ 2RU: 483mm x 89mm x 450mm, 19’’ x 3.5’’ (2RU) x 17.7’’ |
| Weight | 1RU: 3Kg (6.6 lbs), 2RU: 6Kg (13.2 lbs) |
