New L-band amplifier

Date: 13.02.2017

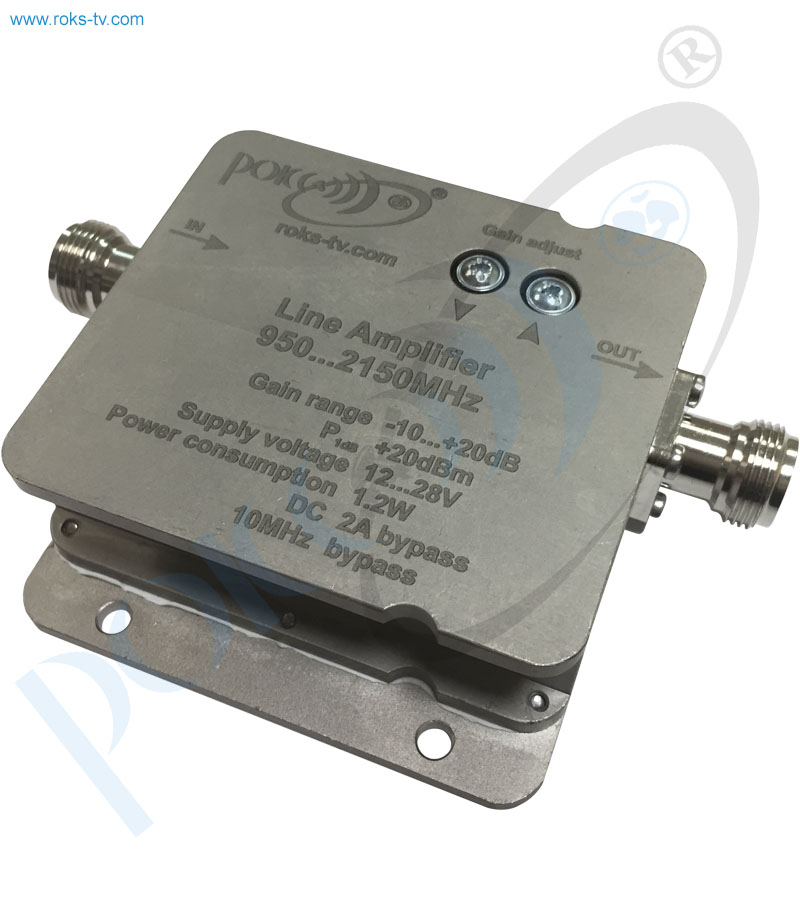

ROKS is glad to propose You our new L-band amplifier with adjustable Gain and high output level (P1dB=+20dBm) intended for signal loss compensation at long coaxial connections or boosting a weak L-band signal from passive dividers/combiners.

ROKS company is glad to propose You our new L-band amplifier with adjustable Gain and high output level (P1dB=+20dBm) intended for signal loss compensation at long coaxial connections or boosting a weak L-band signal from passive dividers/combiners.

KEY FEATURES:

  • Output power at P1dB: +20 dBm
  • Frequency range: 950 .. 2150 MHz
  • Adjustable gain: -10 .. +20 dB
  • Digital gain adjustment with 1 dB step
  • DC supply by coaxial cable
  • DC bypass: up to 2A
  • 10 MHz bypass

Also, it features an easy access to controlling buttons, saving case hermetization and high Gain linearity at full frequency band at any Gain level.

In MVDS systems without AGC (automatic gain control) it can also be a good way to control output power from BUC.

More details You can get here or download PDF.

Sure, for the first examples and next orders, after testing, we will offer our best prices ;)
