Repeater

  • Description
  • Downloads

A repeater is designed to re-translate input signal without any changes. It allows to cover nLOS area without building a new Head-End and dramatically extend the service zone. A repeater is fully compliant with our links. Thus, it makes it easy to reach remote areas in the most efficient way.

Characteristics

Parameters

Value

Type

Link or Broadcasting

Frequency range, GHz

1 to 40

Standards

DVB-S/S2/C/T/T2

Number of carriers

1 to 25 with equalizing (optional)

Repeat mode

without processing or

with regeneration

Alternation

by frequency (rec. and trans.)

by polarization (rec. and trans.)

Built scheme

individual

Monitoring and management

remote (optional)

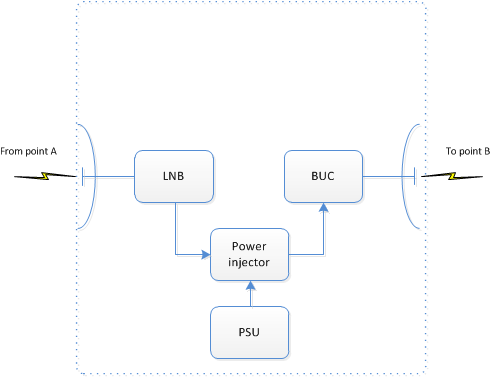

Repeater Point to Point Schematic

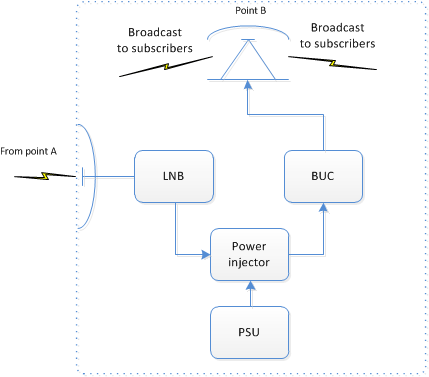

Broadcasting Repeater Schematic
