SSA-CV60 v1

  • Description
  • Parameters
  • Media
  • Downloads

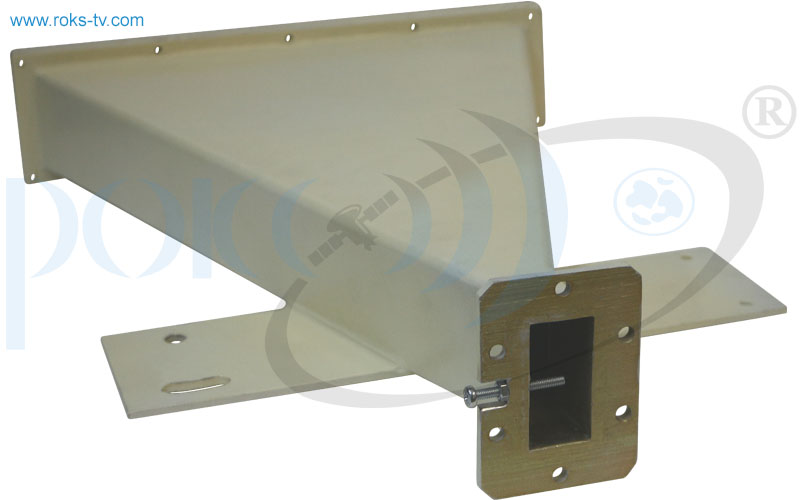

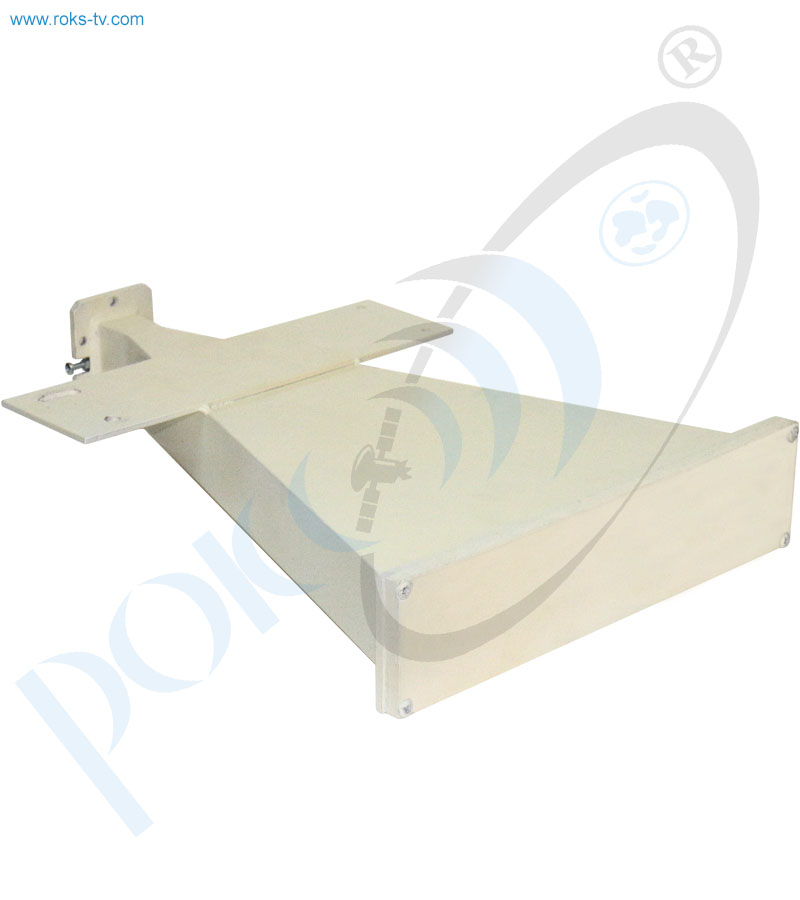

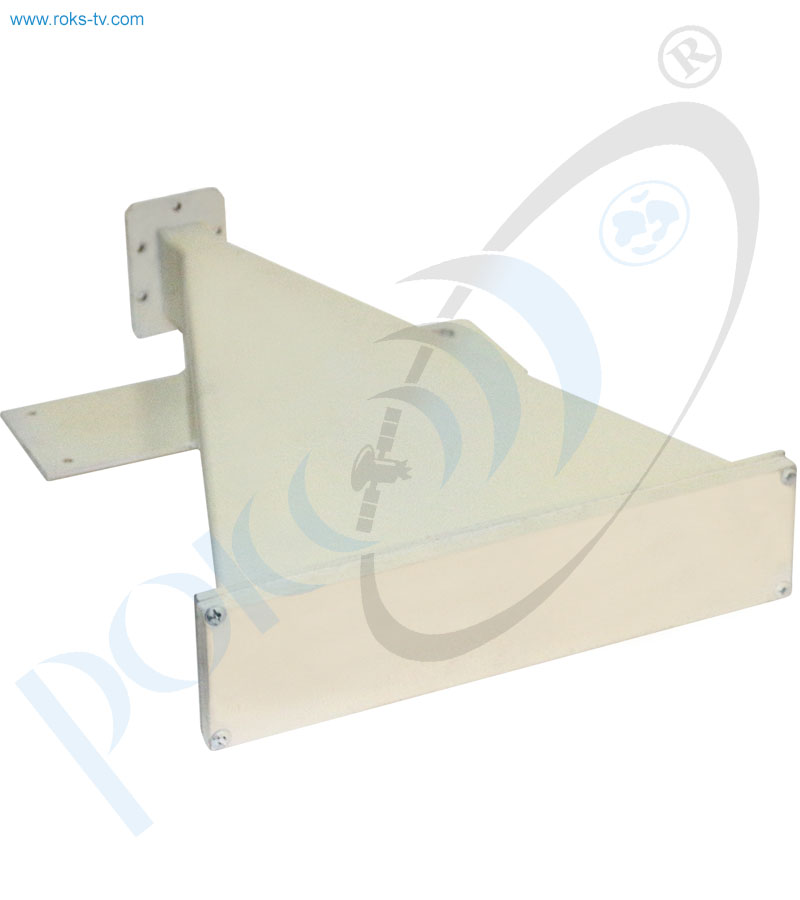

Short Sector Antenna C-band with the angle of antenna aperture in the vertical plane 60 degree and a wide frequency range (3.94 - 5.99 GHz).

Purposes: transmitting and receiving signals in C-band, as a part of central broadcasting station or repeater, interactive microwave system or video surveillance system.

ParameterValue
Frequency range, GHz 3.94 - 5.99
Gain, dBi 10
VSWR 2.1
Polarization vertical
Cross-polarization isolation, dB 23
HPBW:
@horizontal   60°
@vertical 20°
Side-lobe level relative to the main beam, dB
Gain range in aperture, dB ±1
Temperature range, °C -50 to +80
Humidity 100% where 25°C
Size, mm 306х86х420
Weight, kg 3.2
Directional diagram tuning, deg:
 Elevation angle  ±30
 Azimuth ±360
Mounting Installation on the pipe diameter up to 45 mm
Input power, W 20
Body Dust/moisture proof


Documentation
