SWA-CH360 v2

  • Description
  • Parameters
  • Downloads

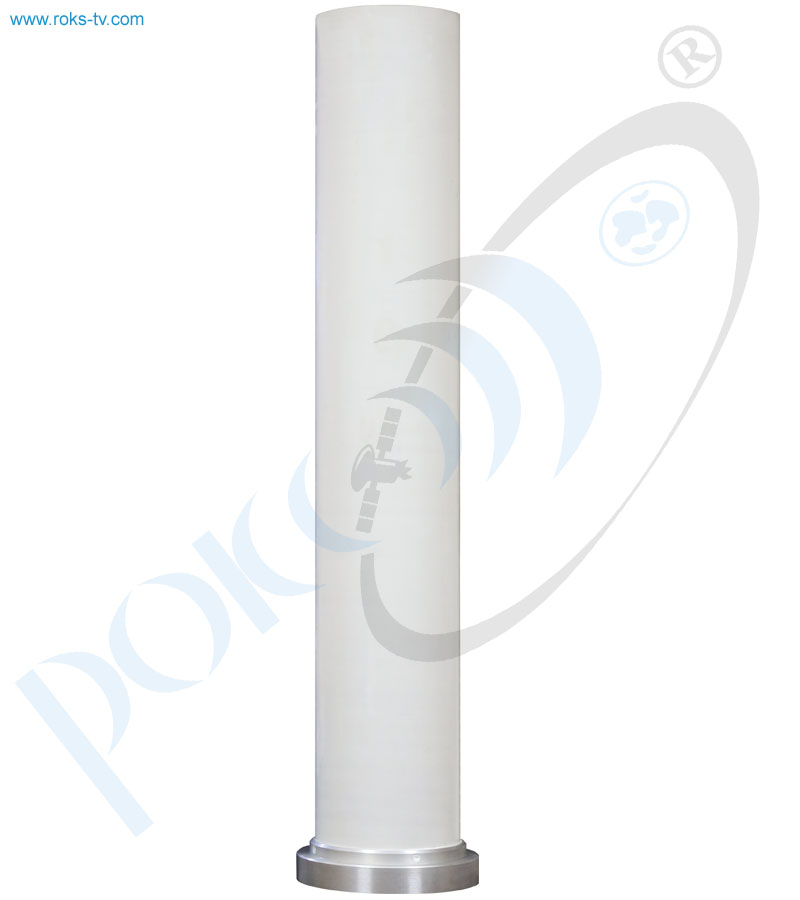

C-band OMNI SWA has compact dimensions, can be installed with minimal visibility and windage. Signal transmitted by such antenna can be received by typical C-band SAT dish and LNB 3.4-4.2GHz.

KEY FEATURES:

  • Radiation pattertn: 360 deg
  • Gaine: 13 dBi
  • Compact dimensions



 ParameterValue
Frequency range, GHz 3.4 - 4.2 (any 300MHz of this range)
Gain, dBi, at least 13
Gain variation in the aperture, dB, not more ±2
VSWR, max 2
Polarization Linear, horizontal, vertical (by order)
Cross-polarization, dB, not less  25
HPBW:
@horizontal 360°
@vertical 7.9°
Input power, W, to 20

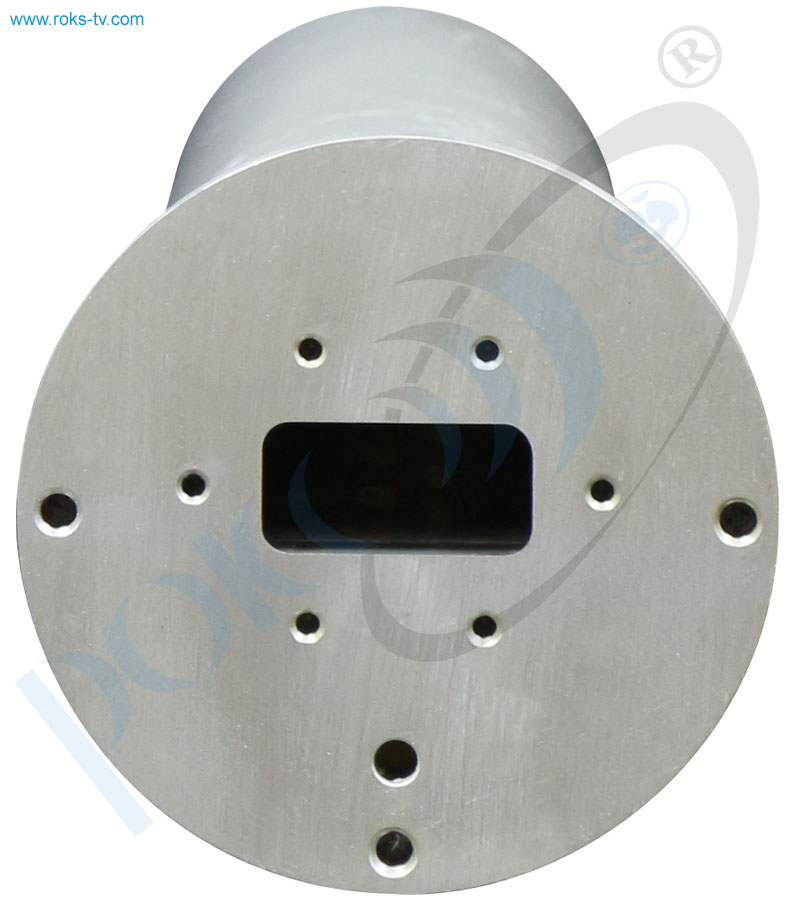

Waveguide  WR-187/WR-229
Operating temperature, ° C -40 до +80
Humidity 100% @ 25°C
Dimensions, mm, not more  20x60x1000
Weight, kg, not more  5

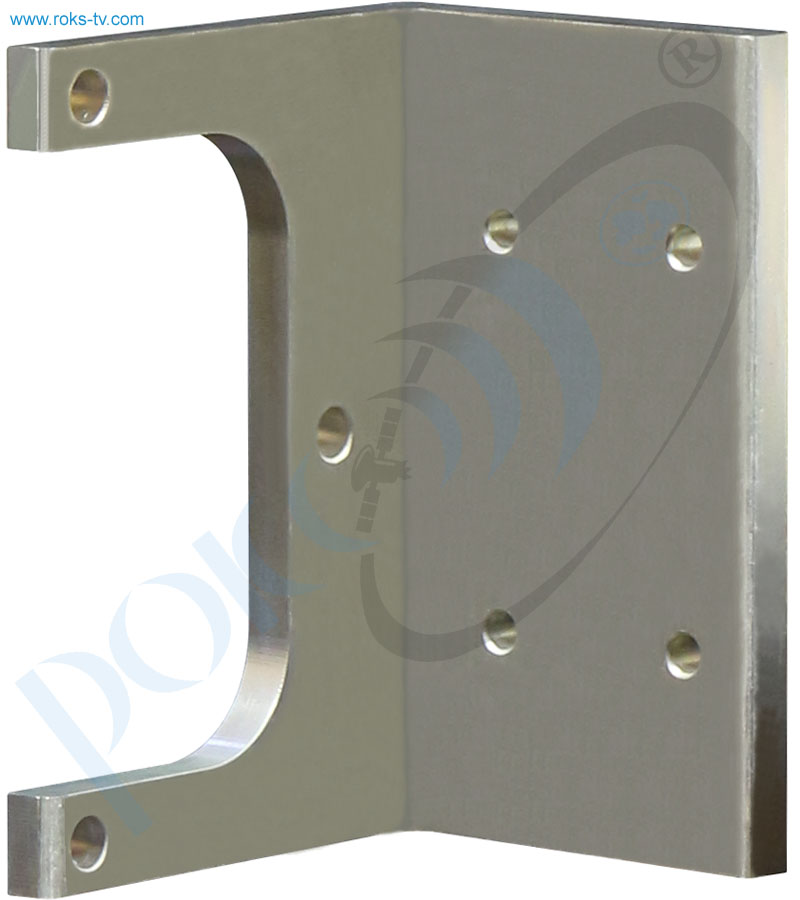

Mount Mounting on a vertical pipe with a diameter of 40mm
Casing material dust/moisture proof


Documentation
