LSA-KuV90 v2

  • Description
  • Parameters
  • Downloads

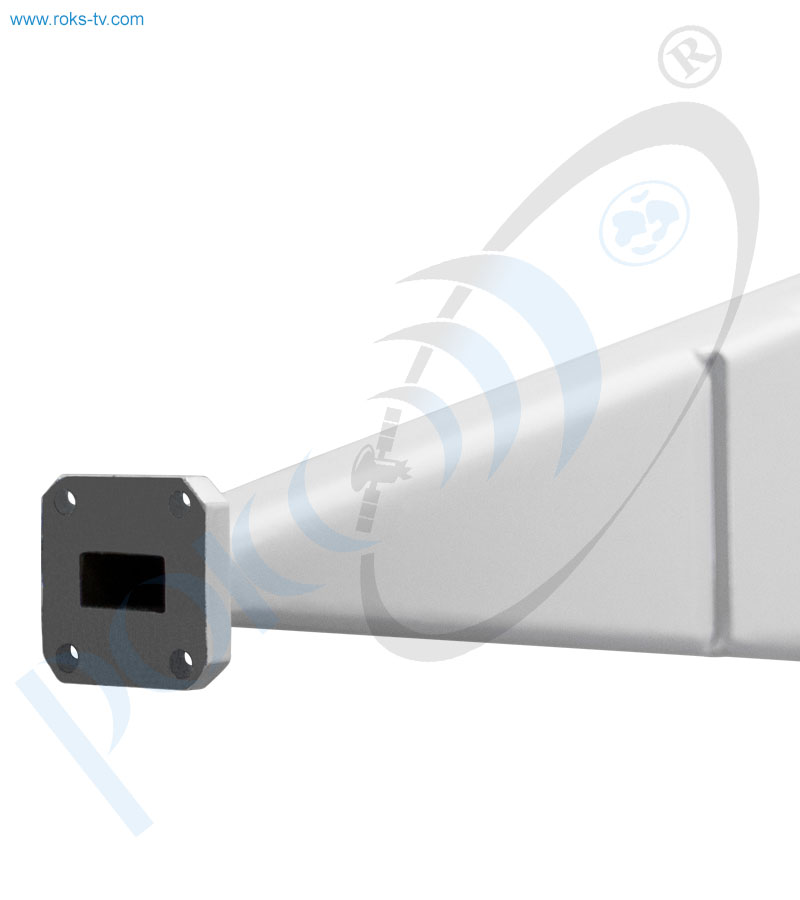

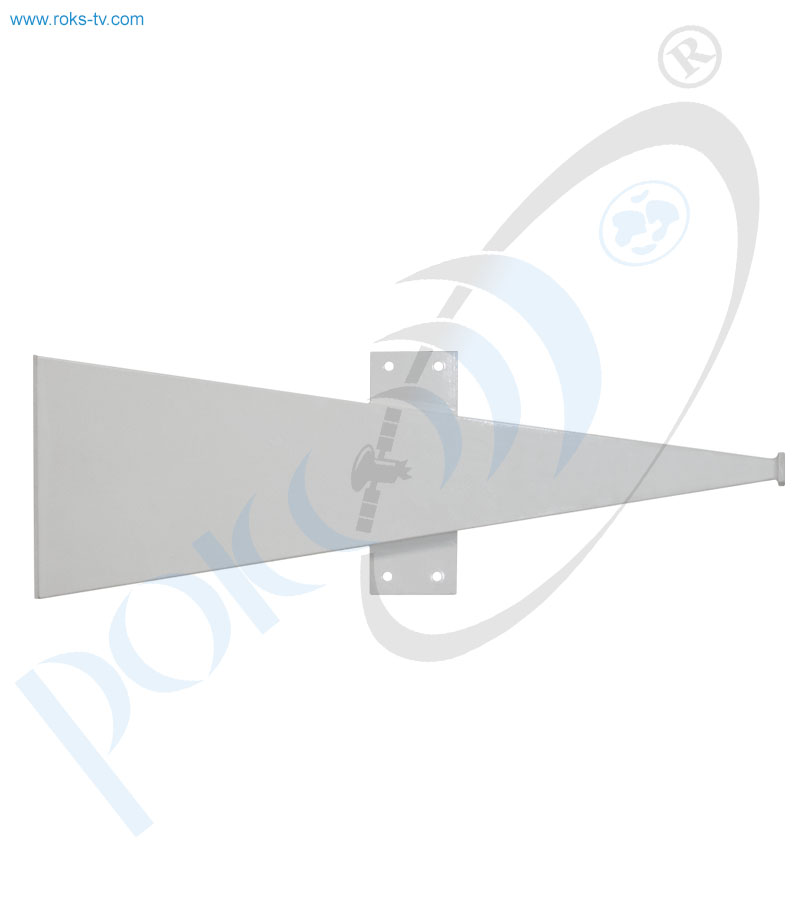

Long sector Antenna Ku-band with the angle of antenna aperture in the vertical plane 90 deg and a wide frequency range (10.7 - 13.5 GHz).

Purposes: transmitting and receiving signals in Ku -band, as a part of central broadcasting station or repeater, interactive microwave system or video surveillance system.

ParameterValue
Frequency range, GHz 10.7 - 13.5
Gain, dBi 18
VSWR 2
Polarization vertical
Cross-polarization isolation, dB 25
HPBW:
@horizontal   90°
@vertical
Side-lobe level relative to the main beam, dB
Gain range in aperture, dB ±1
Temperature range, °C -50 to +80
Humidity 100% where 25°C
Size, mm 820х60х300
Weight, kg 3.1
Directional diagram tuning, deg:
 Elevation angle  ±30
 Azimuth ±360

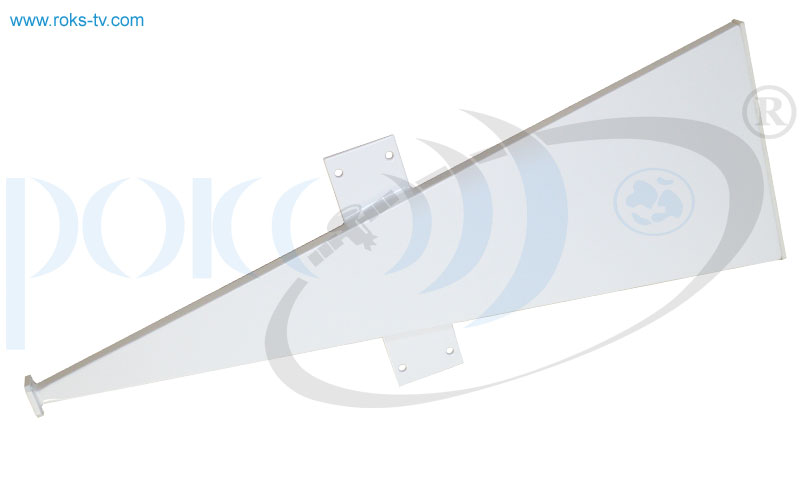

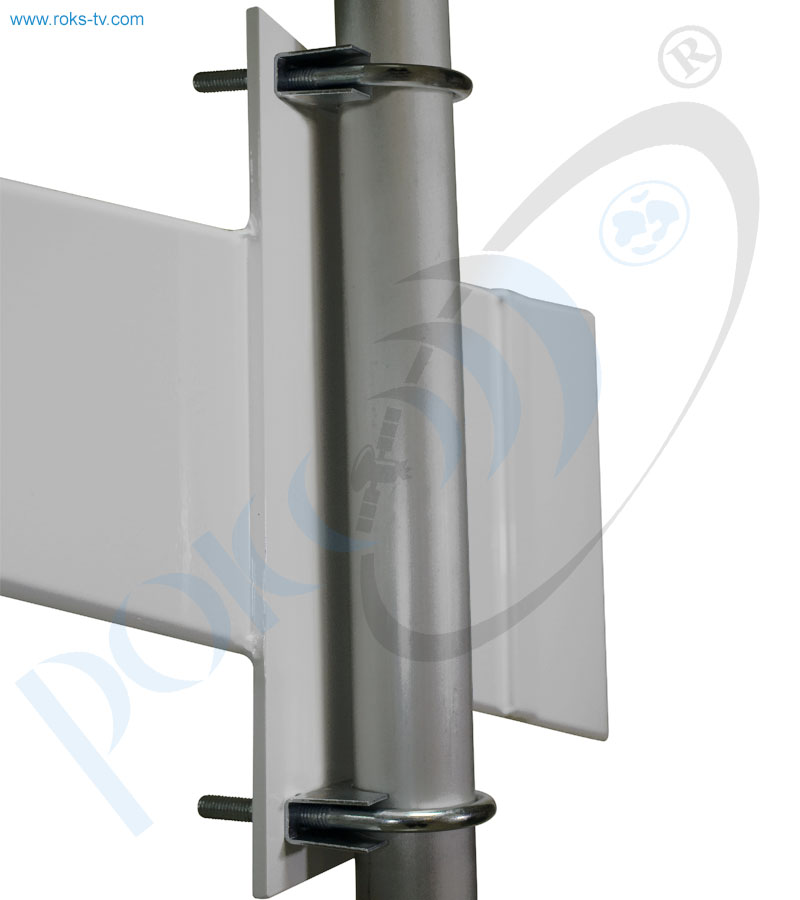

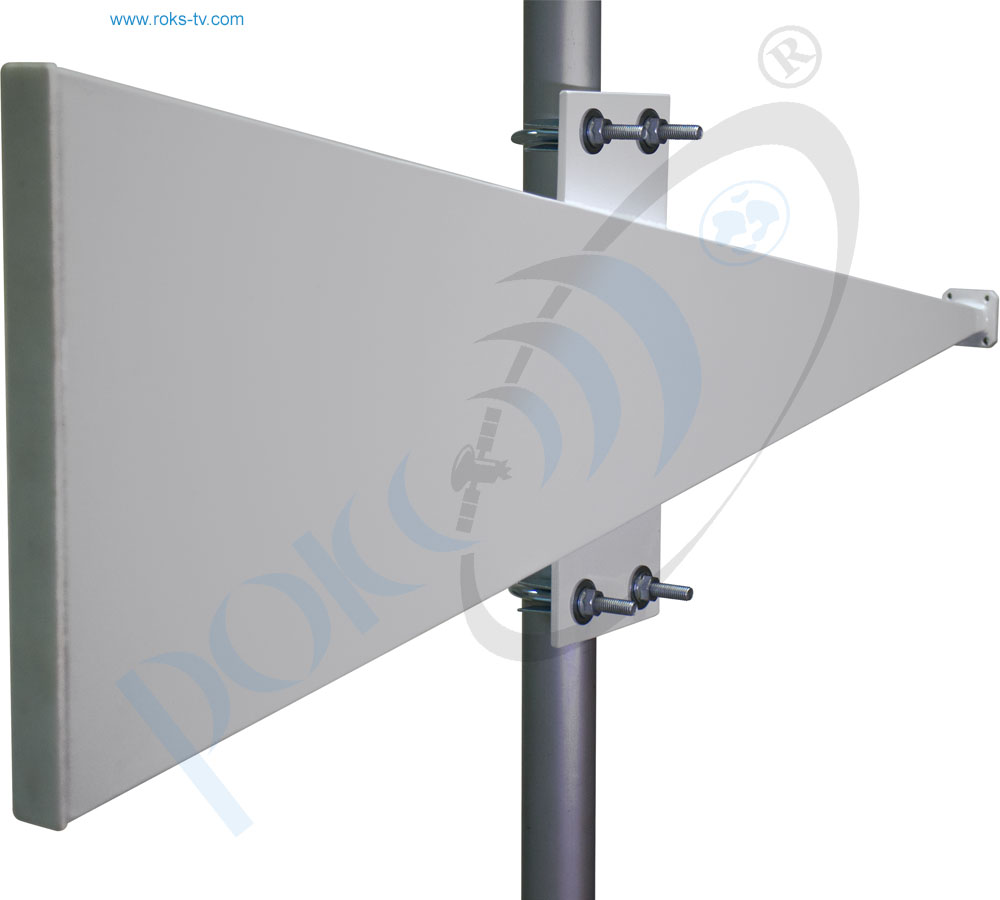

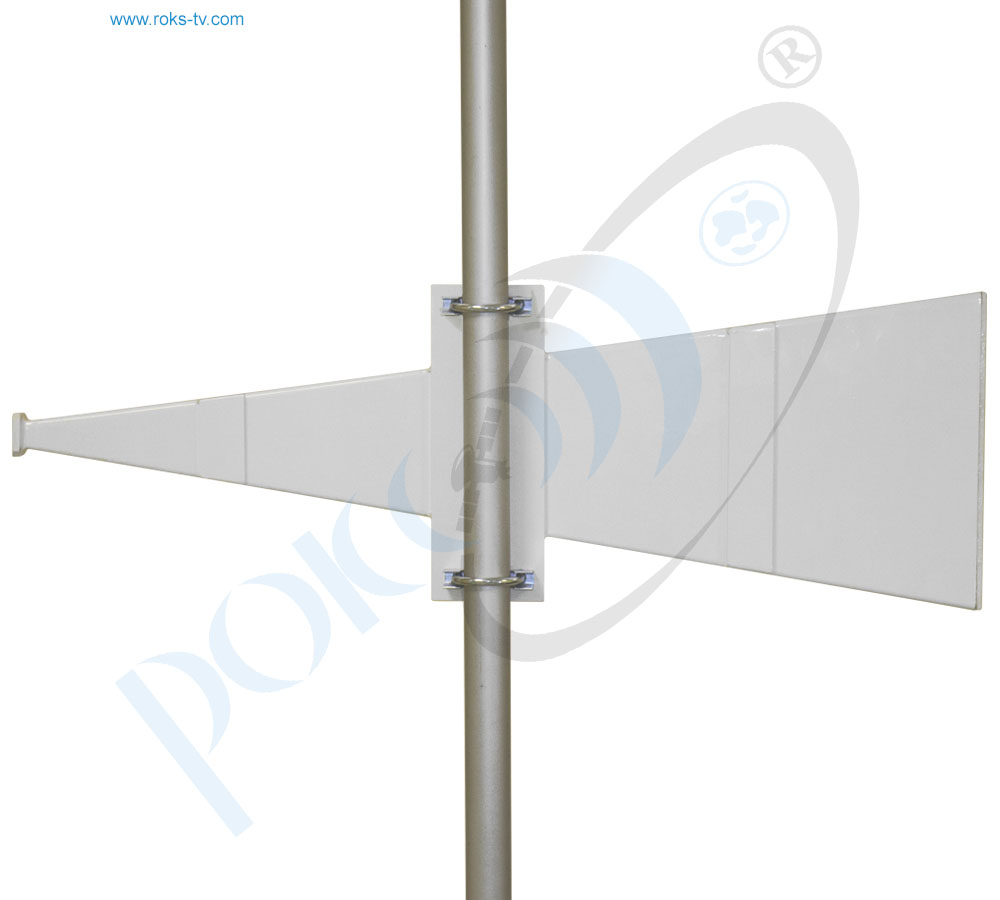

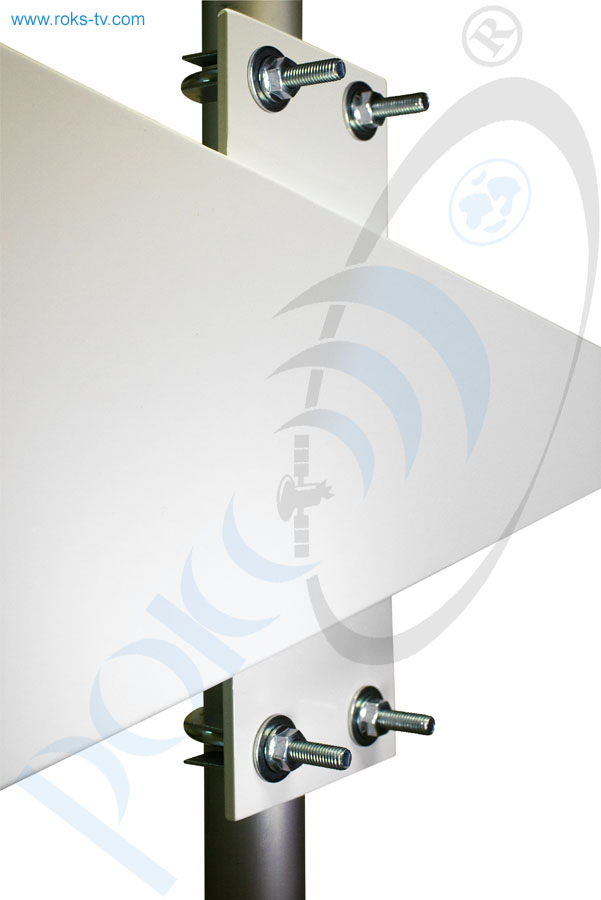

Mounting Installation on the pipe diameter up to 45 mm
Input power, W 20
Body Dust/moisture proof
