Protected DC injector

  • Description
  • Parameters
  • Downloads

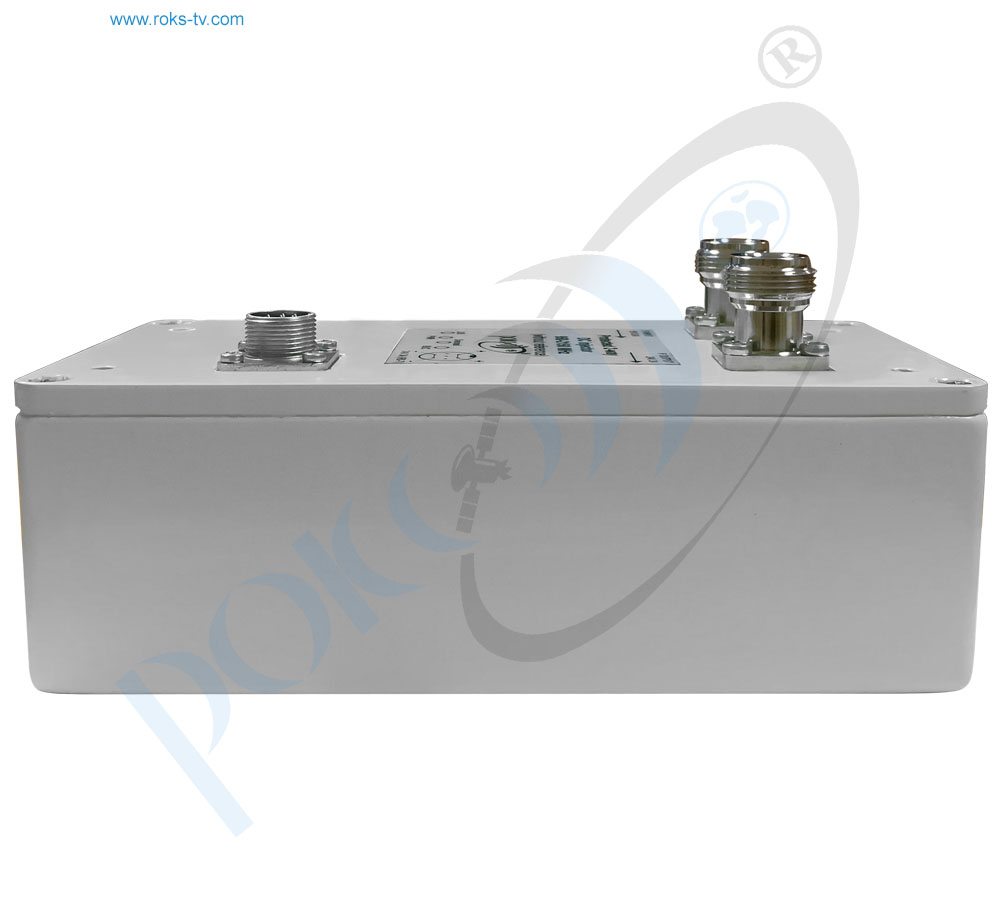

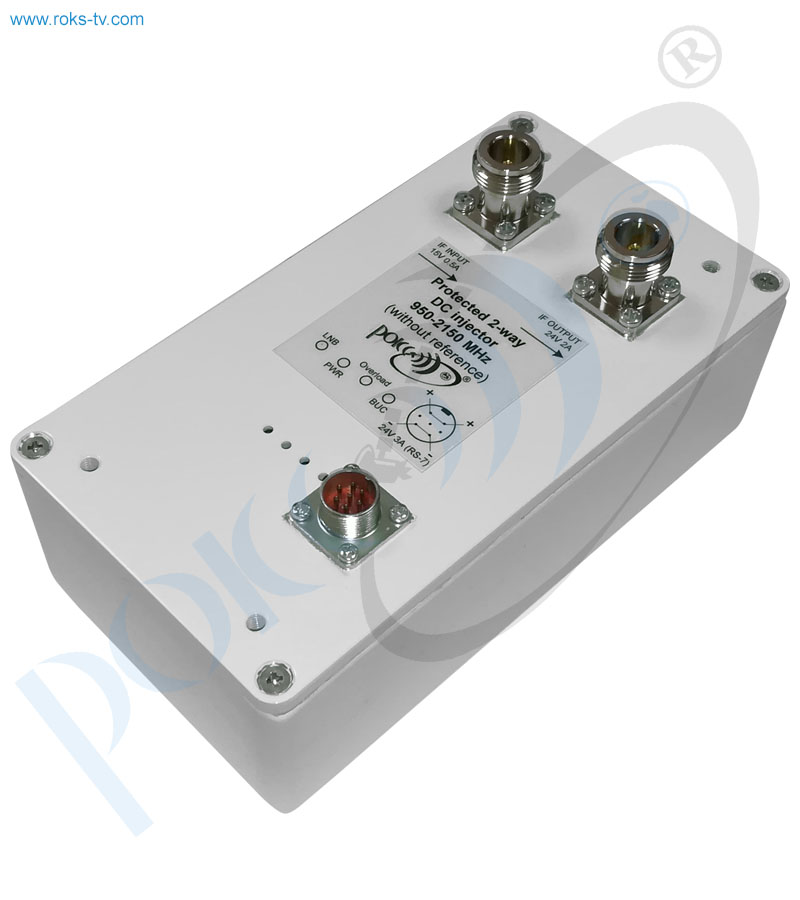

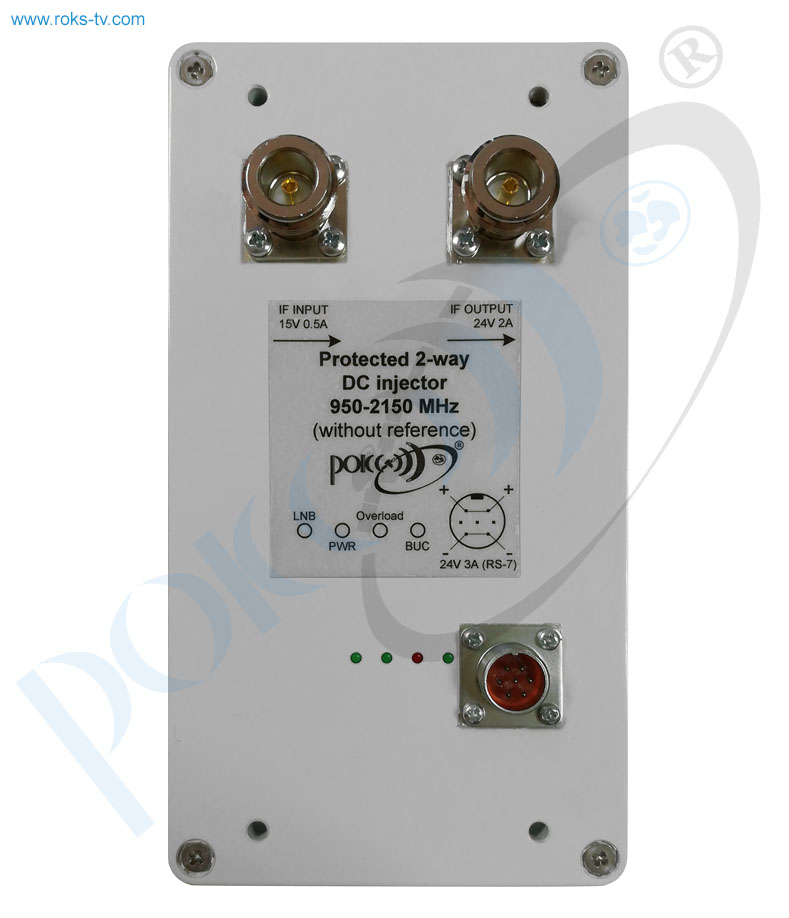

Injector-Regulator is an active radio relay station outdoor component, designed to provide the power supply for both the RRS receiver and the RRS transmitter via radio-frequency cable that connects receiver and transmitter. moisture and dust proof mono-block designed for using outdoor (ODU).

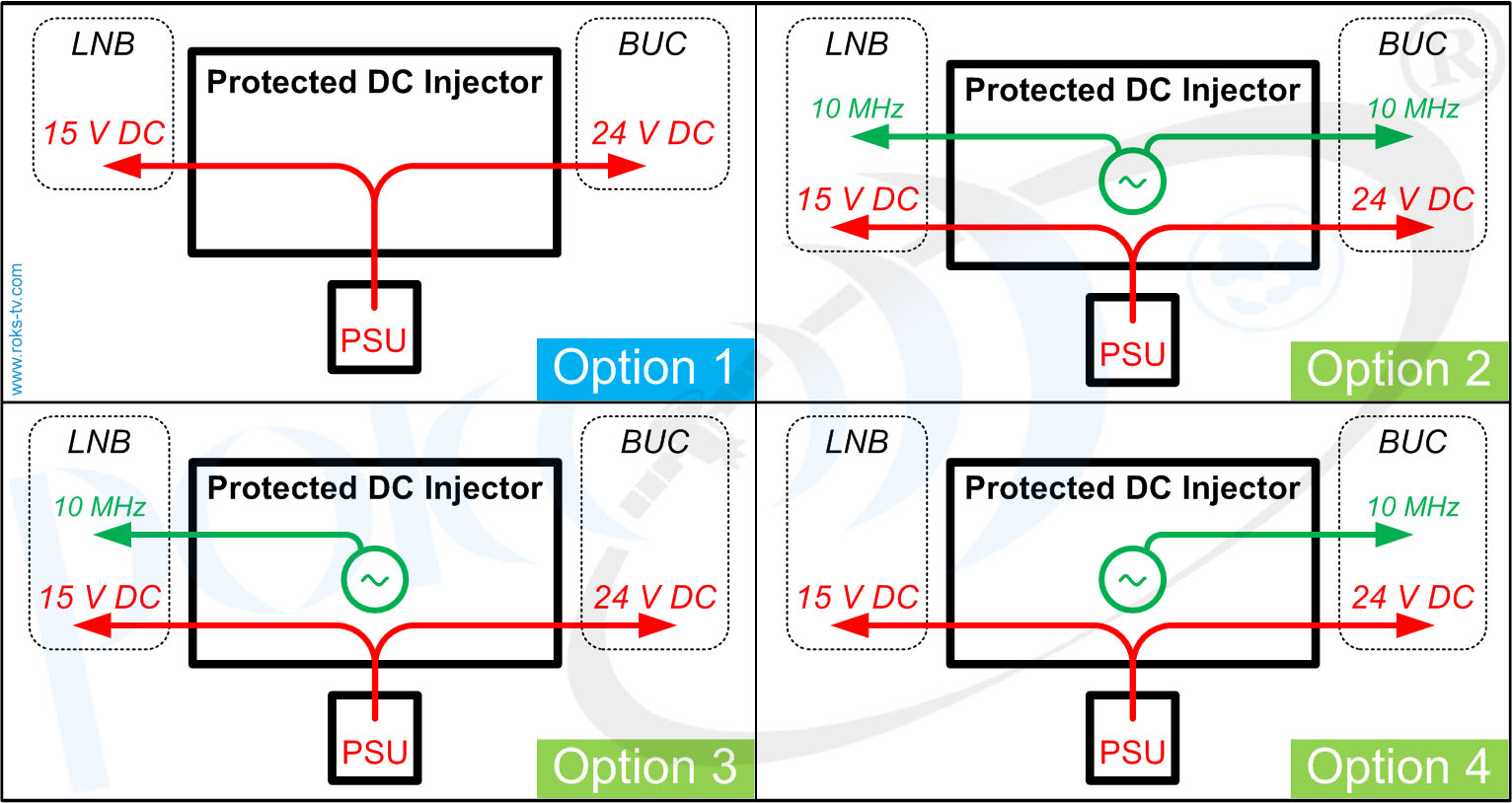

Injector-Regulator is connected into the receiver-transmitter cable gap and provides independent power supply by voltages of the down-converter of receiver and the up-converter of transmitter. There is a possibility of switching a receiver polarization remotely (by separate cable) as well as switching the transmitter on/off.



Name

Value

Operating frequency range, MHz

950-1750

Input/output Impedance, Ohm

50

Inputs and outputs VSWR, no more than

1.8

Gain factor unevenness in the operating frequency range, dB, no more than

3,0

Remote control (ALC) power level range at the output, dBmkV

70 - 100

Maximum level of the modulated signal on an input, dBmW, no more than

-10

Range of an automated level regulating, dB, not less

+/- 10

General supply voltage, VDC

24±0,2

BUC regulated supply voltage, VDC

24±0,2

BUC maximum current, A

2.0

LNB regulated supply voltages, VDC

+15

LNB maximum current, А

0.5

Reference signal frequency, MHz

10

Reference signal level on an input and output, dBm

-5…+5

Reference signal relative stability, ppm

2.5

Dimensions, mm

155х114х55
