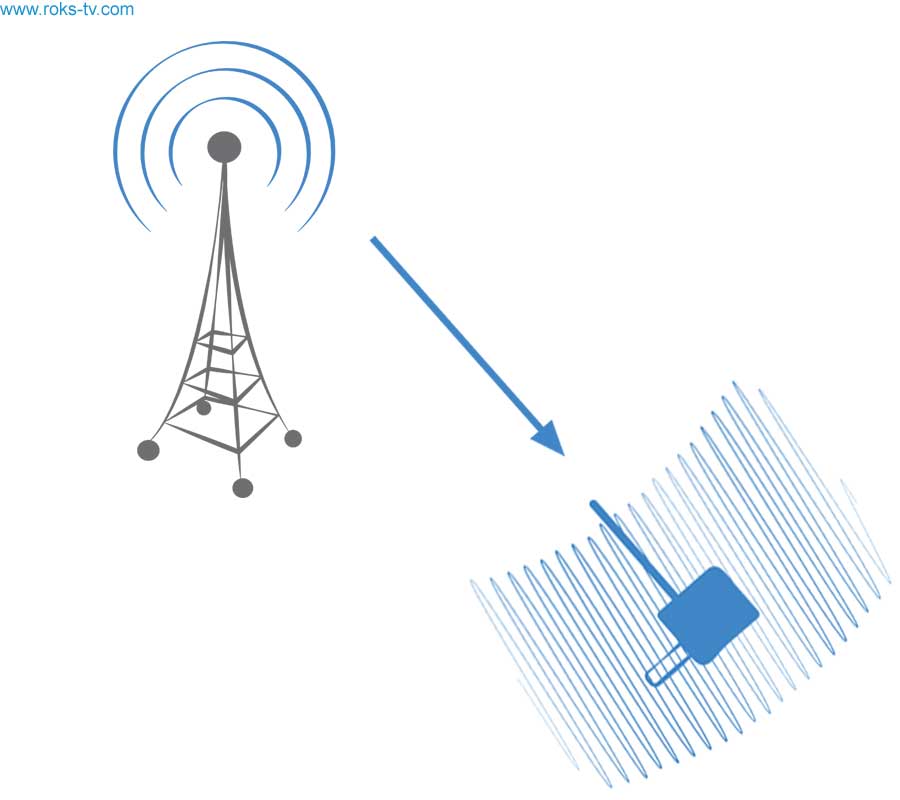

MMDS (Multichannel Multipoint Distribution Service) is traditionally referred to as "cable TV with no cable". MMDS system has a limited number of channels, which involves the use of relatively low frequency range of 2.5 -2.7 GHz and occupies frequency bandwidth of only 200 MHz. The maximum number of TV channels within bandwidth of 6 MHz depends on channels bitrate and can reach 20+. Video signal, transmitted in such a system, is similar to traditional broadcasting systems in the VHF and UHF bands which has the amplitude modulated by video signal carrier. For this reason, analog MMDS systems require relatively high-power linear transmitters. In the transition to digital broadcasting the existence of such linear transmitter is very useful because in digital MMDS signals are used standards DVB-T and DVB-C which also require a linear mode of transmitter operation. DTV coming greatly improved the abilities of MMDS - now it is possible to transmit more than 100 DTV channels in 200 MHz range.

ParameterMMDS (S-band, C-band)
Operation frequency range, GHz  2.0 - 7.5
Broadcasting standards  DVB-C or DVB-T
Modulation types  QAM16/32/64/256 or COFDM
Coverage zone with one transmitter  up to 30 km
Repeater Hops without regeneration  up to 2
Repeater Hops with reregeration unlimited
Cost of user's equipment  A bit more expensively than the satellite complete set for reception
A possible way to receive  individual and collective

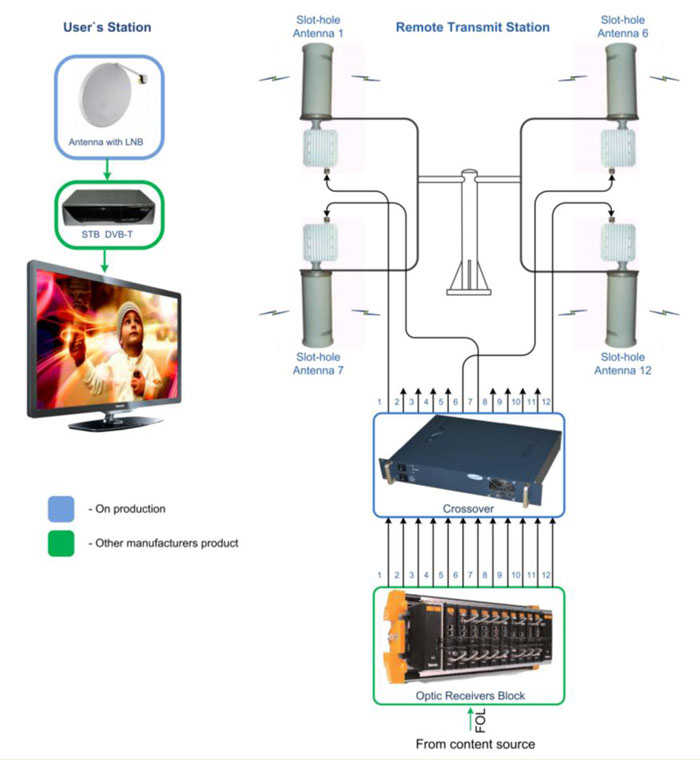

For MMDS systems we recommend a proprietary architecture that allows you to use few relatively low-power transmitters with the individual transmitters signals frequency division multiplexing instead of one powerful transmitter in propagation medium possibility (the Ukrainian Patent № 54644). We also offer a new system architecture that allows you to eliminate areas of shading, resulting in transmitting signals to the multi-carrier TV system MMDS. The proposed co-channel repeaters are more efficient than traditional Gap Fillers (the Ukrainian Patent № 54275).
