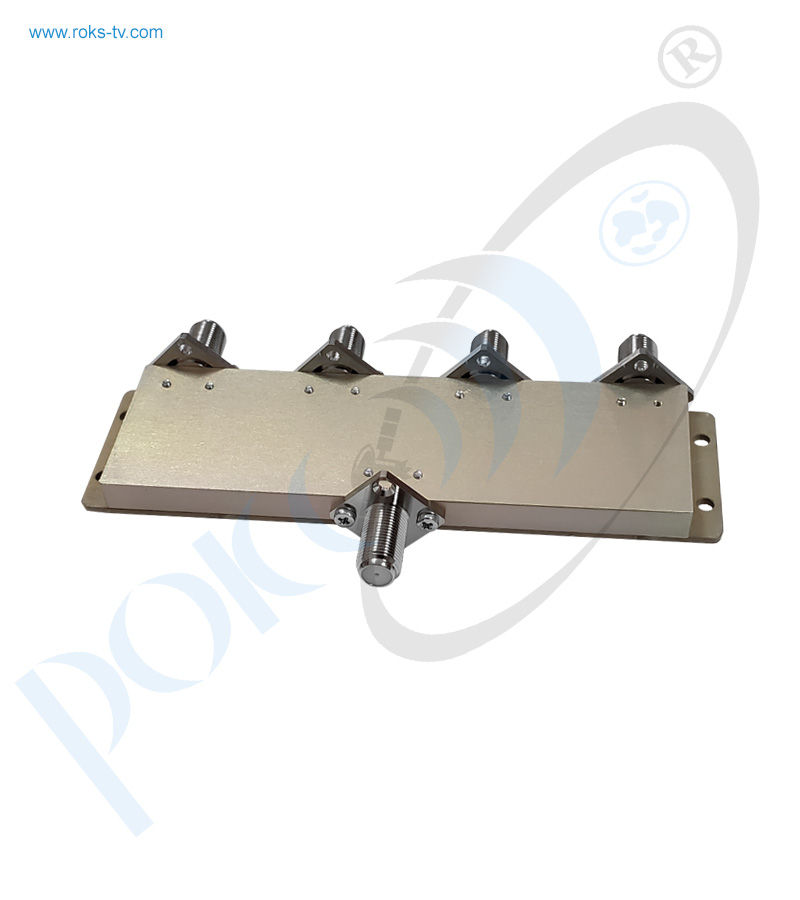

4-way passive RF divider 950-2150 MHz
This 4-way passive RF divider has 1 F-type input connector and 4 F-type output connectors. Working band: 950-2150 MHz
- Description
- Parameters
- Downloads
KEY FEATURES:
- working frequency band: 950-2150 MHz (full L-band)
- good isolation: 30 dB
- low insertion loss: up to 1 dB
| Frequency range, GHz | 0.95-2.15 |
| Numer of input connectors | 1 |
| Input connector type | F |
| Numer of output connectors | 4 |
| Output connector type | F |
| Connector resistance, Ohm | 75 |
| Isolation, dB | 30 |
| Insertion loss, dB, max | 1 |
Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
