Active 8-ch L-band Power Divider is designed for uniform division of the power of the group multifrequency signal of the satellite IF (950-2150 MHz) into 8 equal parts. Broadband low-noise amplifiers with large dynamic range are used for losses compensation in bridges.
KEY FEATURES:
- broadband low-noise amplifiers with large dynamic range are used for losses compensation in bridges
- high output power linearity (low intermodulation distortions)
- high output signal stability
- branches of Wilkinson multistage bridges are used for power division

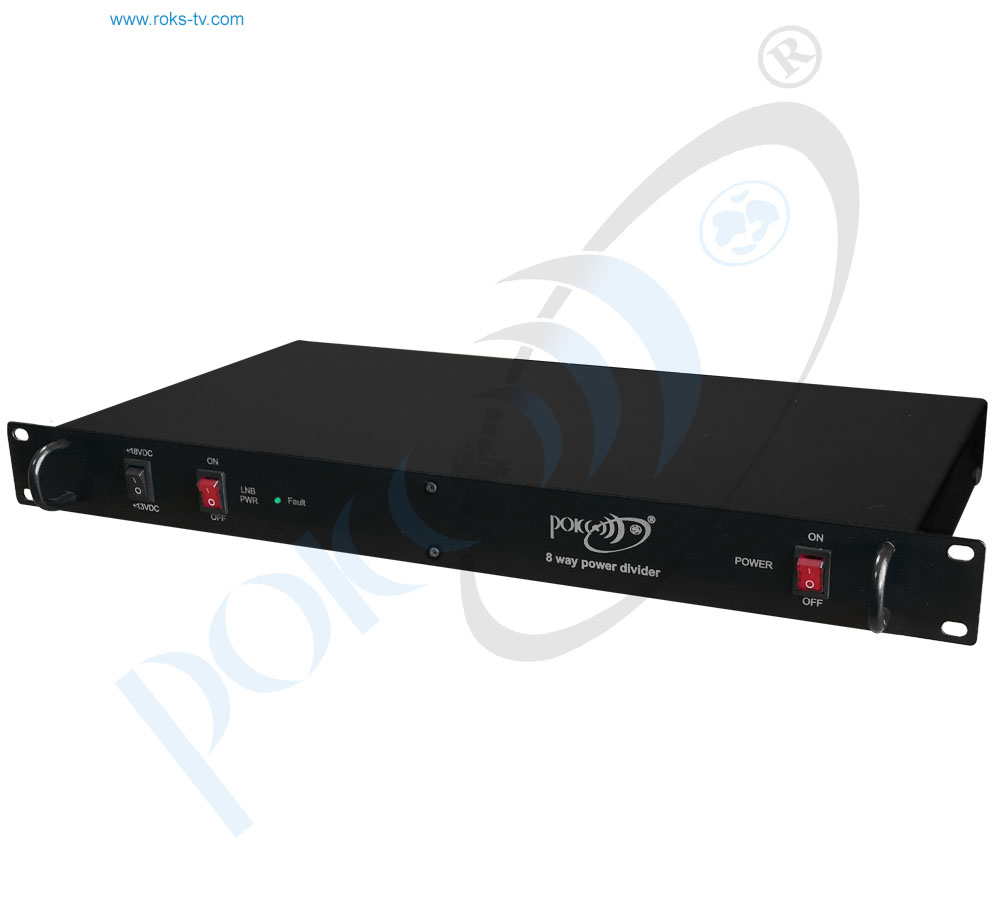

All modules of the Active 8-ch L-band power divider, including power supply, are placed in a standard 1U case for mounting into 19" rack. The input and output connectors of the Active 8-ch L-band Power Divider are located on the rear panel. The main type of connectors is SMA (socket). The options include the use of BNC (50 Ω), BNC (75 Ω) or F-type (75 Ohm) connectors.
We may provide such additional requirements by advance order:
- Input impedance of 50 or 75 Ohms.
- Connector types: SMA, BNC, F.
- Input voltage injection for LNB power supply.
| Parameter, unit | Parameter value |
|---|---|
| Working frequency range, MHz, not less | 950 - 2150 |
| Gain coefficient, dB, not less | 0…+2 |
| Flatness of gain coefficient at all working frequency range, dB, not more | +/- 2 |
| Flatness of gain coefficient at 36 MHz range at any part of working band of 950-2150 MHz, dB, not more | +/- 0.5 |
| Input VSWR, not more | 1.8 |
| VSWR at any output, not more | 1.8 |
| Power P1dB at input, dBm, not less | -5 |
| Maximum effective power of group signal, dBm, not less | -15 |
| Noise factor, dB, not more | 5 |
| Operating supply voltage, V | 220, 50 Hz |
| Power consumption, W, not more | 25 |
