C / Ku band multi-polarization antenna feed OMT with frequency range selector

C / Ku band multi-polarization antenna feed OMT with frequency range selector

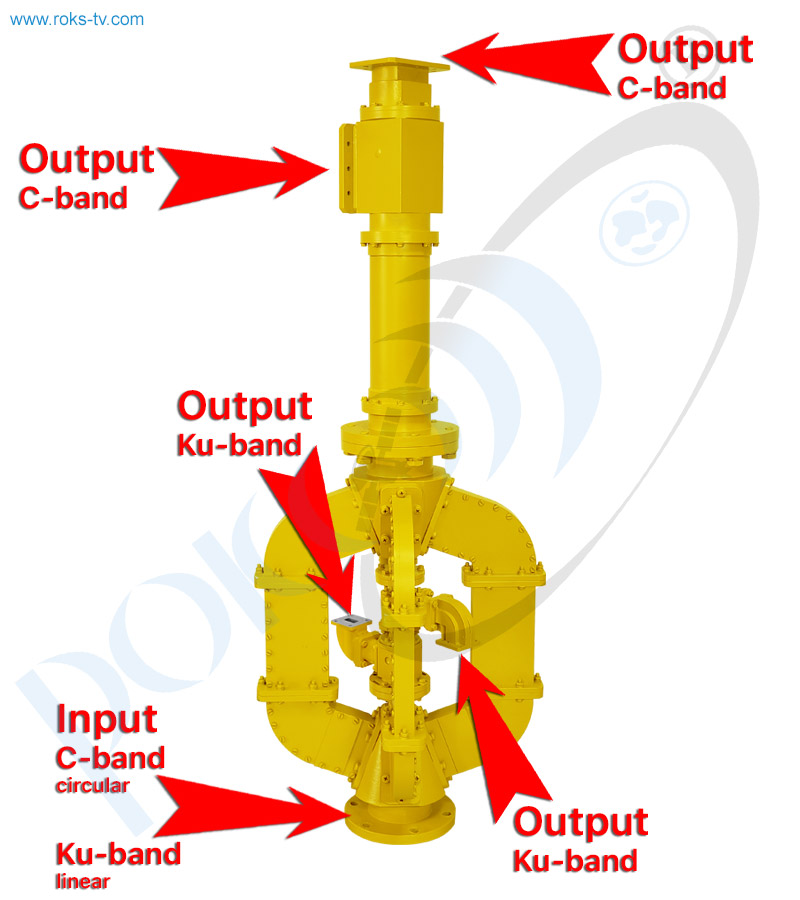

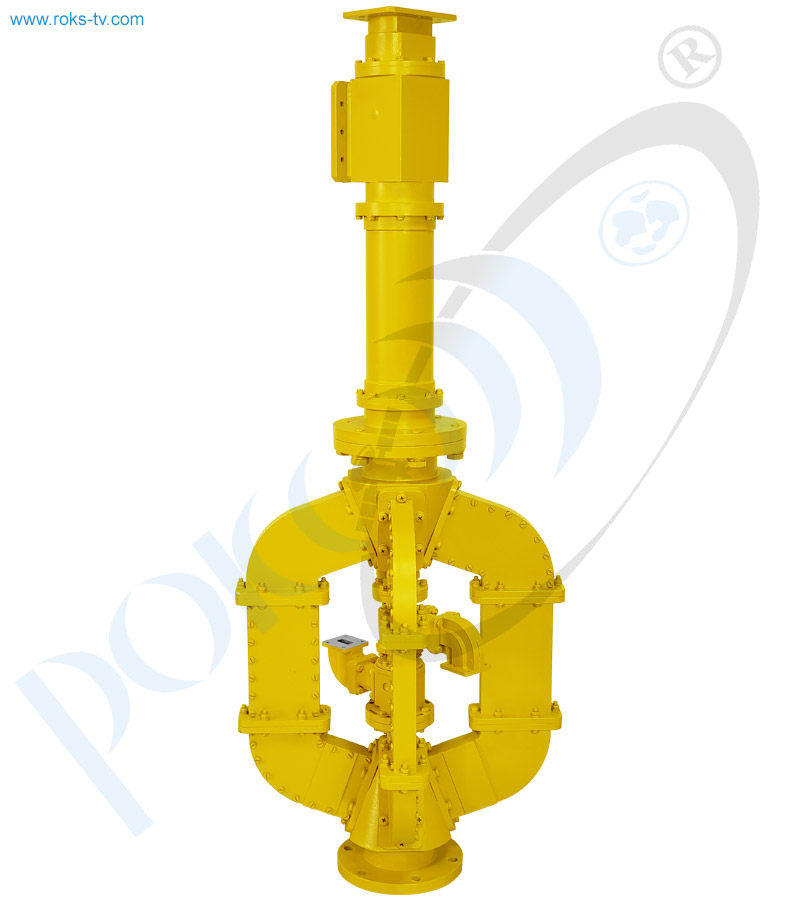

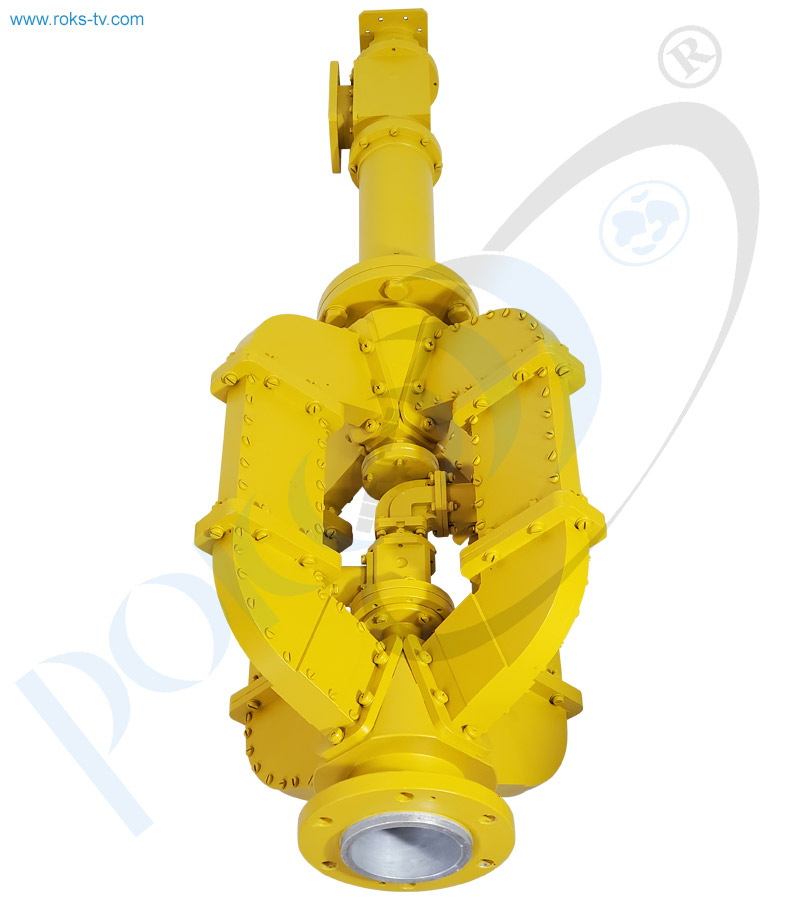

This antenna feed provides simultaneous reception of signals of two opposite circular or two orthogonal linear polarizations in the range of 3.4 - 4.2 GHz and two opposite circular or two orthogonal linear polarizations in the range of 10.7 - 12.75 GHz

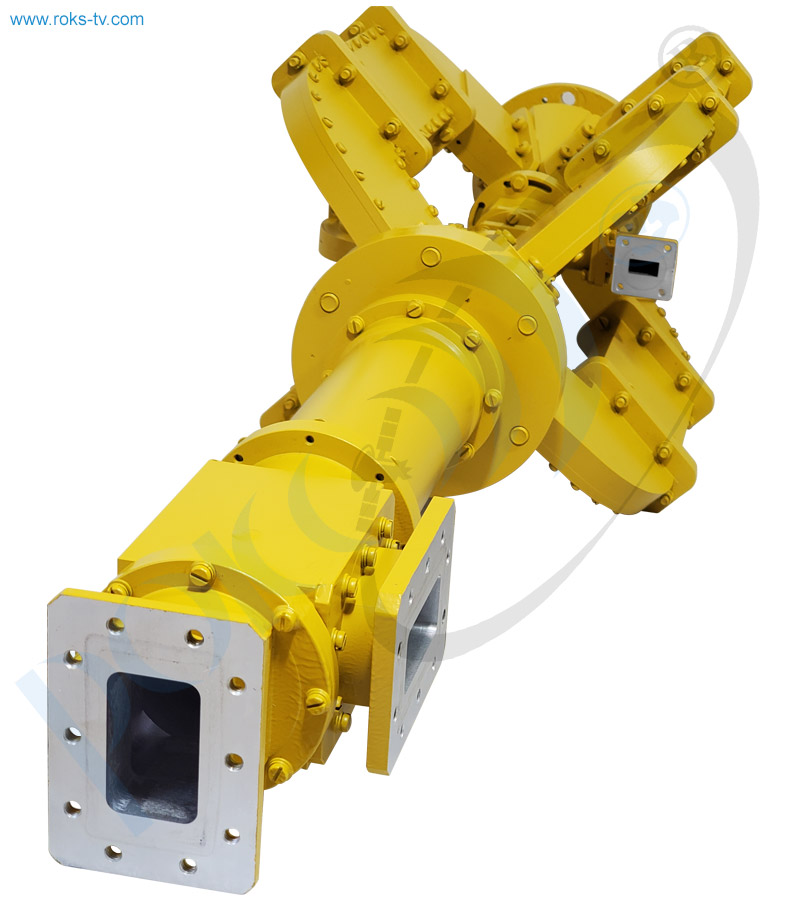

The outputs of the microwave converter units can be made connected to the WR-229 flange (accordingly to the range of 3.4 – 4.2 GHz (2 outputs)) and WR-75 (the range of 10.7 – 12.75 GHz (2 outputs)).

C / Ku band multi-polarization antenna feed OMT with frequency range selector is compatible with the antenna system, and the antenna feed must be coordinated in terms of the angles and levels of subreflector, the constructive solution of the device should ensure that antenna feed is installed in the focus of the antenna system!

Main parameters

• VSWR on device outputs:
  • in the range of 3.4 - 4.2 GHz: no more than 1.4;
  • in the range of 10.7 - 12.75 GHz: no more than 1.4.
• Total losses, dB:
  • in the frequency range of 3.4 - 4.2 GHz: no more than 0.4;
  • in the frequency range of 10.7 - 12.75 GHz: no more than 0.4.
• Polarization resolution, dB:
  in the 3.4-4.2 GHz frequency range:
  • circular: not less than 25.7;
  • linear: not less than 30.7.
• Polarization resolution, dB:
  in the frequency range of 10.7 – 12.75 GHz:
  • circular: not less than 25.0;
  • linear: not less than 30.0.

The device set must function normally and maintain its characteristics during operation under the following environmental conditions:

•  ambient air temperature range from -40 to +50ºС;
•  relative air humidity up to 95% at 25°C;
•  atmospheric pressure 630 - 800 mm Hg;
•  wind speed up to 55 m/s.
