Control board 16ch

  • Description
  • Parameters
  • Downloads

Control board 16ch is intended for management, configuration and monitoring of DVB-S / S2 receiver modules, DVB-C / DVB-S / DVB-T and DVB-S2 / DVB-S / DVB-T modulators, IP-to-DVB and DVB-to-IP gateways with PC through the Ethernet interface and the TCP / IP protocol using specialized program.

Control board 16ch can be used for making various digital broadcasting equipment.

The internal software of the Control board can be updated via Ethernet.


  • Control board provides remote access over Ethernet to all connected devices
  • Interface: 10/100 Base-T
  • Full/Half Duplex Modes: Auto-negotiation/manual
  • Input connector: RJ45
  • Protocol: TCP/IP
  • Count of managemented boards: 1…16
  • Supply voltage: 8…18 V
  • Power consumption: 3 W
  • Size: _х_ mm


The following describes 4 types of possible scheme configuration based on Control board 16ch:

  • Modulator with ASI input
  • Modulator with IP input
  • Receiver with ASI output
  • Receiver with IP output

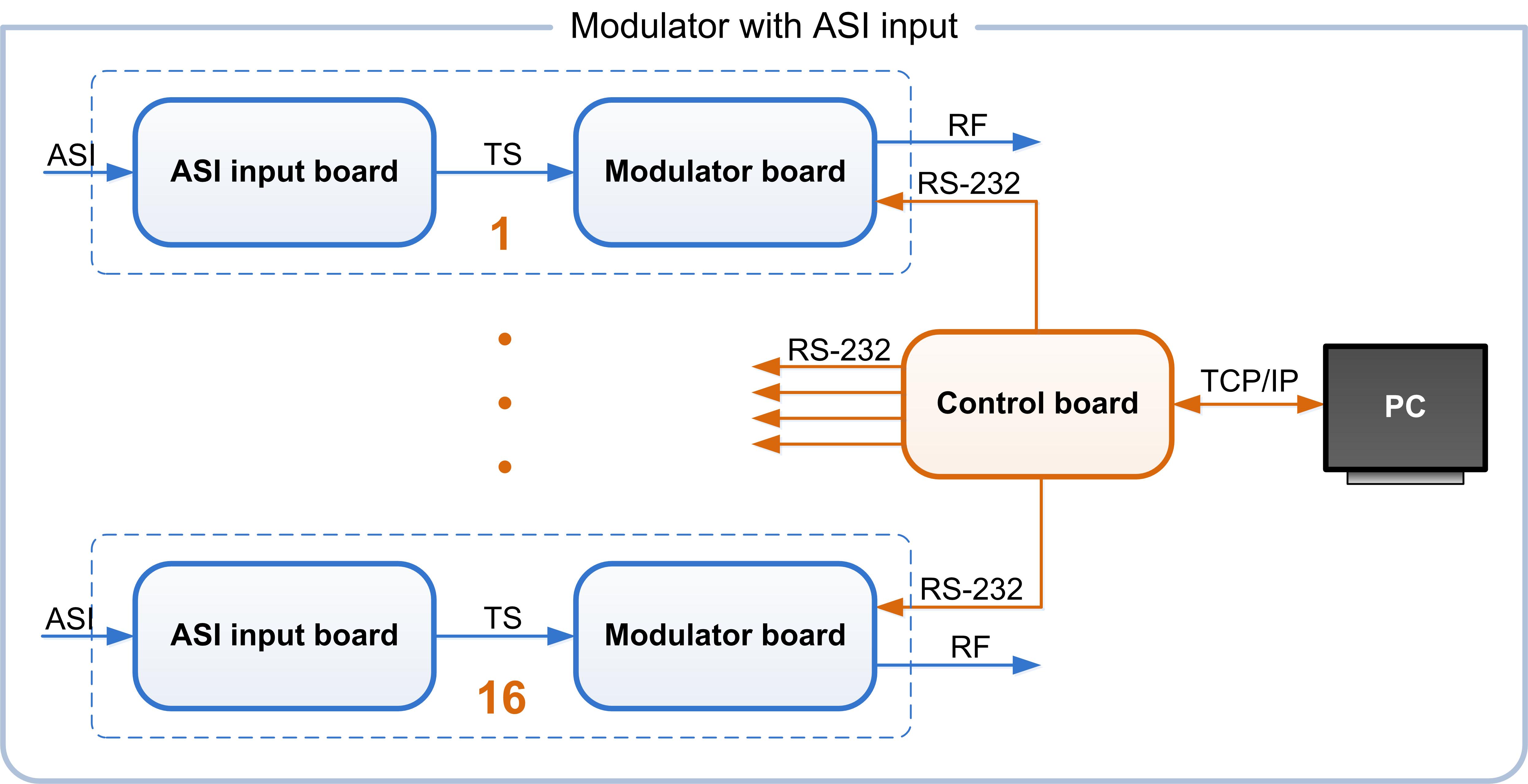

Modulator with ASI input and 16ch control board

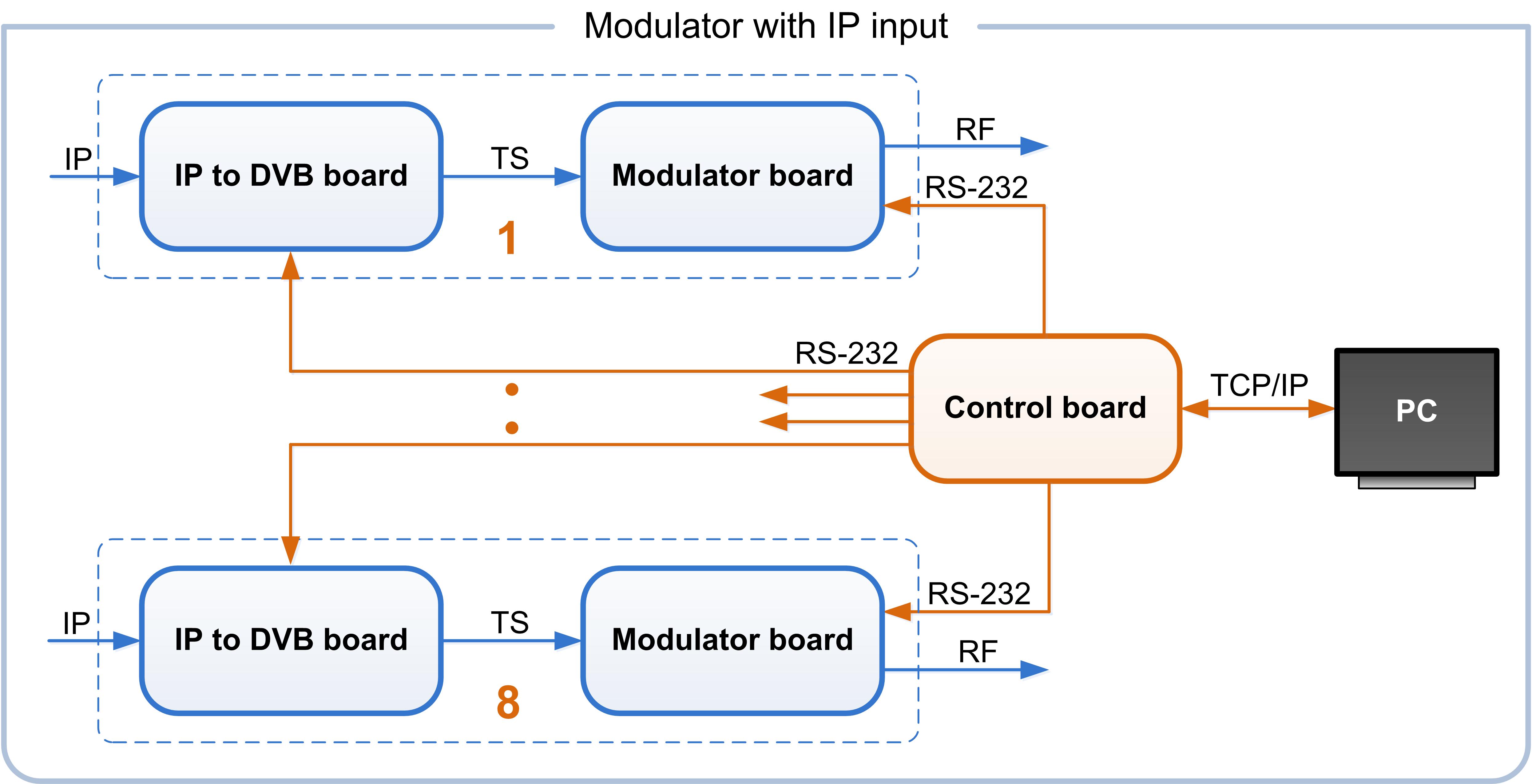

Modulator with IP input and 16ch control board

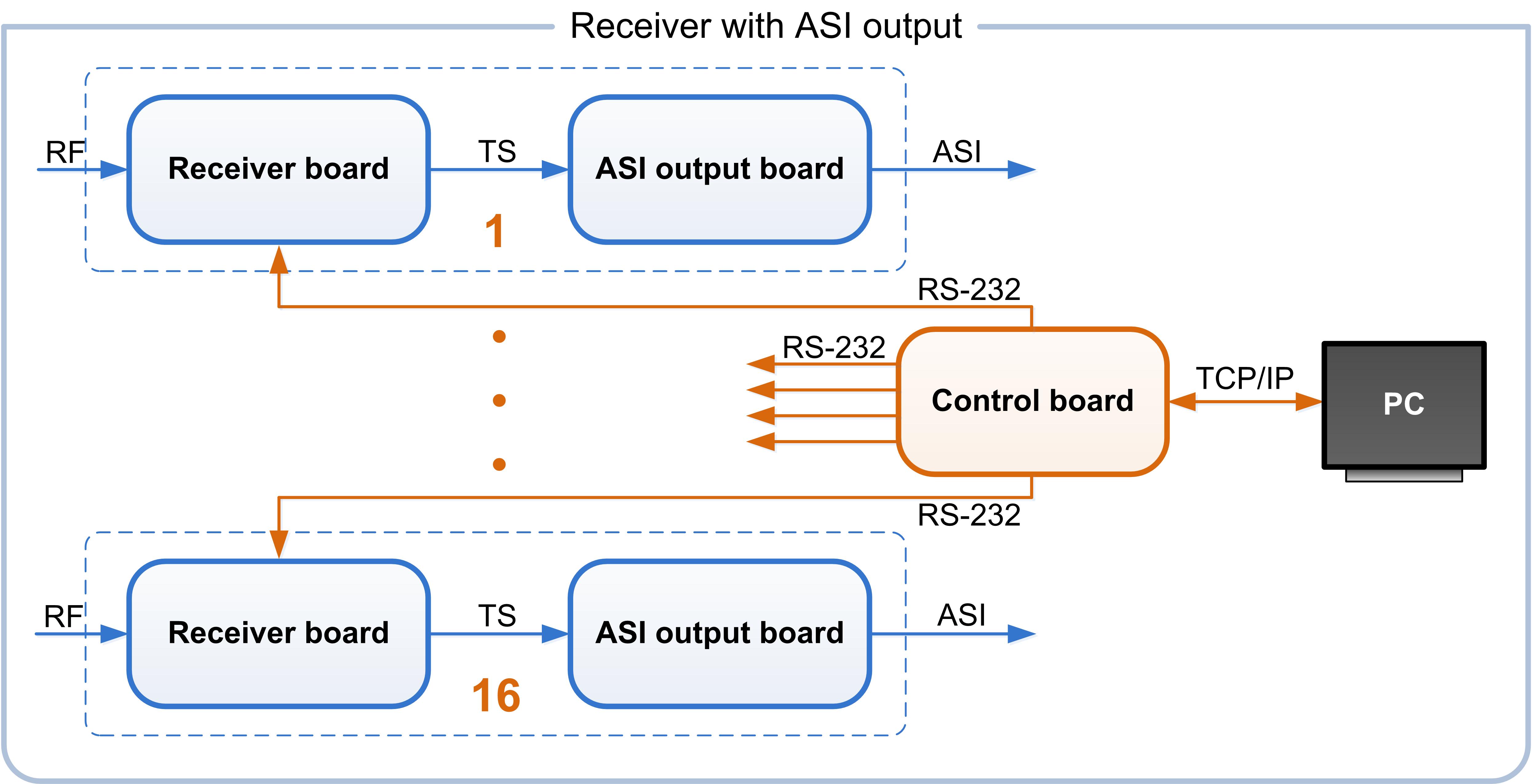

Receiver with ASI output and 16ch control board

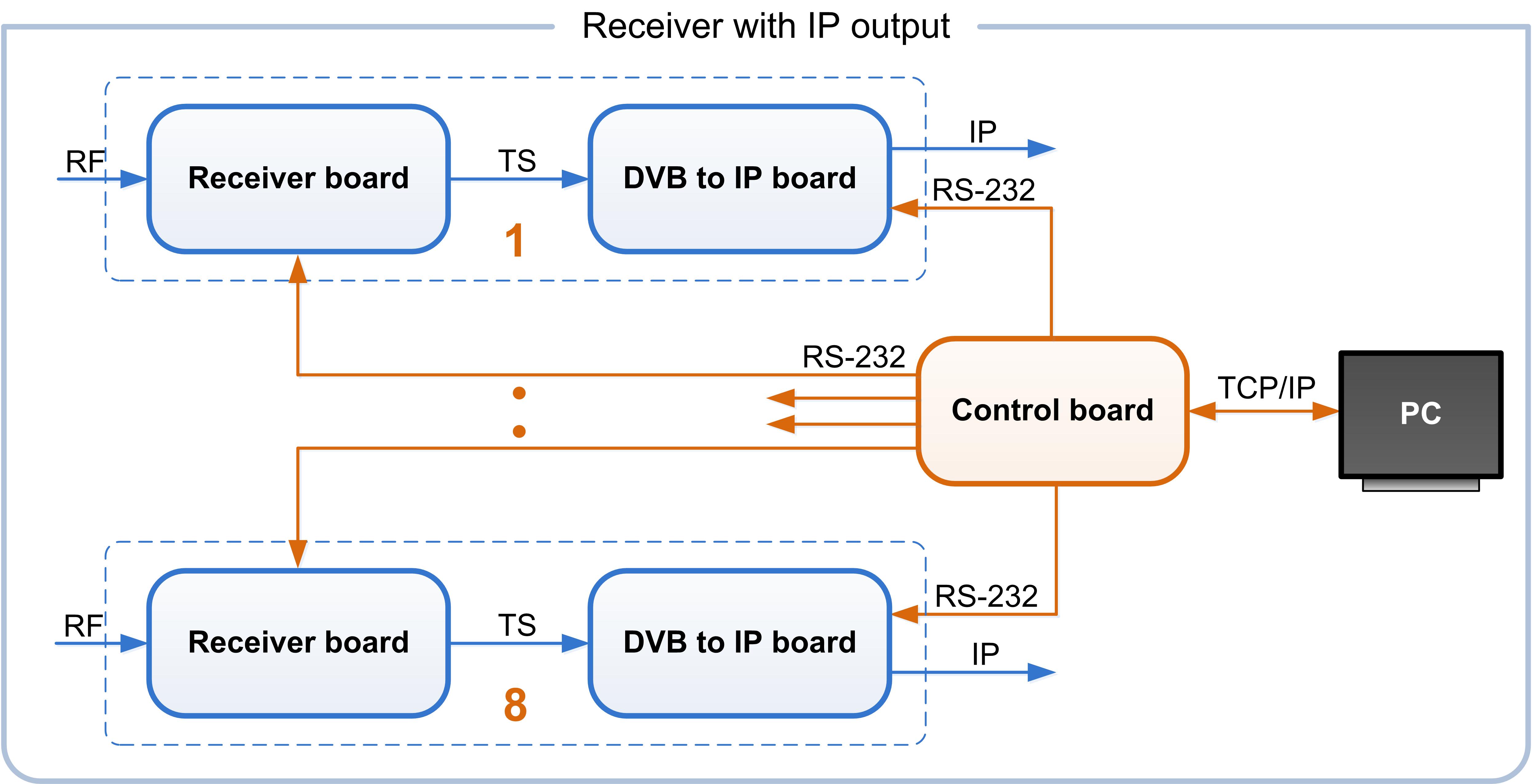

Receiver with IP output and control board 16ch

Interface  10/100 Base-T
Full/Half Duplex Modes  Auto-negotiation/manual
Input connector  RJ45
Protocol  TCP/IP
Count of managemented boards  1…16
Supply voltage  8…18 V
Power consumption  3 W
Size  х mm
