DRA-Ku09 v2

  • Description
  • Parameters
  • Downloads

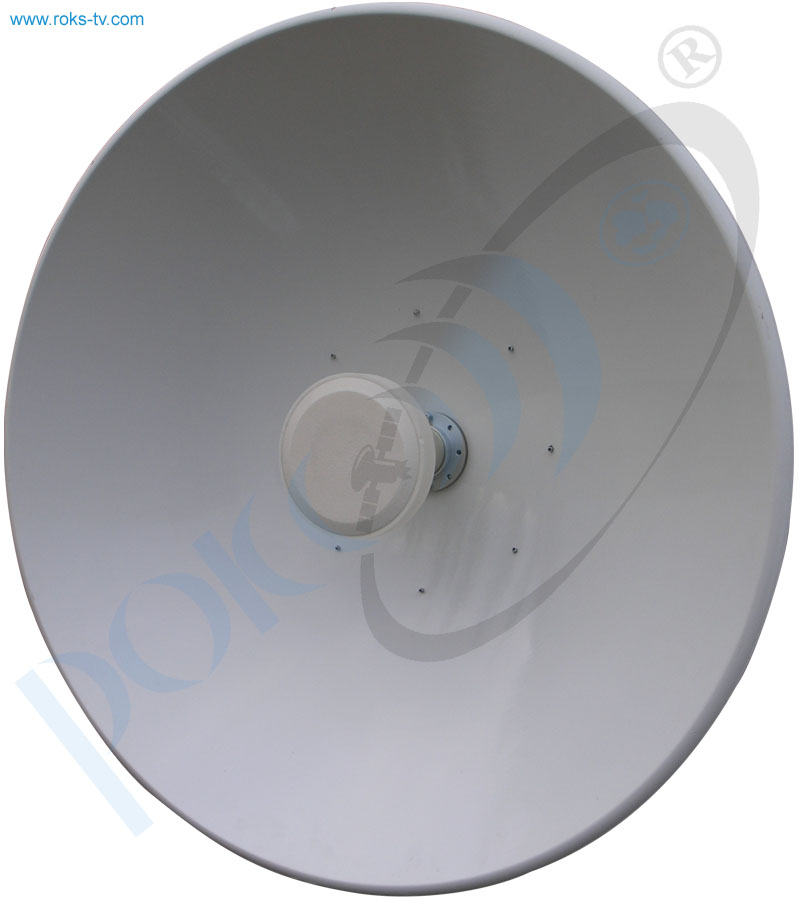

DRA-Ku09 v2 is deigned for transmitting radio relay stations (RRS) and it has a narrow directional diagram. This is a double reflector antenna (Cassegrain), equipped with radio wave caps. Antenna is designed as a single block with a flange to connect the transmitter or receiver. Using one or more RRL spans allows to transfer the broadcast signal from/to remote cable operators or from/to the remote Head-end whith no wires .In this case the transmission line can consist of radioequipment only. This transmission method is especially useful in difficult terrain within the service area, where cabling is impossible.



ASSOCIATED EQUIPMENT:

Waveguide Adaptor
WR75 to C120 Adaptor
WR75 to C120 Adaptor L=40

Specification
Frequency range, GHz 10 - 14
Gain, dBi 36
VSWR 2
Polarization Linear or circular
Cross-polarization isolation, dB 25
HPBW:
@horizontal
@vertical
Side-lobe level relative to the main beam, dB
Input power, W 20
Waveguide WR-75 or С-120
Temperature range, °C -50 to +80
Humidity 100% where 25°C
Size, mm 980x980x310
Weight, kg  12.5
Mount Mounting on a vertical pipe with a diameter of 50-100 mm
Casing material Canvas coverage
