DRA-Ku125 v2
- Description
- Parameters
- Downloads

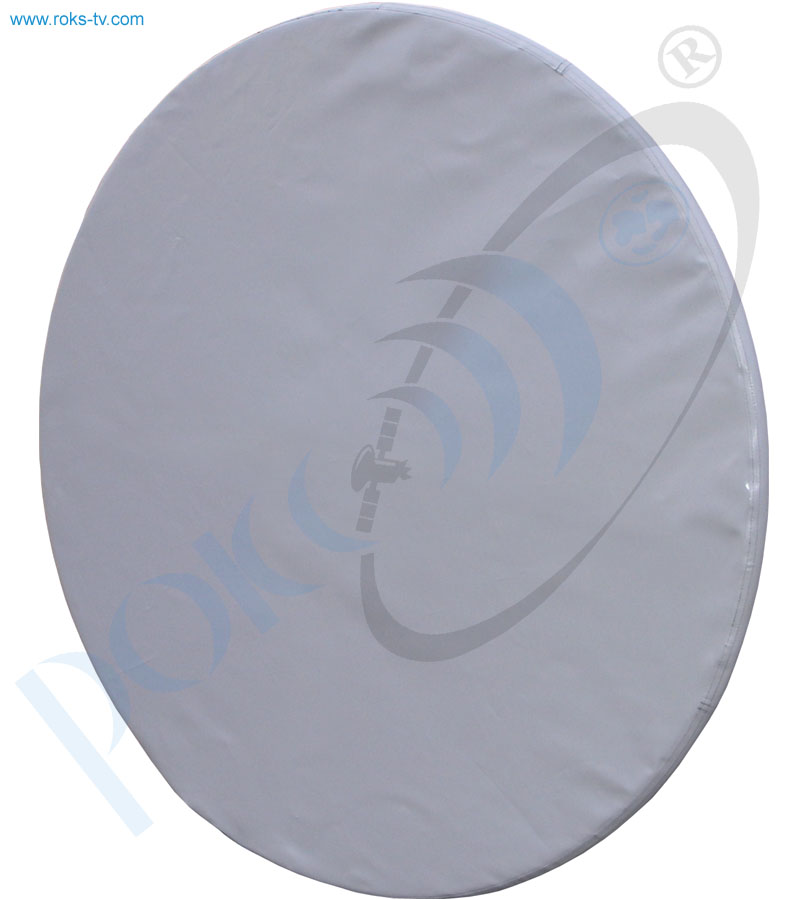

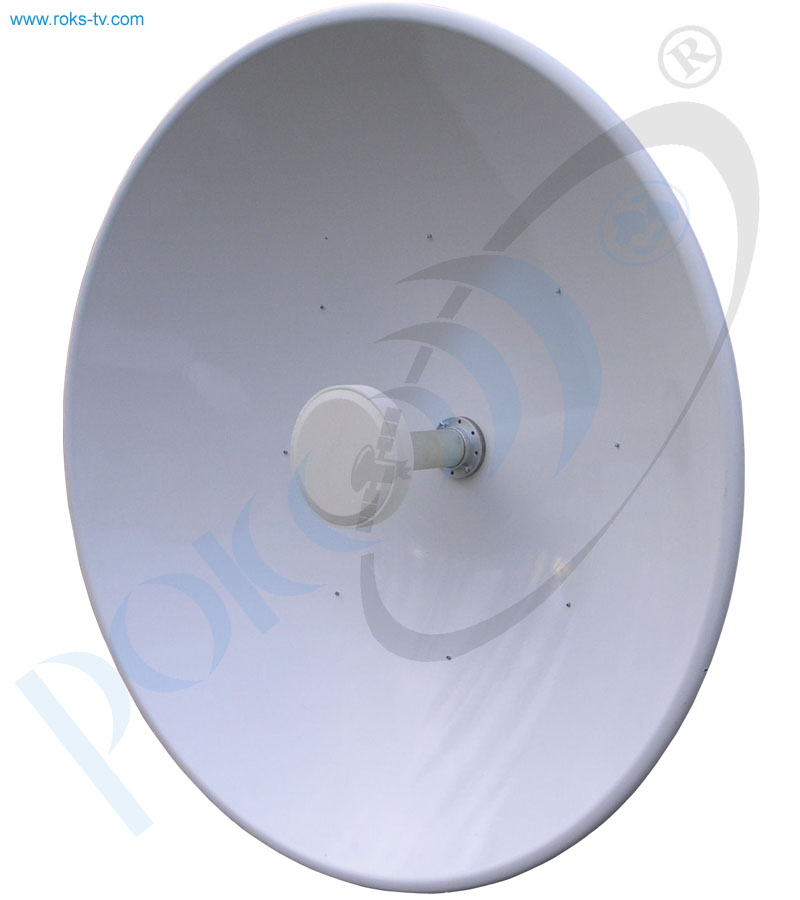

DRA-Ku125 v2 is deigned for transmitting radio relay stations (RRS) and it has a narrow directional diagram. This is a double reflector antenna (Cassegrain), equipped with radio wave caps. Antenna is designed as a single block with a flange to connect the transmitter or receiver. Using one or more RRL spans allows to transfer the broadcast signal from/to remote cable operators or from/to the remote Head-end whith no wires .In this case the transmission line can consist of radioequipment only. This transmission method is especially useful in difficult terrain within the service area, where cabling is impossible.
ASSOCIATED EQUIPMENT:
| Waveguide Adaptor |
 |
| WR75 to C120 Adaptor L=40 |
| Specification | |
|---|---|
| Frequency range, GHz | 10 - 14 |
| Gain, dBi | 39 |
| VSWR | 1.2 |
| Polarization | Linear or circular |
| Cross-polarization isolation, dB | 25 |
| HPBW: | |
| @horizontal | 1.2° |
| @vertical | 1.2° |
| Side-lobe level relative to the main beam, dB | |
| Input power, W | 20 |
| Waveguide | WR-75 or С-120 |
| Temperature range, °C | -50 to +80 |
| Humidity | 100% where 25°C |
| Size, mm | 1310x1310x350 |
| Weight, kg | 25 |

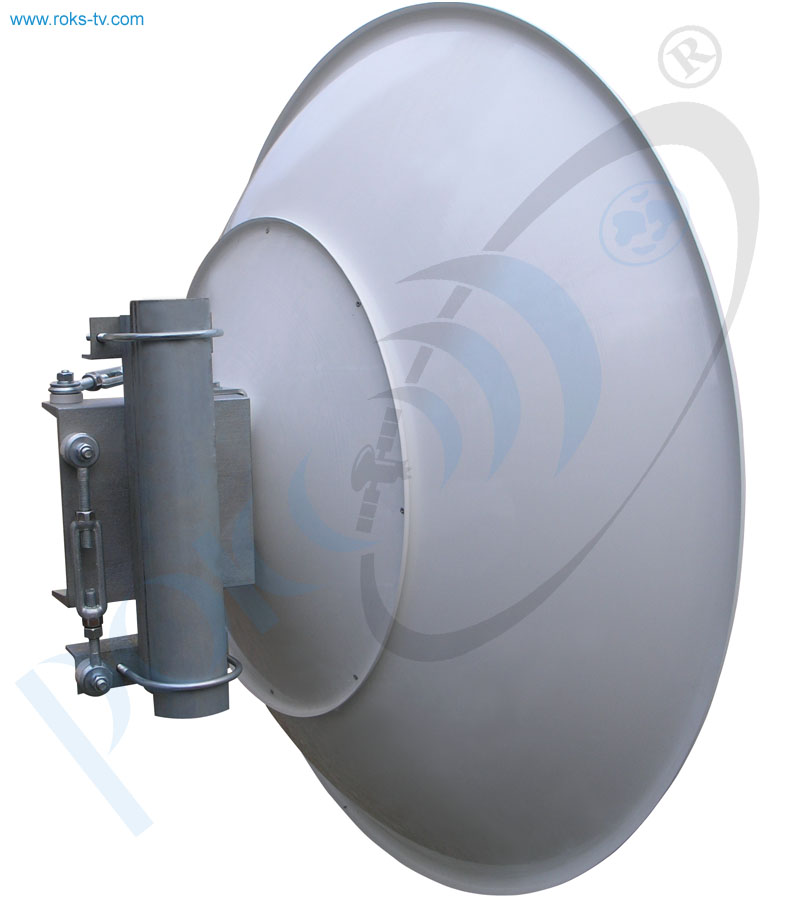

| Mount | Mounting on a vertical pipe with a diameter of 50-100 mm |
| Casing material | Canvas coverage |
