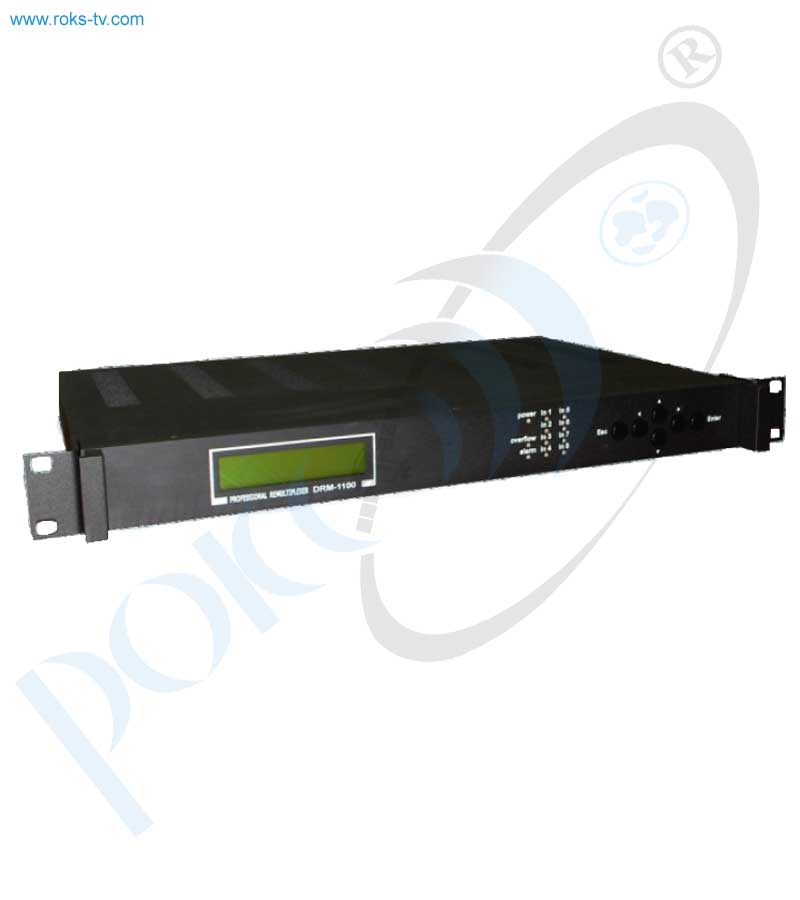

DRM-1100e

  • Description
  • Parameters
  • Downloads

DVB-ASI TS Re-Multiplexer Application

  • collection and distribution content, as in fixed, so and in mobile networks
  • network LMDS, MMDS, MITRIS
  • main stations ethereal and cable broadcasting
  • IP-network

DVB-ASI TS Re-Multiplexer Financial Advantages

  • budgetary decision
  • compact decision (spares place in rack)
  • simplicity to integrations with all system of network management,
  • possible using in different set

DVB-ASI TS Re-Multiplexer Features

  • the analysis input transport stream and image all falling into them elementary streams in the manner of logical tree-type structure with instruction of the type of the stream, his PID and etc;
  • the extraction from input streams chosen elementary streams with possibility of the change their PID in automatic or manual mode;
  • the multiplexing elected streams in multiprogram transport stream;
  • the multiplexing uncoded and coded streams;
    the speed measurement of the stream with provision for added by multiplexor ancillary information and finding minimum, maximum and average importances for any time lag;
  • the mode of the deep analysis input streams with finding not described in official and service table elementary streams, speed measurement all being present at entry elementary streams etc.;
  • the generation and editing official and service tables (SI and PSI processing) for specified stream;
  • editing the descriptions of the programs;
  • correcting the marks PCR for all programs of the target stream;
  • the generation of the tables TOT and TDT on hour of the realtime;
  • flexible installation to velocities of the output stream;
  • indication of presence of the signal on each of input;
  • indication of the overflow of the buffer of the multiplexor;
  • indication of the breach to wholeness firmware device;
  • indication of the completion of the test period of the work;
  • introducing the tables to network information (NIT);
  • management and checking through Internet;
  • the renovation soft device through port of management Ethernet;
  • making the electronic program of the broadcast (EPG) ;
  • multilanguage support;
  • description length of the program to 3.8 Kbytes;
  • length of the name of the program up to 240 characters;
  • automatic generation of events present / folliwing schedule;
  • EPG download from hmltv - file.

Description of the option EPG

  • EPG provides the option to add the EPG (Electronic Program Guide) in the transmitted
  • program for display of digital television subscribers. EPG allows users to quickly and easily find their
  • favorite programs and / or view additional information about this program. Option EPG is fully
  • compatible with standard DVB-SI EN 300 488.

Input/Output
Input DVB ASI, electrical
State of working packet, byte
Package lenght 188/204
Determination of the type input stream automatic
Q-ty of input ports 8
Input connector BNC
Input voltage 200..880 mV
Input resistance 75 Ohm
Input Bit rate to 216 Mb/s
Amount filtered elementary stream on each input to 256
Output DVB ASI, electrical
Q-ty of output ports 2 independent ports
Output connector BNC
Output voltage 800 mV
Output resistance 75 Ohm
Output Bit rate to 216 Mb/s
The Step of the installation to output velocity 1 b/s
State of working packet, byteп
Package lenght 188/204
The Amount service in output transport stream to 128
Amounts elementary stream in output stream to 8191
Intervals of the measurement of the velocities stream from 1 seconds to 1 week
Indicators, key field, display to front panel of management
The Indicators conditions of the system
Key field, display to front panel of management (optional) image of the condition of the system and deskside
  DVB-ASI TS Re-Multiplexer Form factor
Form factor 1RU (19")
Size 44mm х 482mm х 240mm
Voltage 88..264 In variable current
Frequency of the current 47..63 Hz
The Worker temperature from 0C to +50С
Operating humidity 80%, non‐condensing
