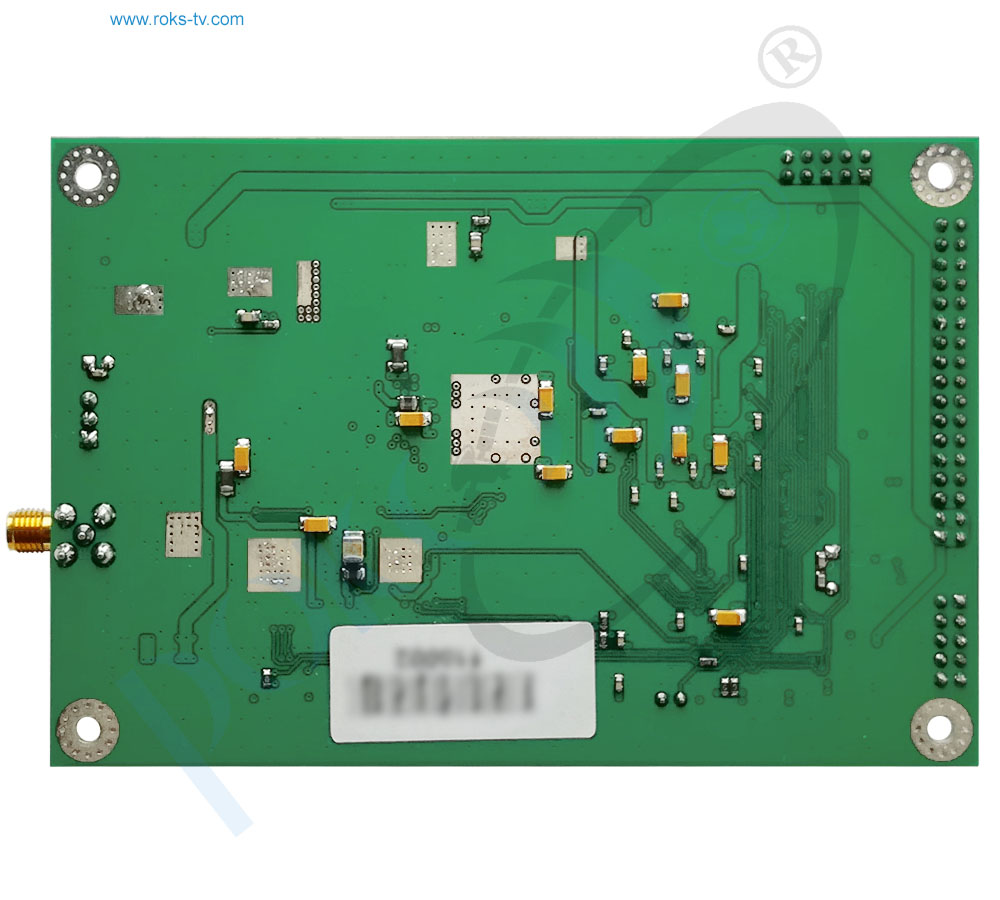

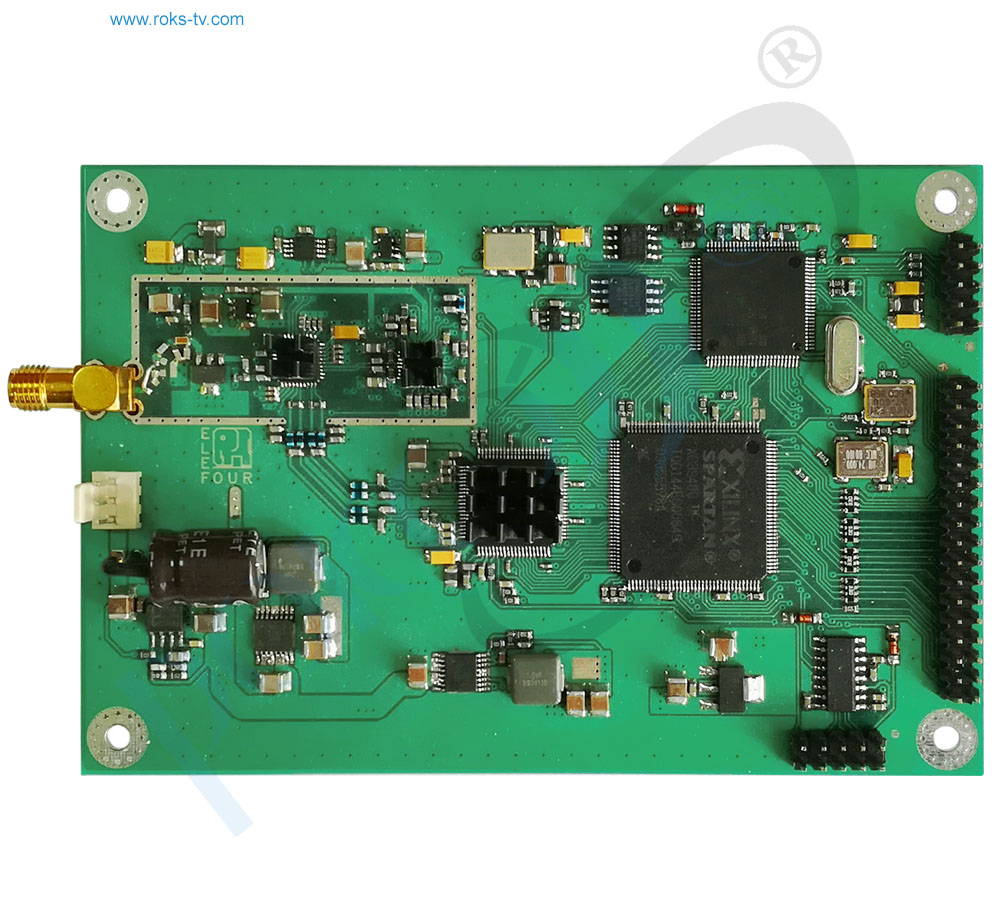

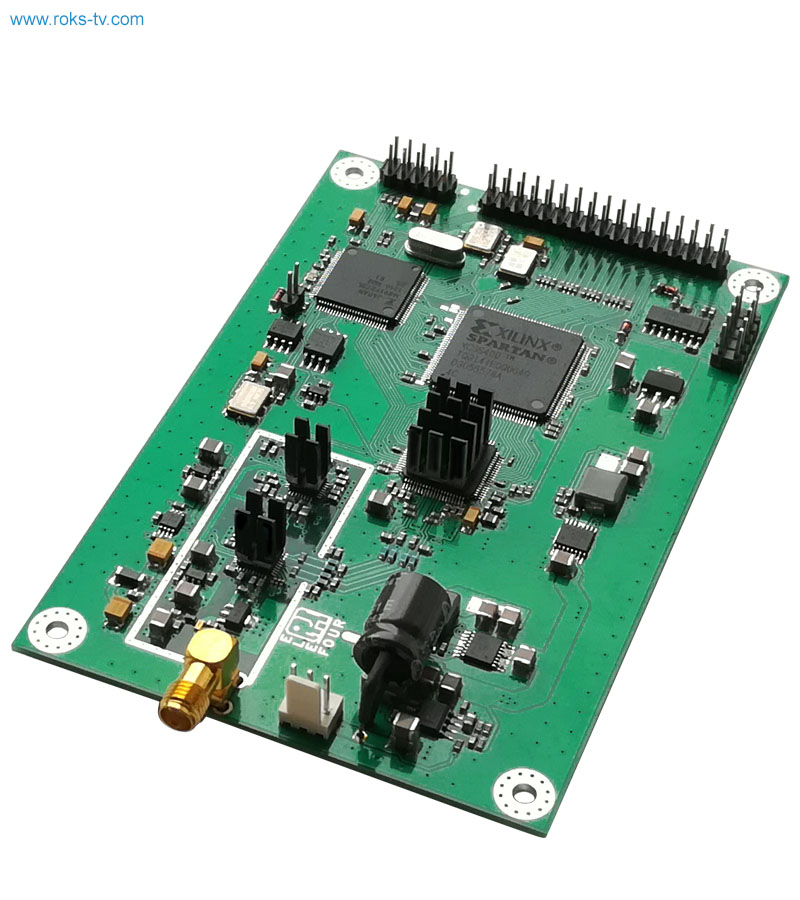

DVB-C/T/S modulator board
DVB-C/T/S modulator board is designed for converting the parallel DVB transport stream to satellite IF signal, modulated according to DVB-S standard or directly to the RF signal of the DVB-C or DVB-T standards.
Out of production
- Description
- Parameters
- Downloads
DVB-C/T/S modulator board can be used for designing a variety of converters, modulators, transmodulators and other digital broadcasting equipment. A plenty of devices can be used as a source of the input transport stream:
- DVB-S/S2 receiver;
- DVB-C/T/T2 receiver;
- MPEG encoders;
- TS multiplexers;
- ASI-to-DVB TS converters;
- IP-to-DVB TS converters.
The RF output signal can be fed to combiners, additional filters or directly to television transmitters or networks. Management, monitoring and configuration of the modulator board is provided via RS-232 PC interface or TCP/IP protocol (via IP-UART Control Module).
The main advantages are:
- High quality of the modulated signal;
- Fine-tuning possibility;
- Small size and low power consumption;
- Greater flexibility.
| Parameter | Value |
|---|---|
| Modulation type | DVB-C, DVB-S, DVB-T (switchable) |
| Modulation parameters DVB-S mode: | |
| Modulation | QPSK |
| MER | > 25 dB |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Symbol rate | 1 ... 45 Msps, in steps of 1 Ksymb |
| Modulation parameters DVB-C mode: | |
| Modulation | QAM16, QAM32, QAM64, QAM128, QAM256 |
| MER | > 45 dB |
| Symbol rate | 1000 ... 7000 Ksps, in steps of 1 Ksymb |
| Modulation parameters DVB-T mode: | |
| Modulation | QAM16, QAM32, QAM64 |
| MER | > 40 dB |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard interval | 1/4, 1/8, 1/16, 1/32 |
| IFFT | 2k mode |
| Band channel | 5, 6, 7, 8 MHz |
| RF parameters: | |
| Frequency range (DVB-S) | 950 ... 2150 MHz, in increments of 1 kHz |
| Frequency range (DVB-C, DVB-T) | 70 ... 865 MHz in steps of 1 kHz |
| Signal level | 80 ... 110 dBuV |
| Connector type | SMA |
| Impedance | 50 Ohm |
| Input: | |
| Signal type | parallel transport stream from DVB compatible modules |
| Connector type | PLD-34 |
| General | |
| Control interfaces | RS232 (inbuild) |
| TCP / IP (optional with IP-control board) | |
| Front panel (optional with Front panel board) | |
| Power supply | 8 ... 18 V |
| Power consumption, max | 5 W |
| Dimensions | 120x80 mm |
