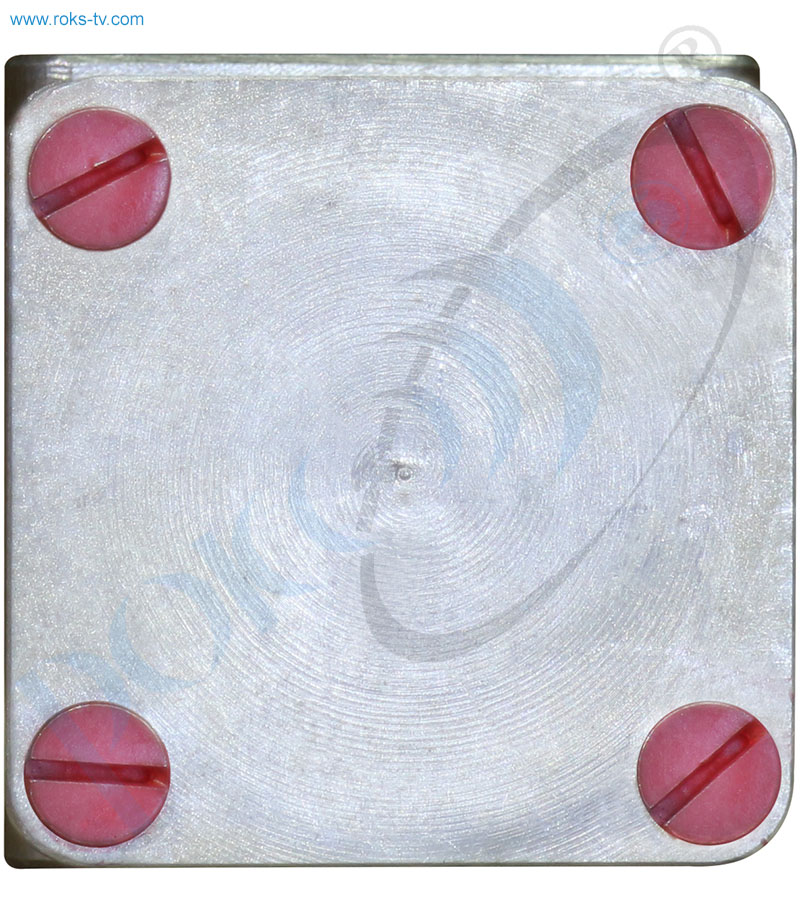

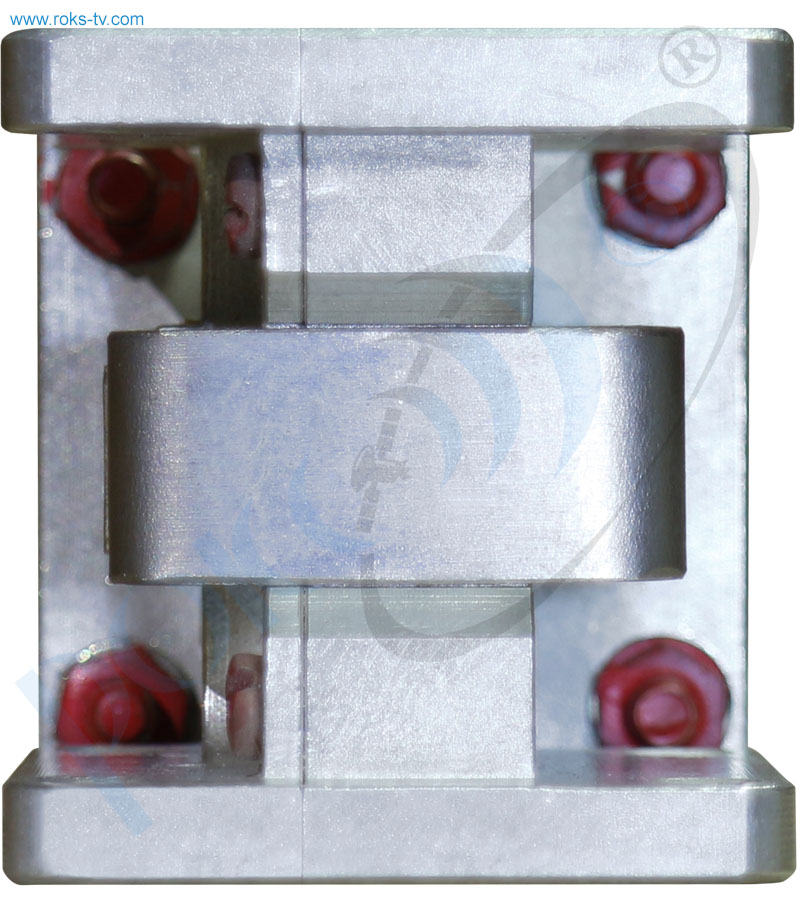

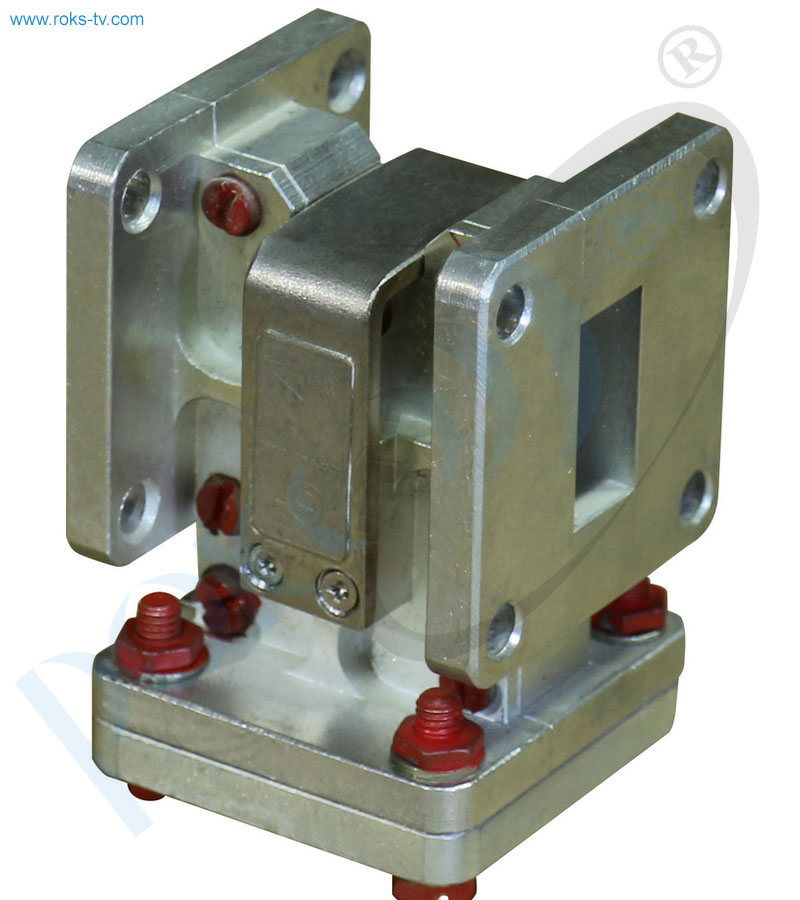

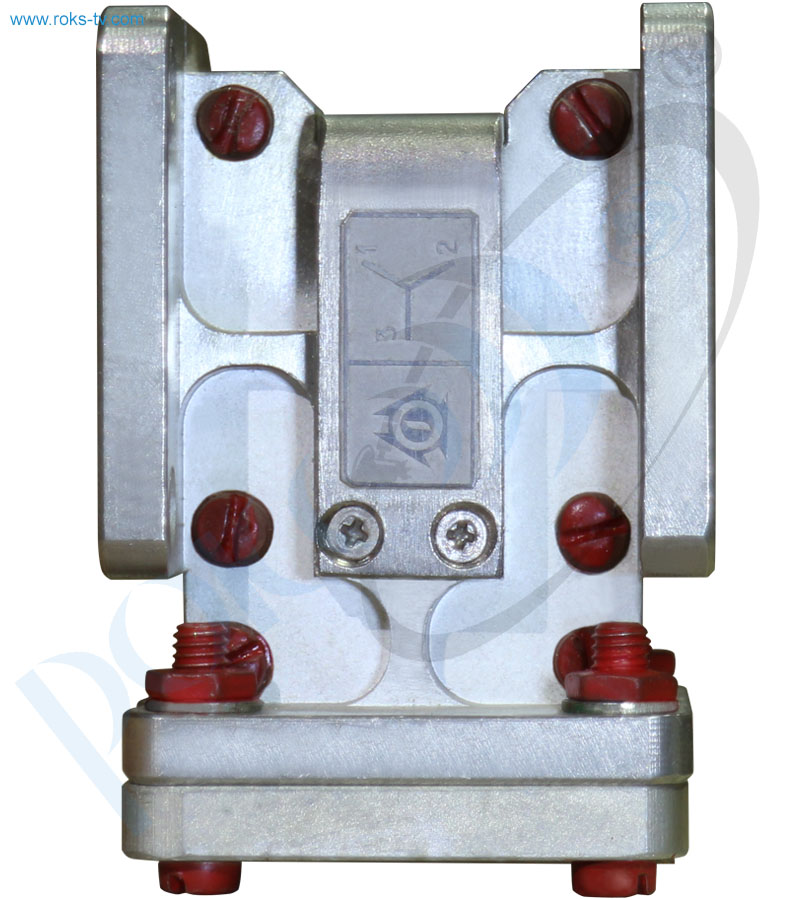

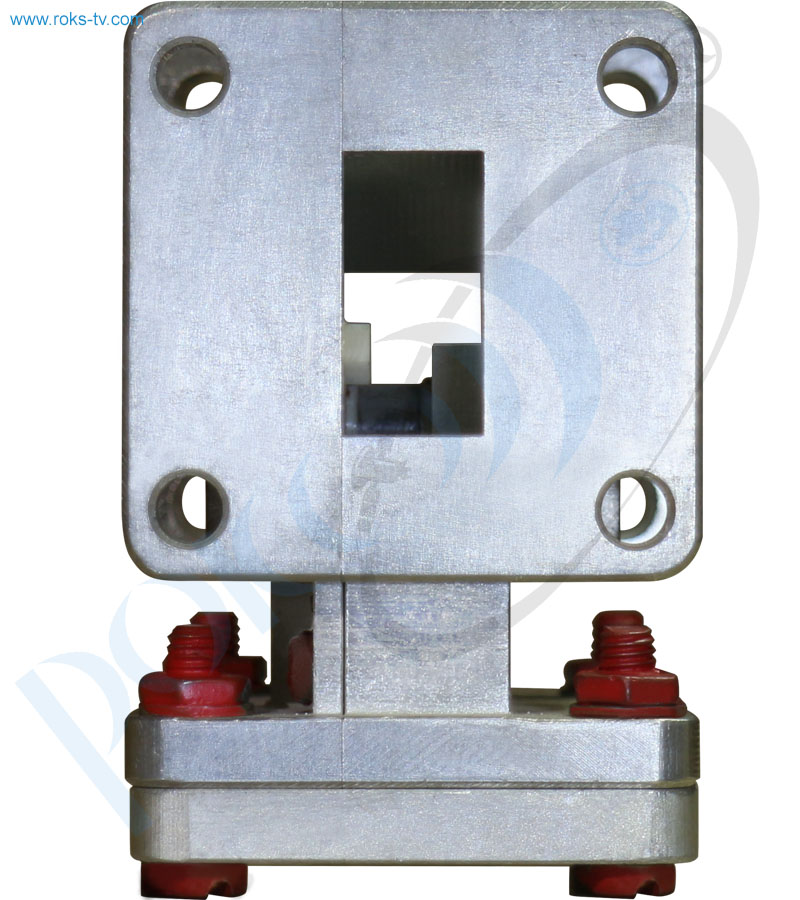

Ku-Band Waveguide Isolator
The Ku-band waveguide isolator is used for a one-way transmission of electromagnetic waves and for equipment protection from unmatched load.
Active
- Description
- Parameters
- Downloads
| Parameter | Value |
|---|---|
| Frequency Range 9.4 – 9.9 GHz | |
| Waveguide | WR90 |
| Direct Losses | 0.35 dB |
| Isolation | 23 dB |
| VSWR | 1.2 |
| Power | 10W |
| Flange | FBP100 |
| Frequency Range 12.36 – 16.7 GHz | |
| Waveguide | WR62 |
| Direct Losses | 0.5 dB |
| Isolation | 20 dB |
| VSWR | 1.25 |
| Power | 100W |
| Flange | FBP140 |
Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
