L-band Amplifier
- Description
- Parameters
- Downloads

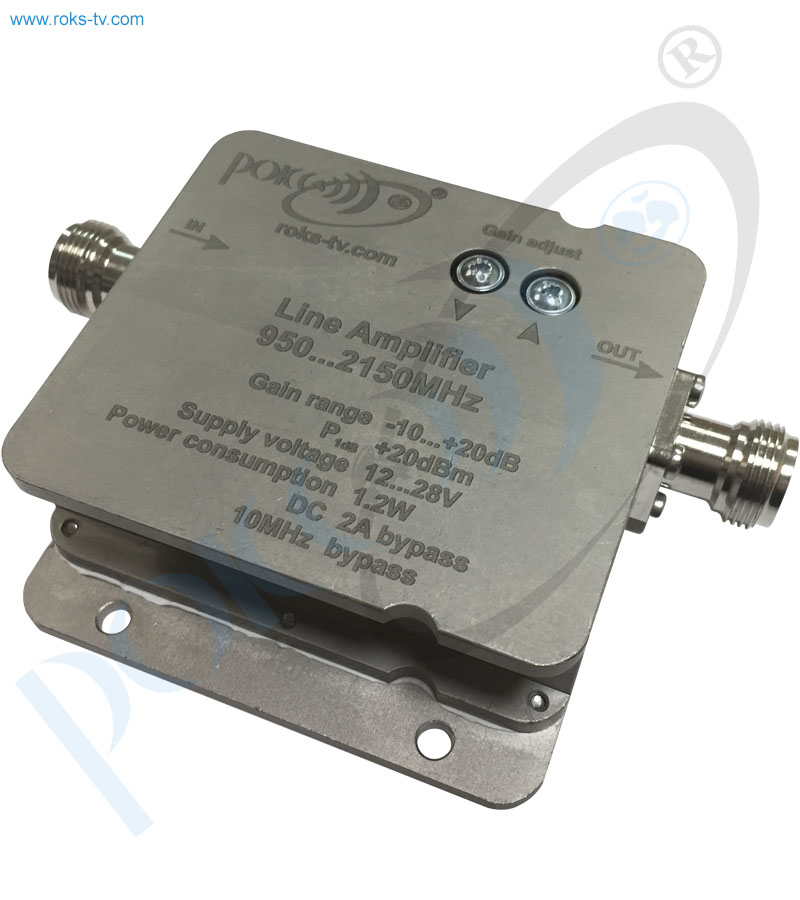

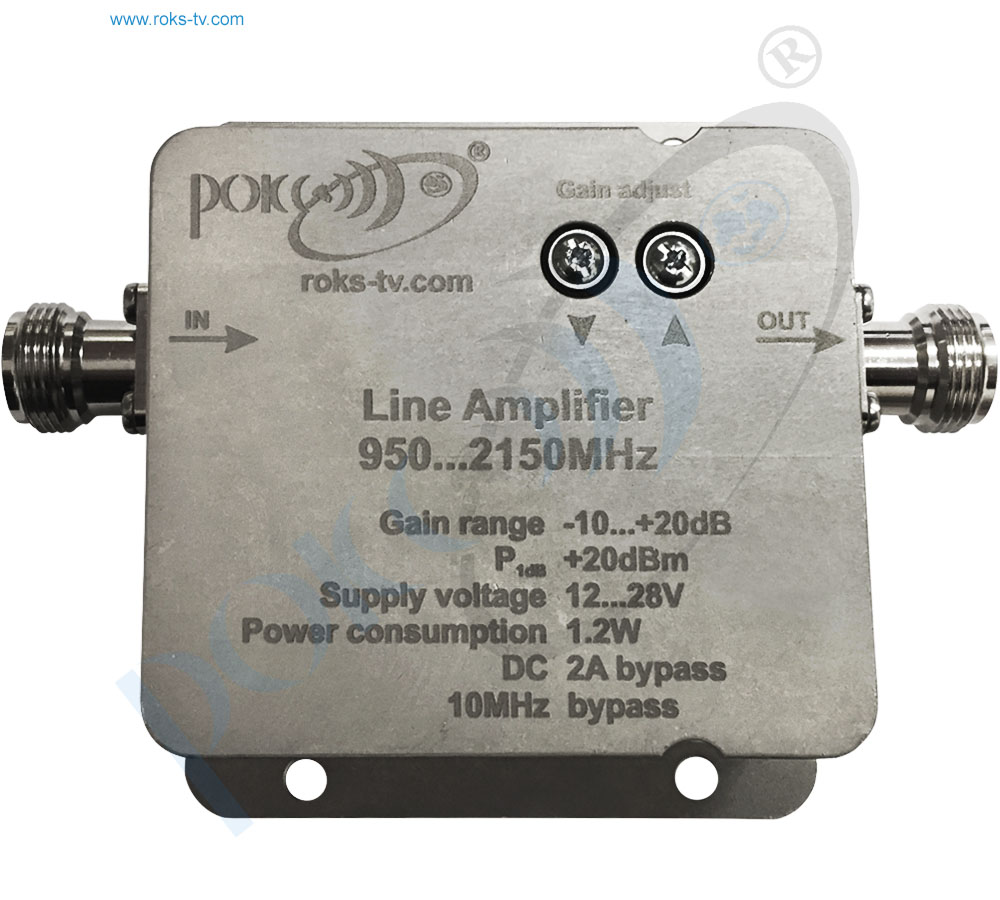

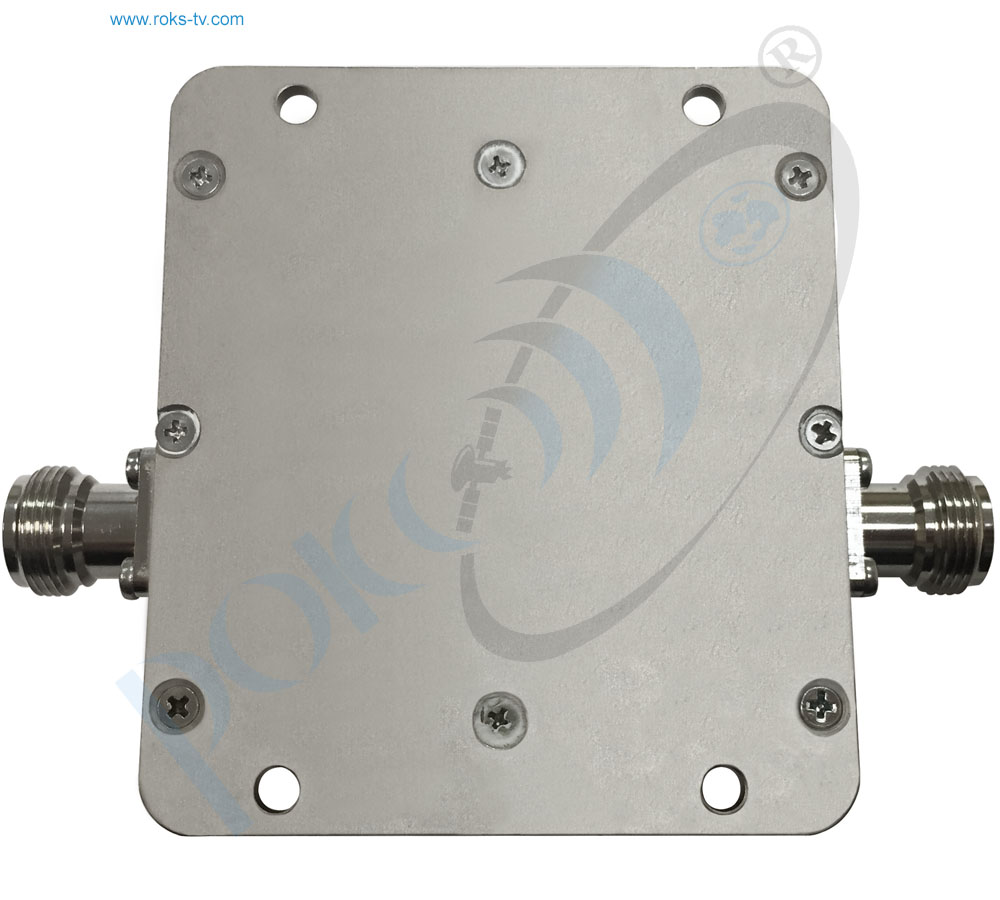

L-band amplifier with adjustable Gain and high output level (P1dB=+20dBm) is intended for compensation of signal loss at long coaxial connections or boosting a weak L-band signal from passive dividers/combiners. Main features of this devices are adjustable Gain (-10...+20dB), easy access to controlling buttons, saving case hermetization and high Gain linearity at full frequency band at any Gain level. Also L-band amplifier has DC and 10MHz bypass, DC supply by coaxial cable.
KEY FEATURES:
- Output power at P1dB: +20 dBm
- Frequencies range: 950 .. 2150 MHz
- Adjustable gain: -10 .. +20 dB
- Digital gain adjust with 1 dB step
- DC bypass: up to 2A
- 10 MHz bypass
| General parameters | |
|---|---|
| Frequensies range | 950 - 2150 Mhz |
| Gain | -10 .. +20 dB (adjustable) |
| Gain Adjust | digital, step 1 dB |
| Flatness over Full Band | ±1 dB |
| Flatness over 40MHz Band | ±0.3 dB |
| Input retun loss | -19 dB |
| Output return loss | -15 dB |
| Noise Figure (@max Gain) | 5 dB |
| Output power, P1dB | +20 dBm |
| DC bypass | up to 2A |
| 10 MHz | bypass |
| Power Supply | |
| Input Voltage | +7.5 .. +34 V |
| Power Consumption | 1.2 W |
| Environmental: | |
| Operating temperature | -40℃ to +50℃ (-40℉ to +122℉) |
| Storage temperature | -60℃ to +80℃ (-76℉ to +176℉) |
| Operating humidity | 100%, non‐condensing |
| Mechanical | |
| Dimensions (W x H x D) | 116 x 28 x 89 mm |
| Weight | 350 g |
