LNA L-band with Filter

  • Description
  • Parameters
  • Downloads

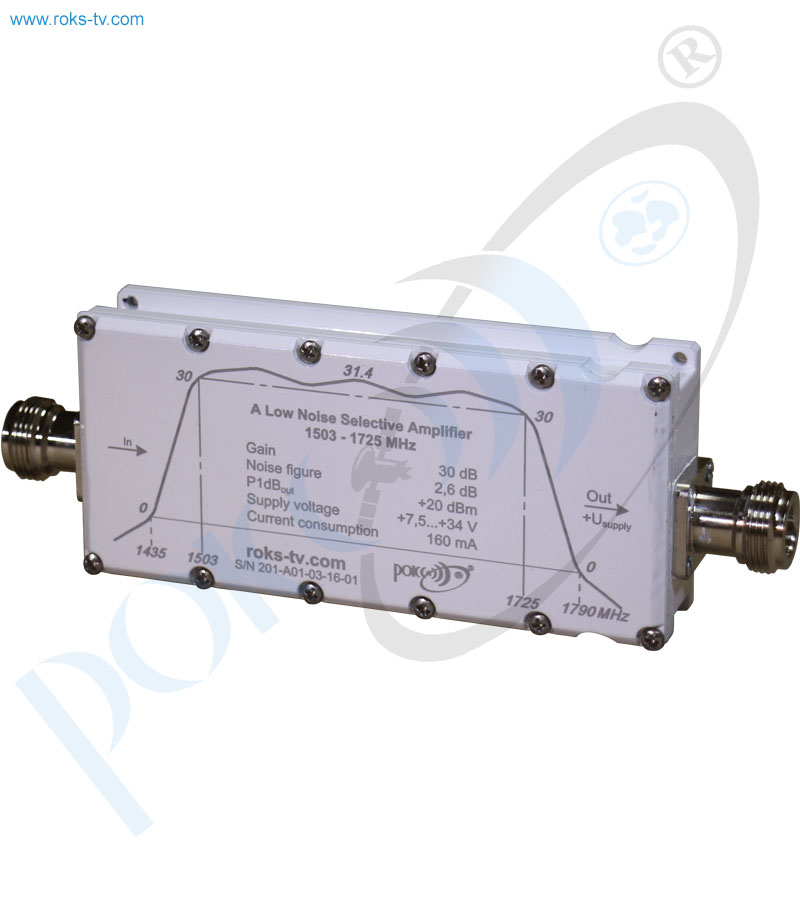

L-band low-noise amplifier is designed for increasing the sensitivity of the satellite communication and navigation systems receivers.

In order to protect the receiver from noise, which can be outside the operating frequency range of the amplifier, the selective bandpass filter is installed at the input of the amplifier, which limits the bandwidth of the received signal.

The amplifier has 50 Ohm impedance and DC pass.

L-band low-noise amplifier features a compact metal case which protects it from dust and moisture.

General parameters
Frequensies range 1503 .. 1725 Mhz
Gain 30 dB
Flatnes ±1 dB
Input retun loss -19 dB
Output return loss -15 dB
Noise Figure 2.6 dB
Output power, P1dB +20 dBm
Power Supply
Input Voltage +7.5 .. +34 V
Power Consumption 2 W
Environmental:
Operating temperature -40℃ to +50℃ (-40℉ to +122℉)
Storage temperature -60℃ to +80℃ (-76℉ to +176℉)
Operating humidity 100%, non‐condensing
Mechanical
Dimensions (W x H x D) 145 x 50 x 25
Weight 280 g
