LNB-CP01 v1
- Description
- Parameters
- Downloads

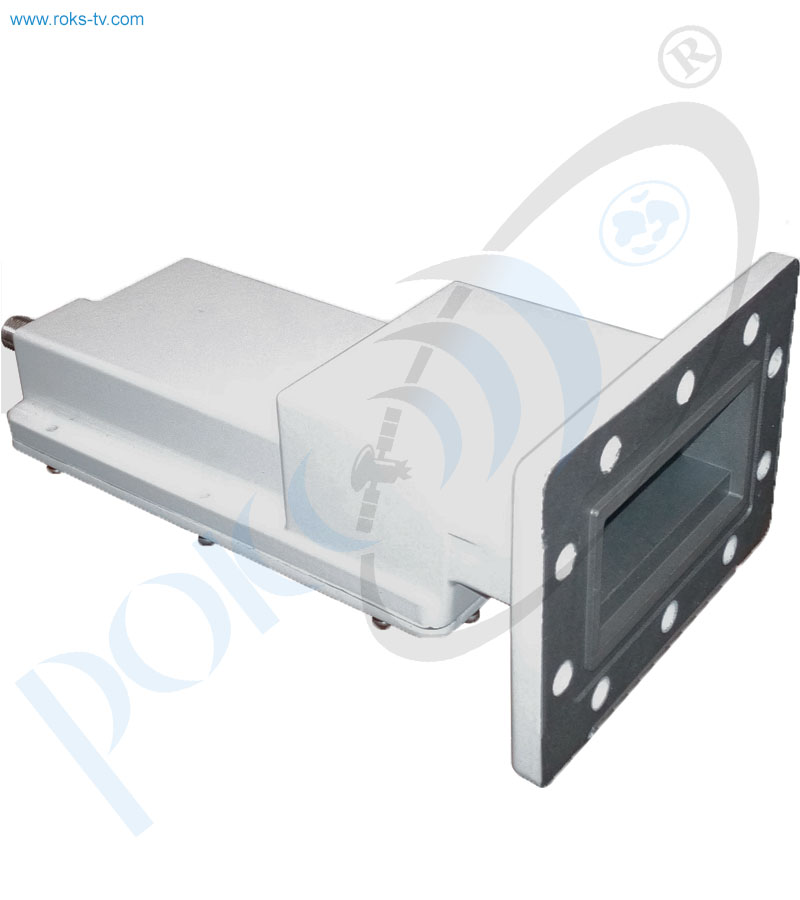

The Low Noise Block Down Converter LNB-CP01 v1 is designed for gain and transform the RF signals from C-band to the L-band intermediate frequencies. This block has a waterproof case and could be mounted in close proximity to an antenna. LNB's parameters correspond to the conditions of MVDS/MITRIS TV broadcasting systems according to standard DVB-S/S2 and could operate with up to 25 carriers. LNB-CP01 v1 has input PDR-40 flange and could be used with regular RRL or recieve antennas.
KEY FEATURES:
- Input flange PDR-40
- Output power is P1dB +3 dBm
- Output frequencies 950 – 1750 MHz
- Gain 60 dB (min)
- Oscillator type PLL
- Operates up to 25 carriers
- Designed for operation in MVDS/MITRIS TV broadcasting systems
| Input parameters | |
|---|---|
| Input Frequency | 3.4 ... 4.2GHz |
| Input Interface | WR-229, Flange PDR-40 |
| Input VSWR | 2.5:1 |
| Impedance | 50 Ohm |
| Output parameters | |
| Output Frequency | 950 ... 1750 MHz |
| Output VSWR | 2.0:1 |
| Output Interface | F-type (female) |
| Impedance | 75 Ohm |
| Local frequency | |
| LO frequency | 5.15 GHz |
| LO instability | ± 2 to ± 50 kHz (room temp.) ± 10 to ± 100 kHz (over room temp.) |
| LO Phase noise: | |
| @1kHz | -65dBc/Hz |
| @10kHz | -80dBc/Hz |
| @100kHz | -95dBc/Hz |
| @1MHz | -110dBc/Hz |
| Characteristics | |
| Gain | 60 dB typ. |
| Flatness | ± 2 dB @ full band |
| Ripple | ± 0.75 dB @ 30 MHz |
| Variation | ± 2 dB max |
| Noise figure | 30K max |
| P1dB | +3 dBm |
| Image rejection | 45 dB min |
| Power Supply | |
| Input voltage | +12 V ... + 24 V DC |
| Required current | 300 mA max |
| Environmental | |
| Operating temperature | -30℃ to +60℃ |
| Storage temperature | -40℃ to +80℃ |
| Operating humidity | 0% - 95% RH |
| Mechanical | |
| Dimensions (W x H x D) | 98x70x138 mm |
| Weight | 0.645 kg |
Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
