LNB-KuDxx v1
- Description
- Parameters
- Downloads

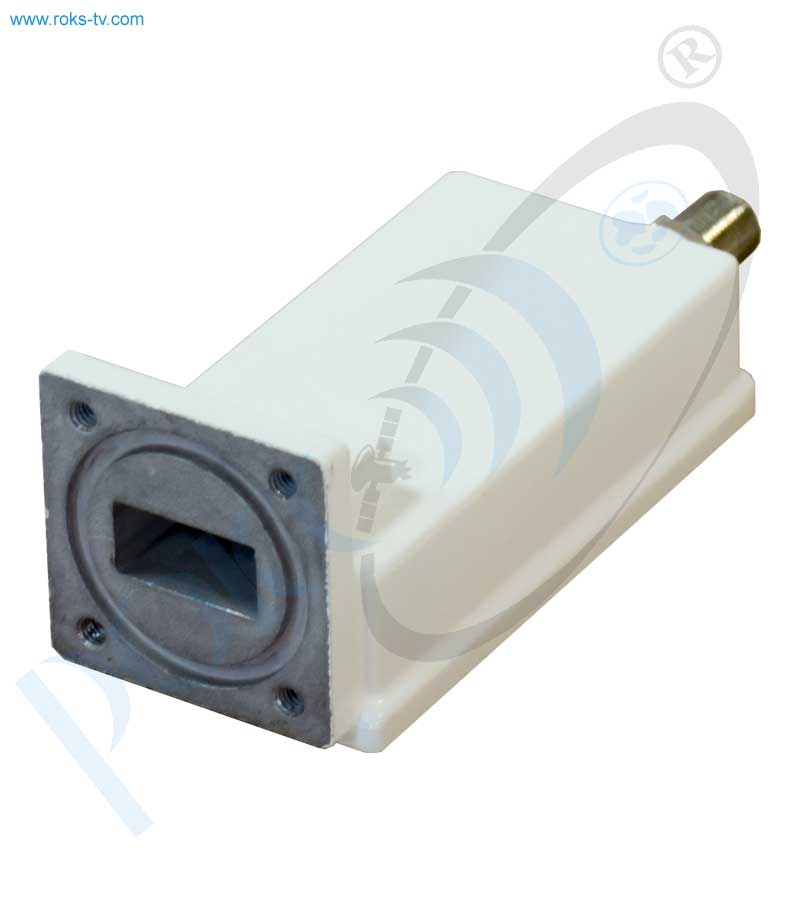

The Low Noise Block Down Converter LNB-KuDxx v1 is designed for gaining and transforming the RF signals from Ku-band to L-band intermediate frequencies. This block has a waterproof case and can be mounted in close proximity to the antenna. LNB's parameters correspond to MVDS/MITRIS TV broadcasting systems requirements and are fully compatible with DVB-S/S2 or DVB-C standards. LNB can operate up to 25 carriers. LNB-KuDxx v1 has PBR120 input flange and can be used with regular RRL or recieving antennas.
This LNB can be supplied with next frequency values of the Local Oscillator:
- LO 8.80 GHz IN: 9.75 - 10.75 GHz OUT: 950 - 1950 MHz
- LO 9.75 GHz IN: 10.70 - 11.70 GHz OUT: 950 - 1950 MHz
- LO 9.80 GHz IN: 10.75 - 11.75 GHz OUT: 950 - 1950 MHz
- LO 10.00 GHz IN: 10.95 - 11.95 GHz OUT: 950 - 1950 MHz
- LO 10.60 GHz IN: 11.55 - 12.55 GHz OUT: 950 - 1950 MHz
- LO 10.75 GHz IN: 11.70 - 12.70 GHz OUT: 950 - 1950 MHz
- LO 10.80 GHz IN: 11.75 - 12.75 GHz OUT: 950 - 1950 MHz
- LO 11.30 GHz IN: 12.25 - 13.25 GHz OUT: 950 - 1950 MHz
- LO 11.80 GHz IN: 12.75 - 13.75 GHz OUT: 950 - 1950 MHz
- LO 12.80 GHz IN: 13.75 - 14.75 GHz OUT: 950 - 1950 MHz
- LO 13.05 GHz IN: 14.00 - 15.00 GHz OUT: 950 - 1950 MHz
- Custom
KEY FEATURES:
- PBR120 flange input
- Output power: P1dB +5 dBm
- Input frequencies: any 1000 MHz in Ku-band (10 – 15 GHz) by order
- Output frequencies: 950 – 1950 MHz
- Min. gain: 58 dB
- Oscillator type: DRO
- Operates up to 25 carriers
- Designed for operation in MVDS/MITRIS TV broadcasting systems
| Input parameters: | |
|---|---|
| Input Frequency range | 11.7– 12.7 GHz (or any 1000 MHz in Ku-band by order) |
| Input level, max | -53 dBm |
| Input VSWR, max | 2.2 |

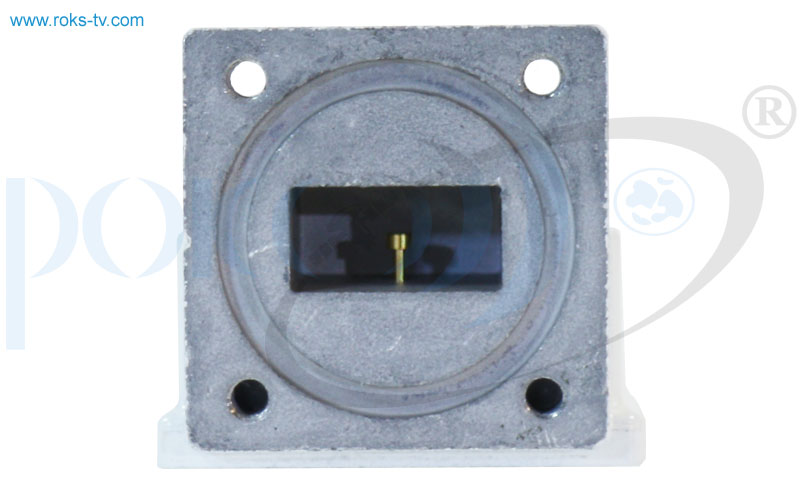

| Input interface | Waveguide WR75, Flange PBR120 |
| Local Oscilator: | |
| LO frequency | 10.75GHz (or by order: 8.8; 9.75; 9.8; 10.0; 10.6; 10.75; 10.8; 11.3; 11.8; 12.8; 13.05 GHz ) |
| LO Phase noise: | |
| @1 kHz | -70 dBc/Hz |
| @10 kHz | -85 dBc/Hz |
| @100 kHz | -95 dBc/Hz |
| LO instability | ± 2 MHz |
| Output parameters: | |
| Output frequency range | 950 - 1950 (or by order) |
| Output Power @P1dB | +5 dBm |
| Gain, min | 58 dB |

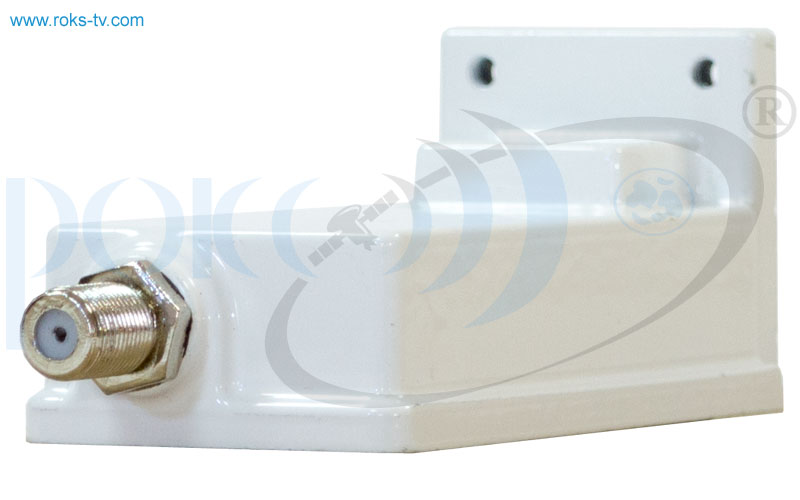

| Output interface | F-type female |
| Output impedance | 75 Ohm |
| Output VSWR, max | 2 |
| Frequency Response: | |
| Flatness over Full Band | ±2 dB |
| Flatness over 40MHz Band | ±0.75 dB |
| Spurious: | |
| Noise Figure (@+25℃) | 0.9 dB max |
| LO leakage, max | -50 dBm |
| Image rejection, min | 60 dB |
| Power Supply: | |
| Input voltage | 12 VDC – 24 VDC, nominal 18 VDC |
| Power consumption, max | 2 W |
| Environmental: | |
| Operating temperature | -30℃ to +60℃ (-22℉ to +140℉) |
| Storage temperature | -40℃ to +80℃ (-40℉ to +176℉) |
| Operating humidity | 0% - 95% |
| Mechanical | |
| Dimensions (W x H x D) | 45x42x105 mm |
| Weight | 0.2 kg |
Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
