LNB-KuPxx v1
- Description
- Parameters
- Downloads

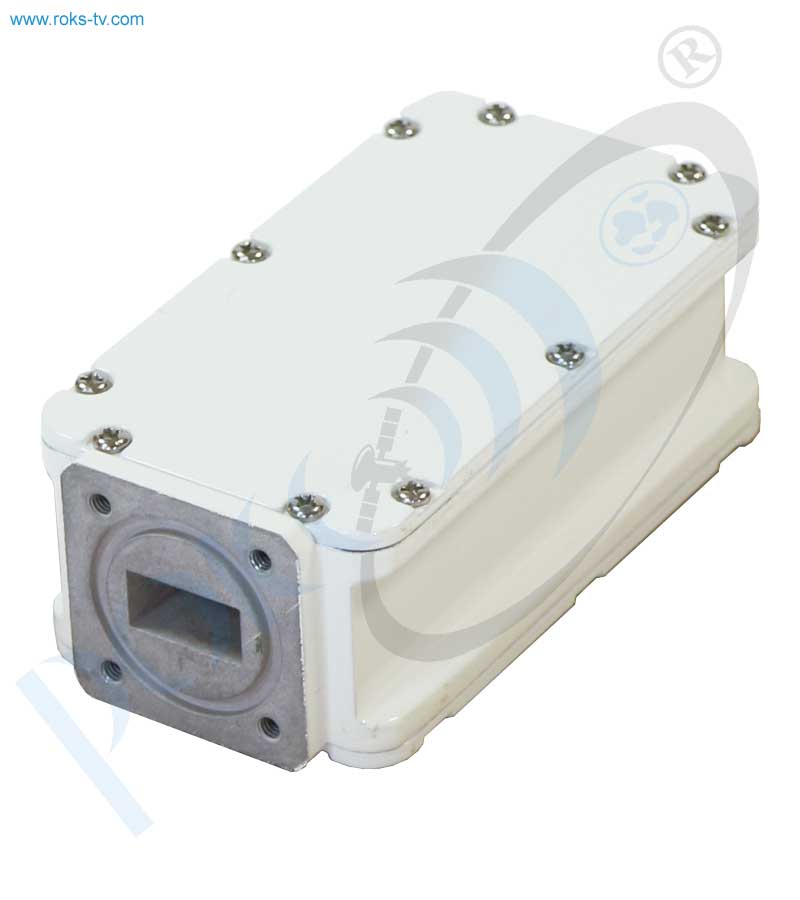

The Low Noise Block Down Converter LNB-KuPxx v1 designed for gain and transform the RF signals from Ku-band to the L-band intermediate frequencies. This block has a waterproof case and could be mounted in close proximity to an antenna. LNB's Parameters correspond to the conditions of MVDS/MITRIS TV broadcasting systems according to standard DVB-S/S2 or DVB-C and could be operates up to 25 carriers. LNB-KuPxx v1 has input flange PBR120 and could be used with regular RRL or recieve antennas.
This LNB could be supplied with next value of Local Oscillator:
- LO 8.80 GHz IN: 9.75 - 10.75 GHz OUT: 950 - 1950 MHz
- LO 9.75 GHz IN: 10.70 - 11.70 GHz OUT: 950 - 1950 MHz
- LO 9.80 GHz IN: 10.75 - 11.75 GHz OUT: 950 - 1950 MHz
- LO 10.00 GHz IN: 10.95 - 11.95 GHz OUT: 950 - 1950 MHz
- LO 10.60 GHz IN: 11.55 - 12.55 GHz OUT: 950 - 1950 MHz
- LO 10.75 GHz IN: 11.70 - 12.70 GHz OUT: 950 - 1950 MHz
- LO 10.80 GHz IN: 11.75 - 12.75 GHz OUT: 950 - 1950 MHz
- LO 11.30 GHz IN: 12.25 - 13.25 GHz OUT: 950 - 1950 MHz
- LO 11.80 GHz IN: 12.75 - 13.75 GHz OUT: 950 - 1950 MHz
- LO 12.80 GHz IN: 13.75 - 14.75 GHz OUT: 950 - 1950 MHz
- LO 13.05 GHz IN: 14.00 - 15.00 GHz OUT: 950 - 1950 MHz
- Or by order
KEY FEATURES:

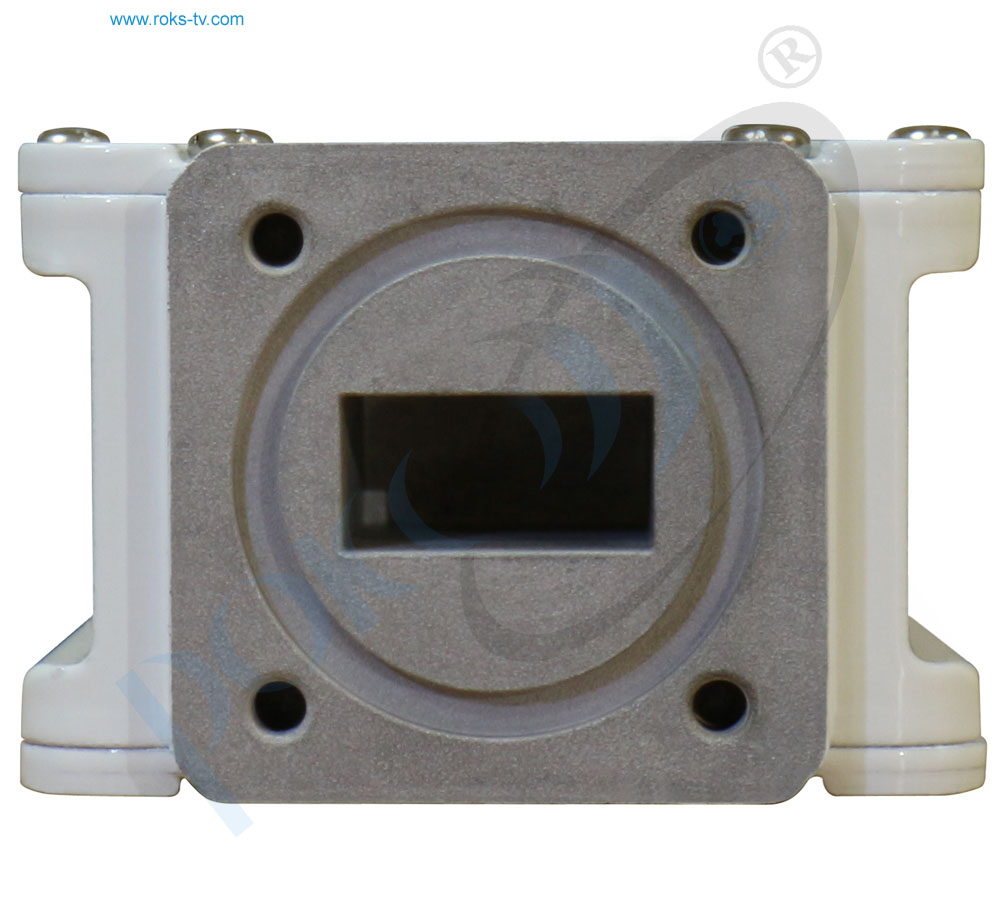

- Flange PBR120 input
- Output power is P1dB +3 dBm
- Input frequencies any 1000 MHz in Ku-band (10 – 15 GHz) by order
- Output frequencies 950 – 1950 MHz
- Min. gain 60 dB
- Oscillator type PLL
- Operates up to 25 carriers
- Designed for operation in MVDS/MITRIS TV broadcasting systems
| Input parameters: | |
|---|---|
| Input Frequency range | 11.7– 12.7 GHz (or any 1000 MHz in Ku-band by order) |
| Input level, max | -57 dBm |
| Input VSWR, max | 2.2 |
| Input interface | Waveguide WR75, Flange PBR120 |
| Local Oscilator: | |
| LO frequency | 10.75GHz (or by order: 8.8; 9.75; 9.8; 10.0; 10.6; 10.75; 10.8; 11.3; 11.8; 12.8; 13.05 GHz ) |
| LO Phase noise: | |
| @1 kHz | -75 dBc/Hz |
| @10 kHz | -85 dBc/Hz |
| @100 kHz | -95 dBc/Hz |
| LO instability | ± 25 kHz |
| Output parameters: | |
| Output frequency range | 950 - 1950 (or by order) |
| Output Power @P1dB | +3 dBm |
| Gain, min | 60 dB |

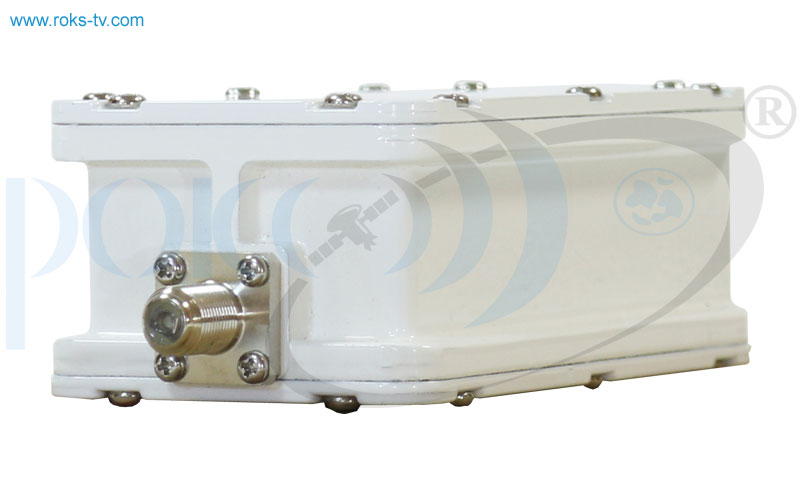

| Output interface | F-type female |
| Output impedance | 75 Ohm |
| Output VSWR, max | 2 |
| Frequency Response: | |
| Flatness over Full Band | ±2 dB |
| Flatness over 27MHz Band | ±0.75 dB |
| Spurious: | |
| Noise Figure (@+25℃) | 0.9 dB max |
| LO leakage, max | -45 dBm |
| Image rejection, min | 45 dBc |
| Power Supply: | |
| Input voltage | 12 VDC – 24 VDC, nominal 18 VDC |
| Power consumption, max | 5.25 W |
| Environmental: | |
| Operating temperature | -30℃ to +60℃ (-22℉ to +140℉) |
| Storage temperature | -40℃ to +80℃ (-40℉ to +176℉) |
| Operating humidity | 0% - 95% |
| Mechanical | |
| Dimensions (W x H x D) | 60x42x126 mm |
| Weight | 0.4 kg |
Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
