LNB-KuPxxD v1
- Description
- Parameters
- Downloads

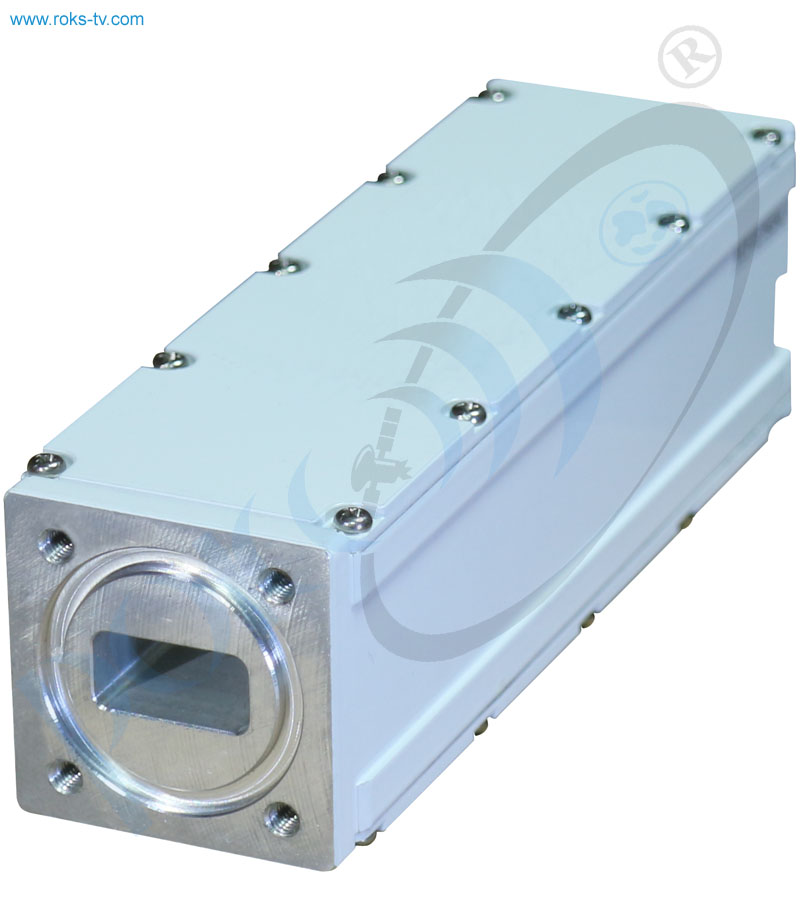

The Low Noise Block Down Converter LNB-KuPxxD v1 designed for gain and transform the RF signals from Ku-band to the L-band intermediate frequencies. This block has a waterproof case and could be mounted in close proximity to an antenna. LNB's Parameters correspond to the conditions of MVDS/MITRIS TV broadcasting systems according to standard DVB-S/S2 or DVB-C and could be operates up to 25 carriers. LNB-KuPxxD v1 has input flange PBR120 and could be used with regular RRL or recieve antennas.
KEY FEATURES:

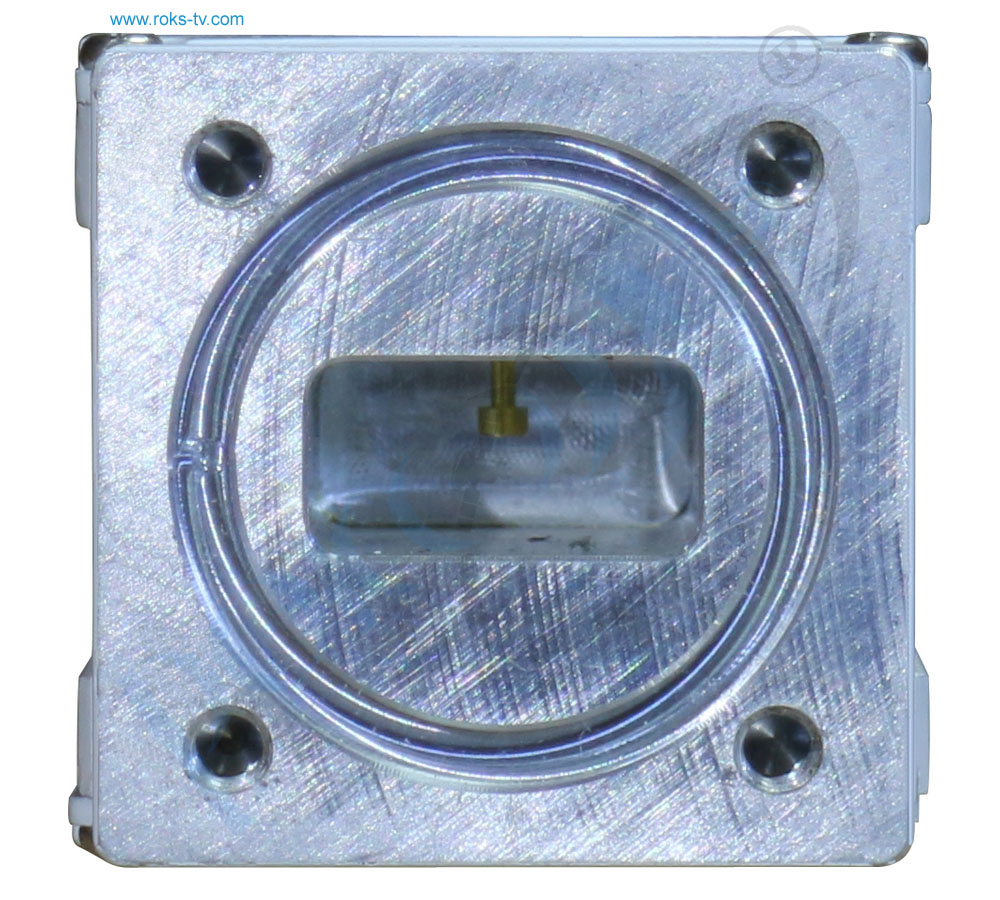

- Flange PBR120 input
- Output power is P1dB +6 dBm
- Input frequencies LB: 10.7 – 11.7 GHz HB: 11.7 – 12.75 GHz
- Output frequencies LB: 950 – 1950 MHz HB: 1100 - 2150 MHz

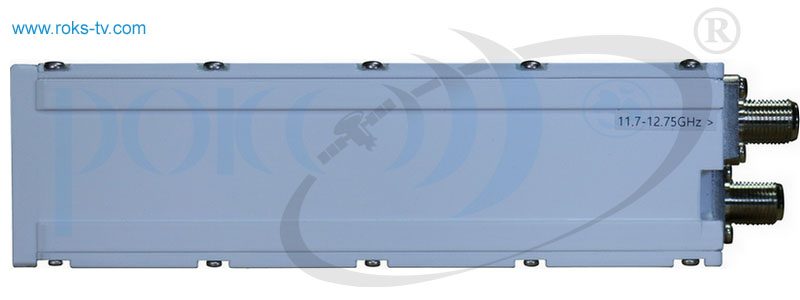

- Dual independet output (LB and HB)
- Min. gain 55 dB
- Oscillator type PLL
- Operates up to 25 carriers
- Designed for operation in MVDS/MITRIS TV broadcasting systems
| Input parameters: | |
|---|---|
| Input Frequency range | LB: 10.7 – 11.7 GHz HB: 11.7 – 12.75 GHz |
| Input level, max | -49 dBm |
| Input VSWR, max | 2 |
| Input interface | Waveguide WR75, Flange PBR120 |
| Local Oscilator: | |
| LO frequency | LB: 9.75; HB: 10.6 |
| LO Phase noise: | |
| @1 kHz | -73 dBc/Hz |
| @10 kHz | -83 dBc/Hz |
| @100 kHz | -95 dBc/Hz |
| LO instability | ± 10 kHz |
| Output parameters: | |
| Output frequency range | LB: 950 – 1950 MHz HB: 1100 - 2150 MHz |
| Output Power @P1dB | +6 dBm |
| Gain, min | 55 dB |

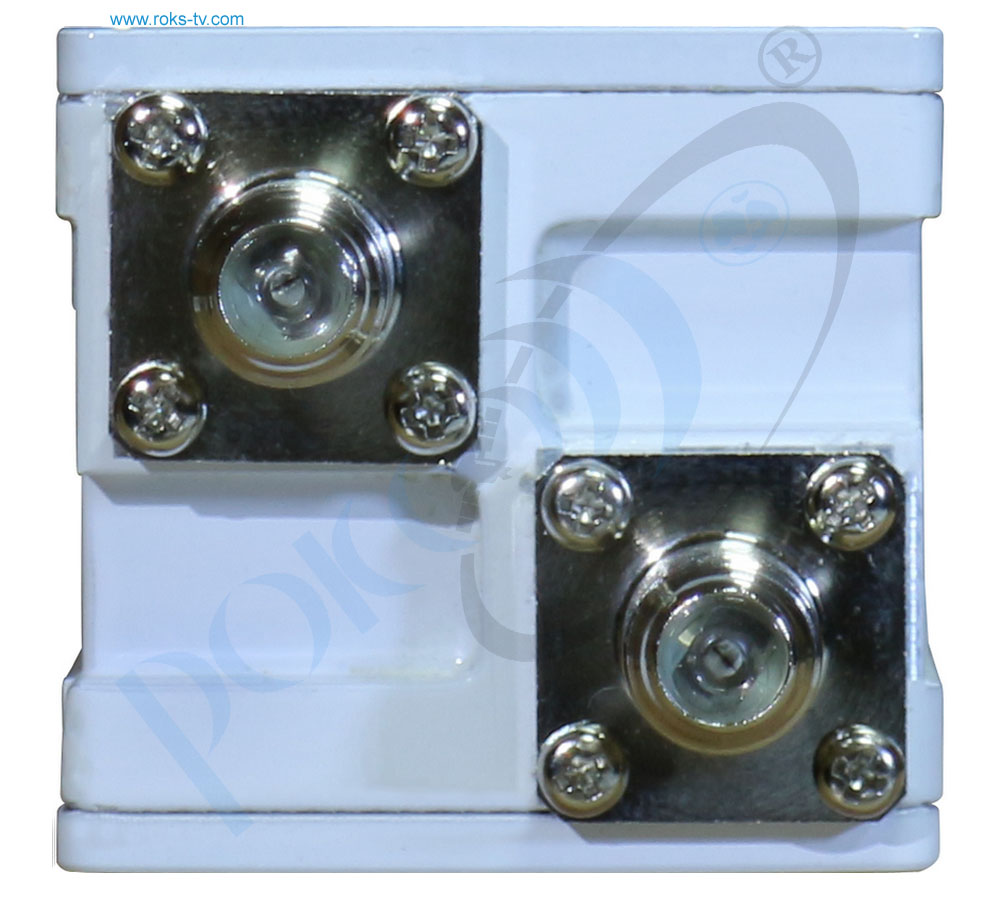

| Output interface | F-type female |
| Output impedance | 75 Ohm |
| Output VSWR, max | 2 |
| Frequency Response: | |
| Flatness over Full Band | ±2 dB |
| Flatness over 27MHz Band | ±0.75 dB |
| Spurious: | |
| Noise Figure (@+25℃) | 0.8 dB max |
| LO leakage, max | -50 dBm |
| Image rejection, min | 50 dBc |
| Power Supply: | |
| Input voltage | 13 VDC – 18 VDC, nominal 18 VDC |
| Power consumption, max | 3.9 W |
| Environmental: | |
| Operating temperature | -40℃ to +60℃ (-40℉ to +140℉) |
| Storage temperature | -40℃ to +80℃ (-40℉ to +176℉) |
| Operating humidity | 0% - 95% |
| Mechanical | |
| Dimensions (W x H x D) | 40x42x169.5 mm |
| Weight | 0.4 kg |
Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
