Log-periodic antenna 1.5-4 GHz

  • Description
  • Parameters
  • Downloads

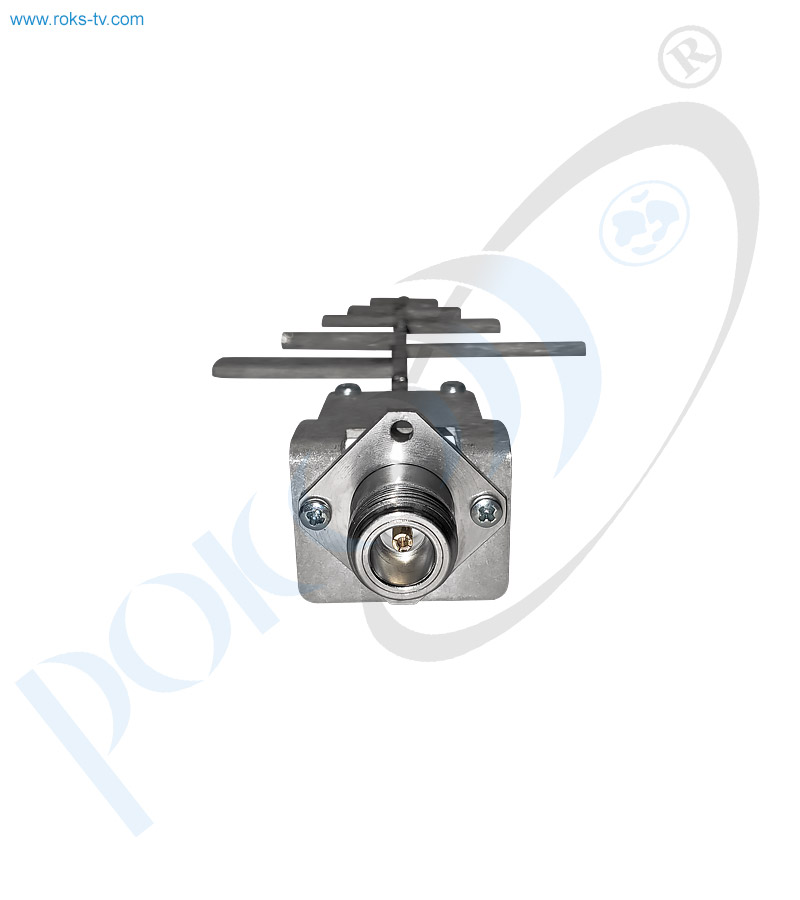

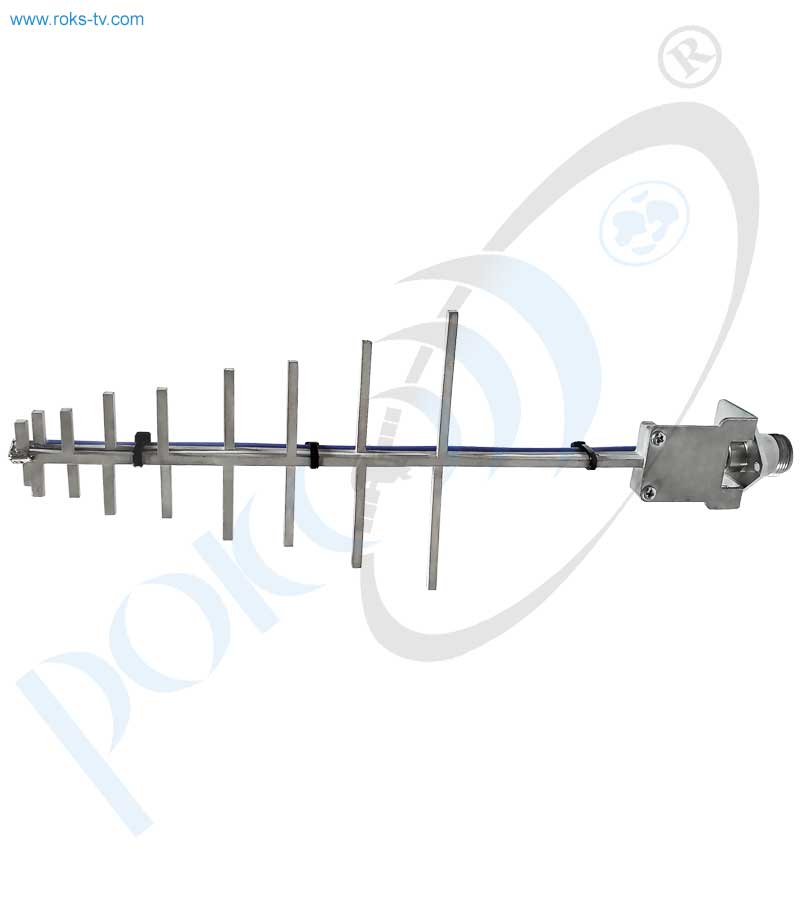

Log-periodic antenna 1.5-4 GHz has radiation pattern in horizontal plane of 55-65 degrees and in vertical plane of 80-105 degrees. This log-periodic antenna has wide frequency range of 1.5-4 GHz which covers L- and S-band.

Purpose: transmitting and receiving signals in L/S-band as a part of main TV broadcasting stations, interactive microwave systems or systems for video information collecting.

ParameterValue
Frequency range, GHz 1.5-4
Gain, dBi, not less 7
Gain variation in the aperture, dB, not more ±2
VSWR, max 1.7
Polarization Linear: vertical
HPBW:
@horizontal min 55°; max 65°
@vertical min 80°; max 105°
Input/output connection N-type (or SMA by request)
Input power (max), W 20
Operating temperature, °C -40 до +80
Humidity 100% @ 25°C

Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
