LSA-KuH120 v2

  • Description
  • Parameters
  • Downloads

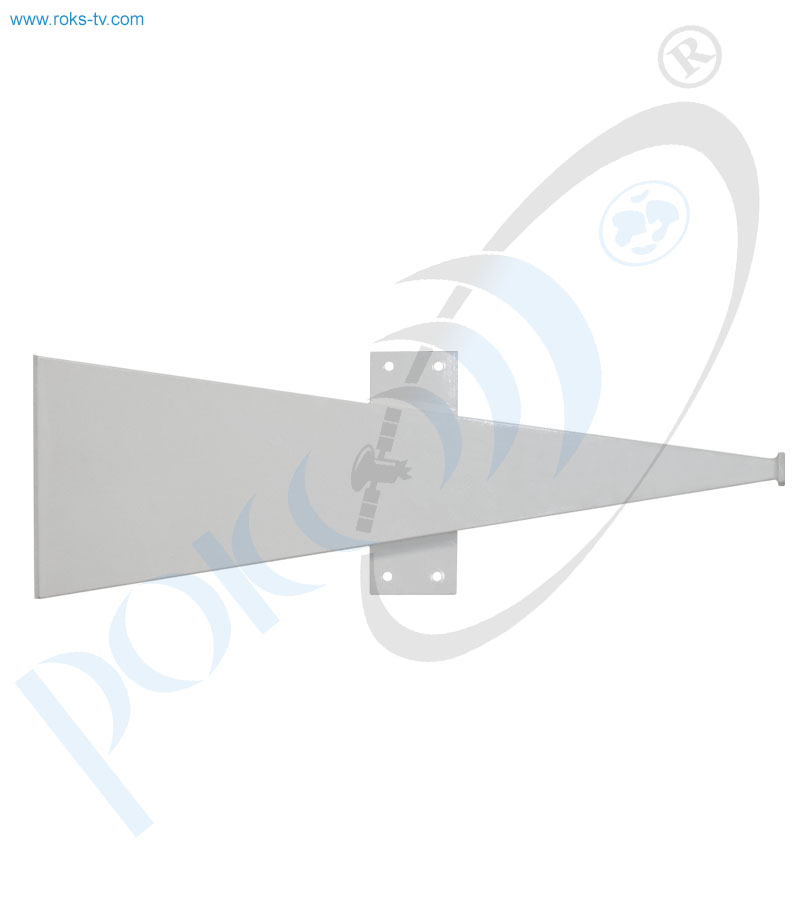

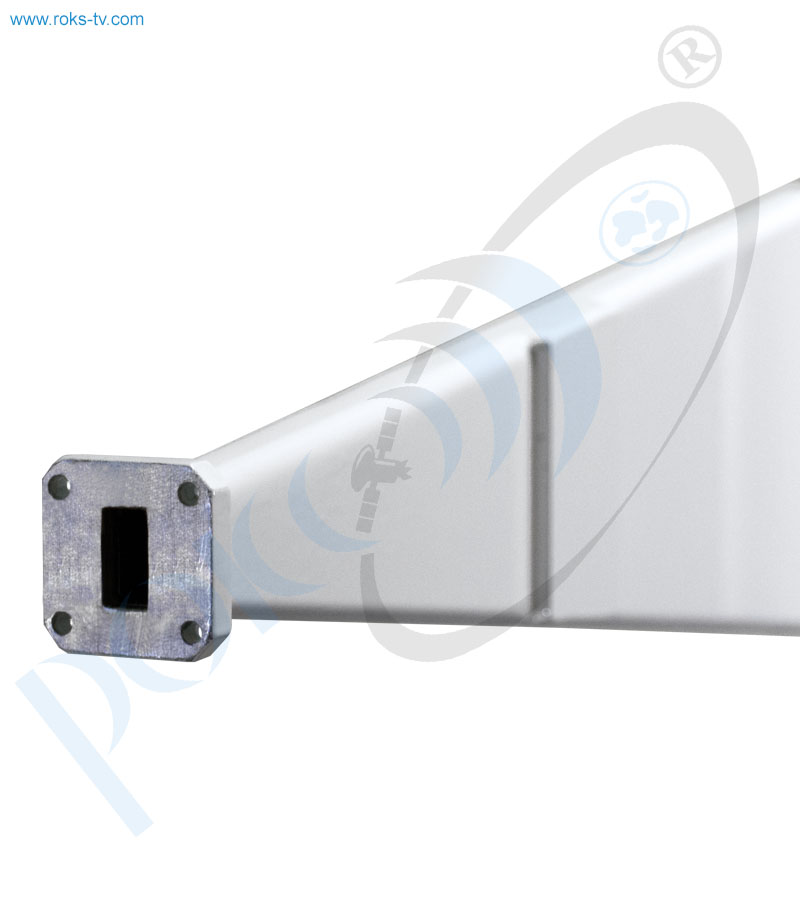

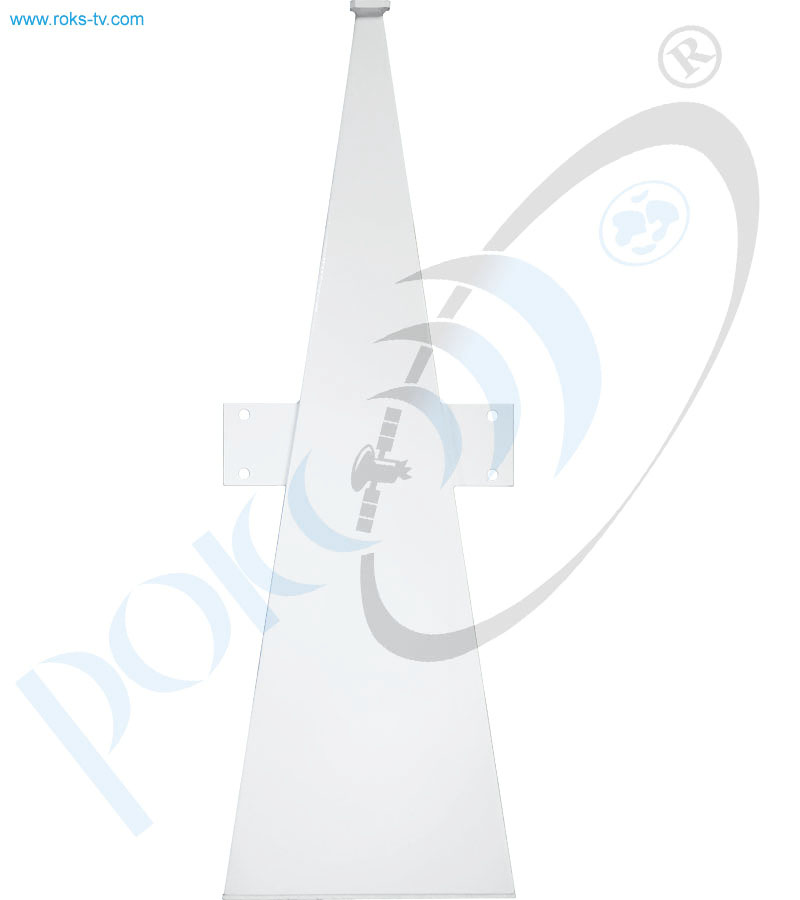

Long sector Antenna Ku-band with the angle of antenna aperture in the horizontal plane 120 deg and a wide frequency range (10.7 - 13.5 GHz).

Purposes: transmitting and receiving signals in Ku -band, as a part of central broadcasting station or repeater, interactive microwave system or video surveillance system.

ParameterValue
Frequency range, GHz 10.7 - 13.5
Gain, dBi 13
VSWR 2
Polarization horizontal
Cross-polarization isolation, dB 25
HPBW:
@horizontal   120°
@vertical 12°
Side-lobe level relative to the main beam, dB
Gain range in aperture, dB ±1
Temperature range, °C -50 to +80
Humidity 100% where 25°C
Size, mm 820х60х300
Weight, kg 3.0
Directional diagram tuning, deg:
 Elevation angle  ±30
 Azimuth ±360

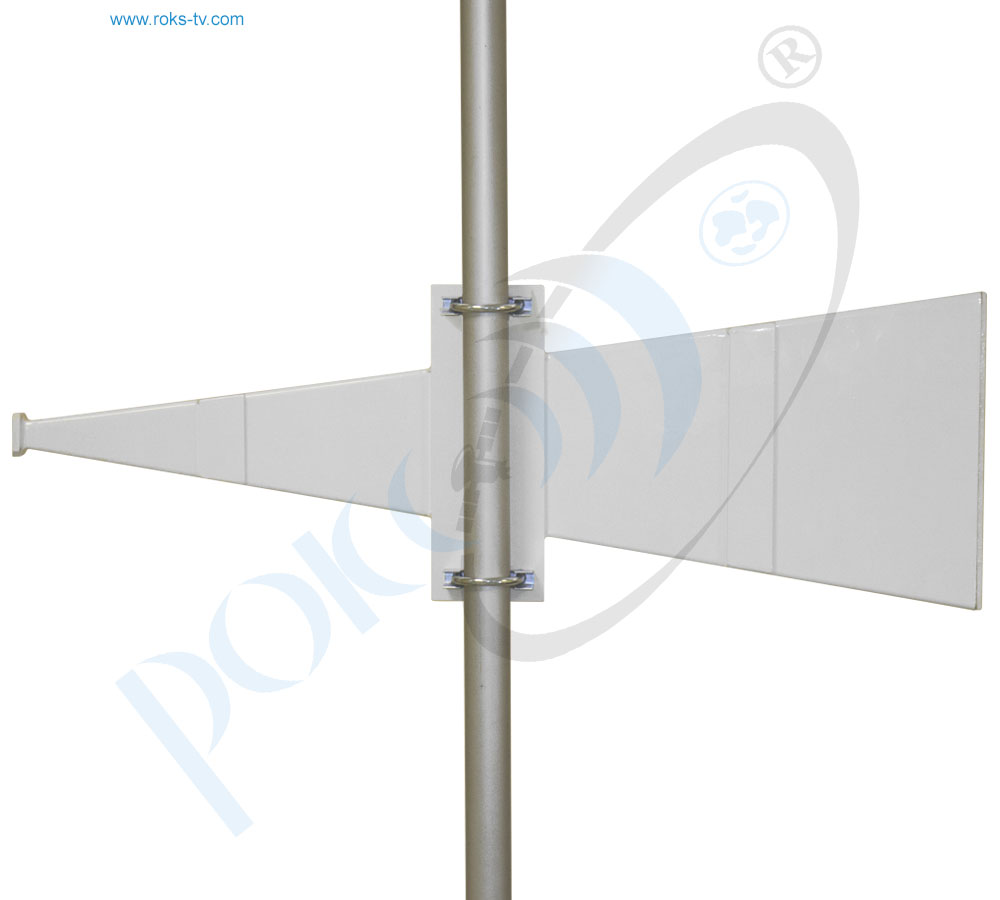

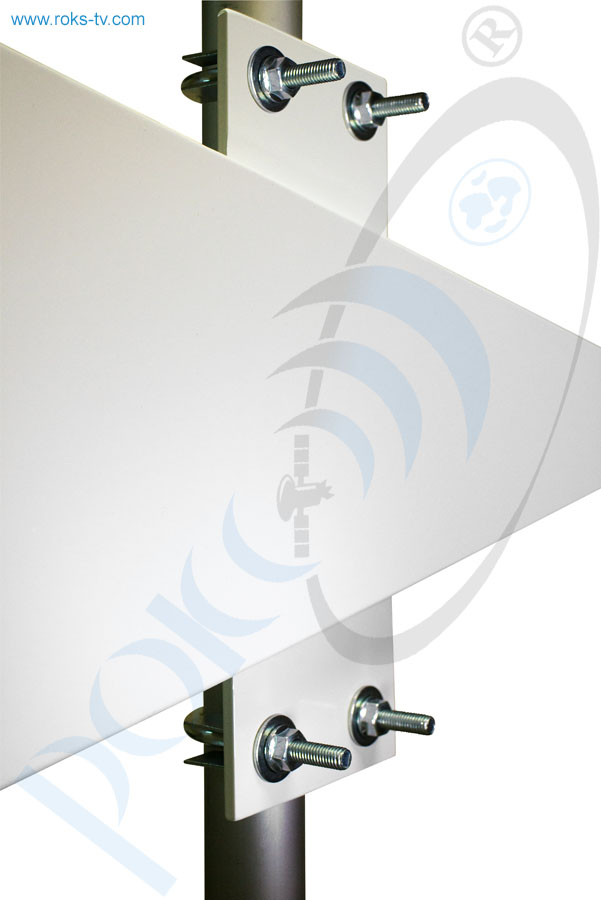

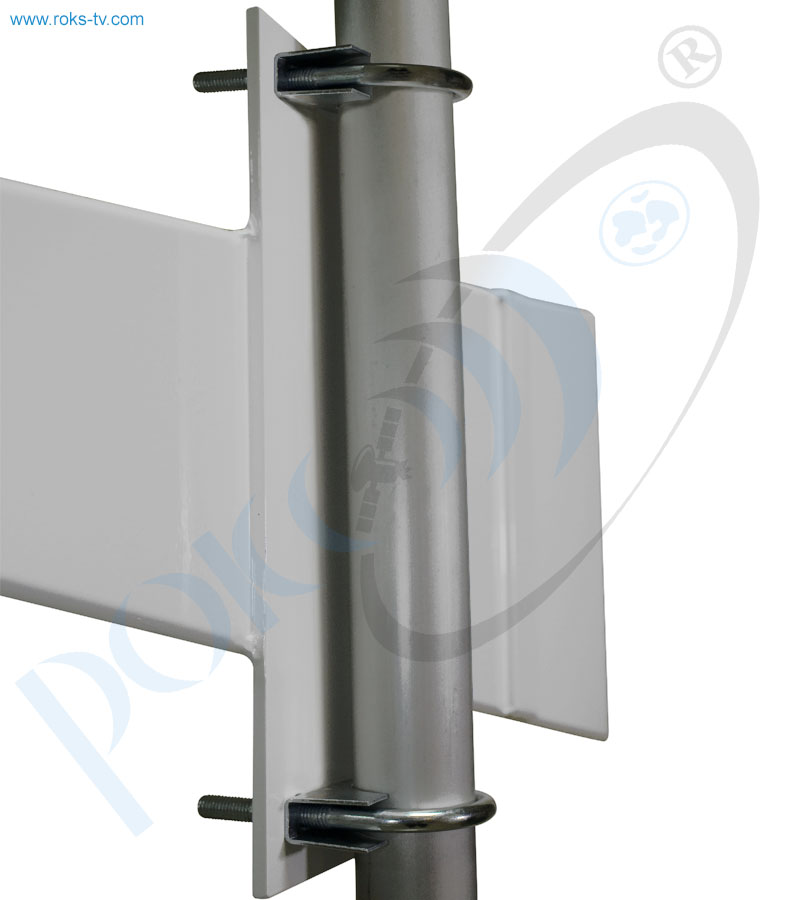

Mounting Installation on the pipe diameter up to 45 mm
Input power, W 20
Body Dust/moisture proof

Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
