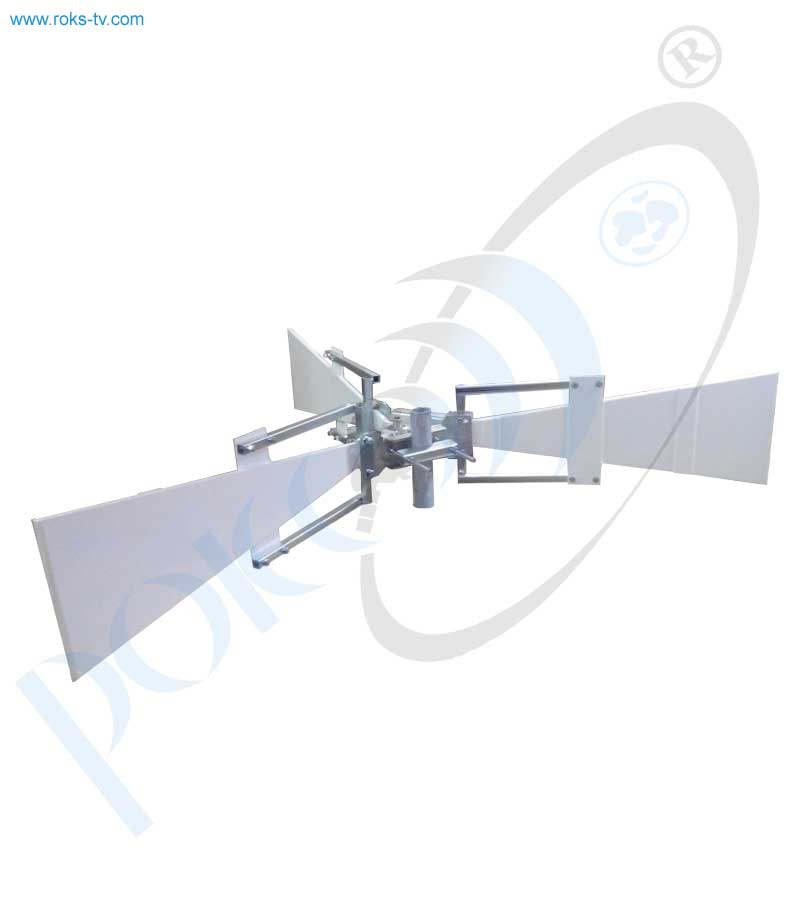

OLSA-KuH3 v1 - omni long sector assembly with three antennas LSA-KuH120. Gain: 8 dB, Beam (V): 12°
Active
Sector assembly
- Description
- Parameters
- Downloads
The antenna assembly is intended for covering of the cell subscription in the form of circle, and must be opened 360°. Nature of the terrain at the point of installation requires an adaptive tuning the radiation pattern in elevation and azimuth in three directions.
This assembly should, in some cases, replace and add in some previously defined triple reflector antenna with OMNI. Expected impact - less susceptible to weather conditions due to significantly lower the work surface (be in view less buildup of snow, ice and salt dust), and the ability to adjust the pattern.
| Parameter | Value |
|---|---|
| Frequency range, GHz | 10.7-13.5 |
| Gain, dBi, at least | 8 |
| Gain variation in the aperture, dB, not more | ±2 |
| VSWR, max | 2 |
| Polarization | Horizontal |
| Cross-polarization, dB, not less | 25 |
| HPBW: | |
| @horizontal | 360° |
| @vertical | 12° |
| Input power, W, to | 20 |
| Waveguide | WR-75 flange |
| Operating temperature, ° C | -50 до +80 |
| Humidity | 100% @ 25°C |
| Dimensions | H 1325 mm, L 1530 mm, W 280 mm |
| Weight, kg, not more | 18 |
| Mount | By order |
| Casing material | Hermetically sealed |
