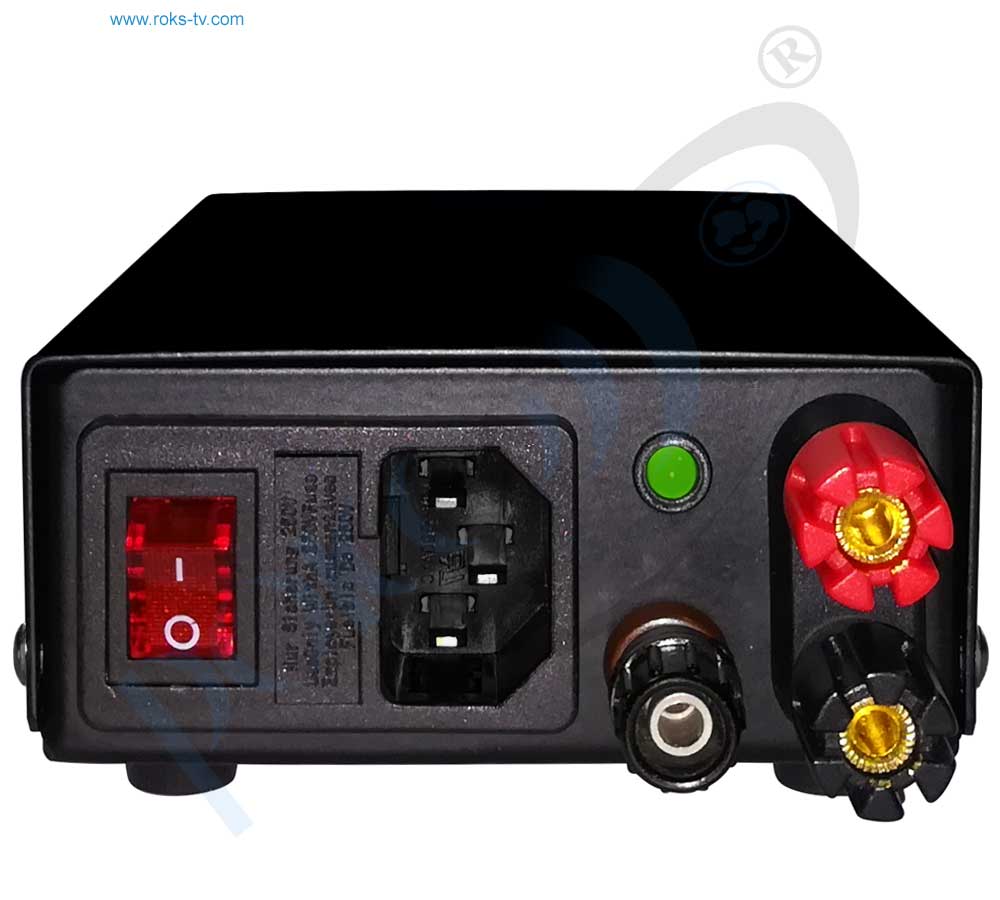

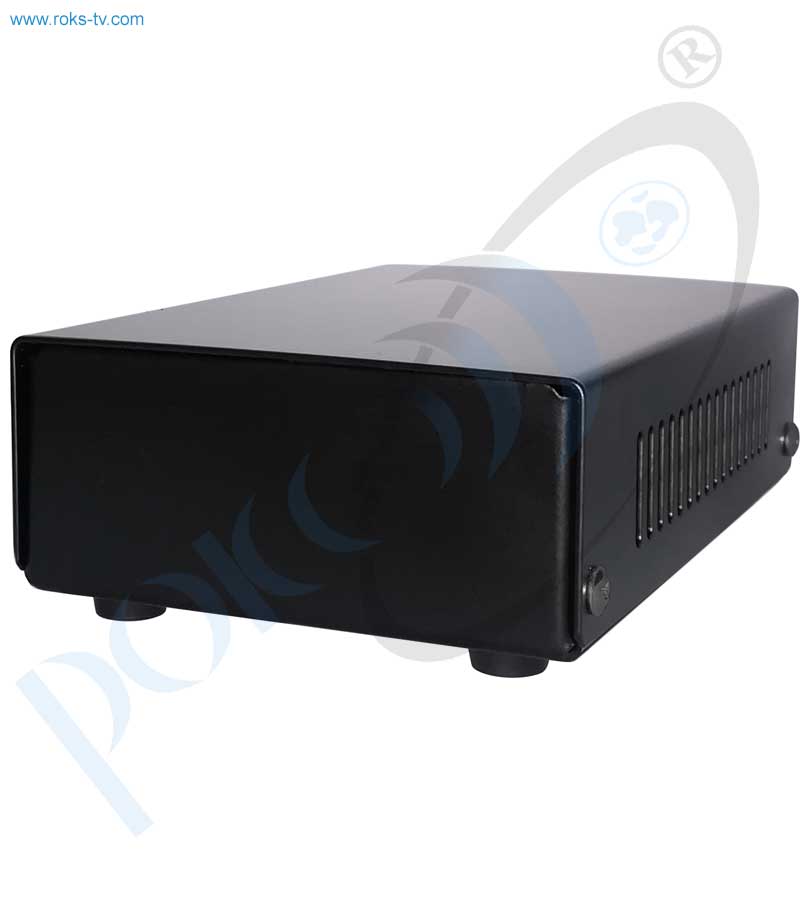

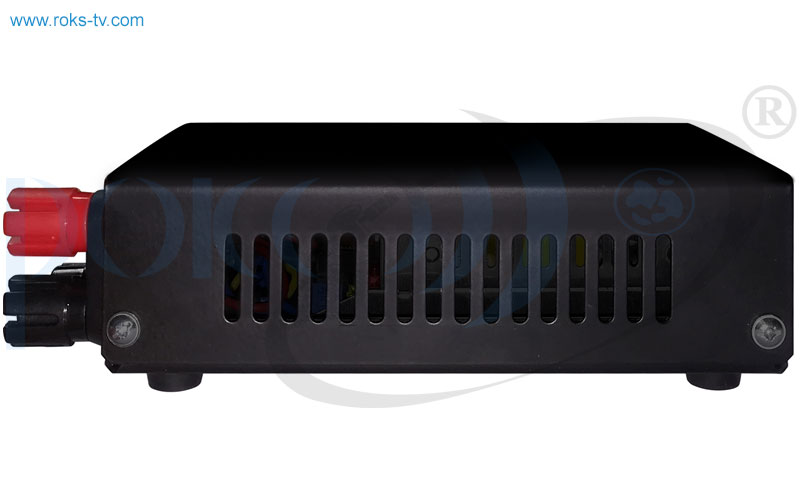

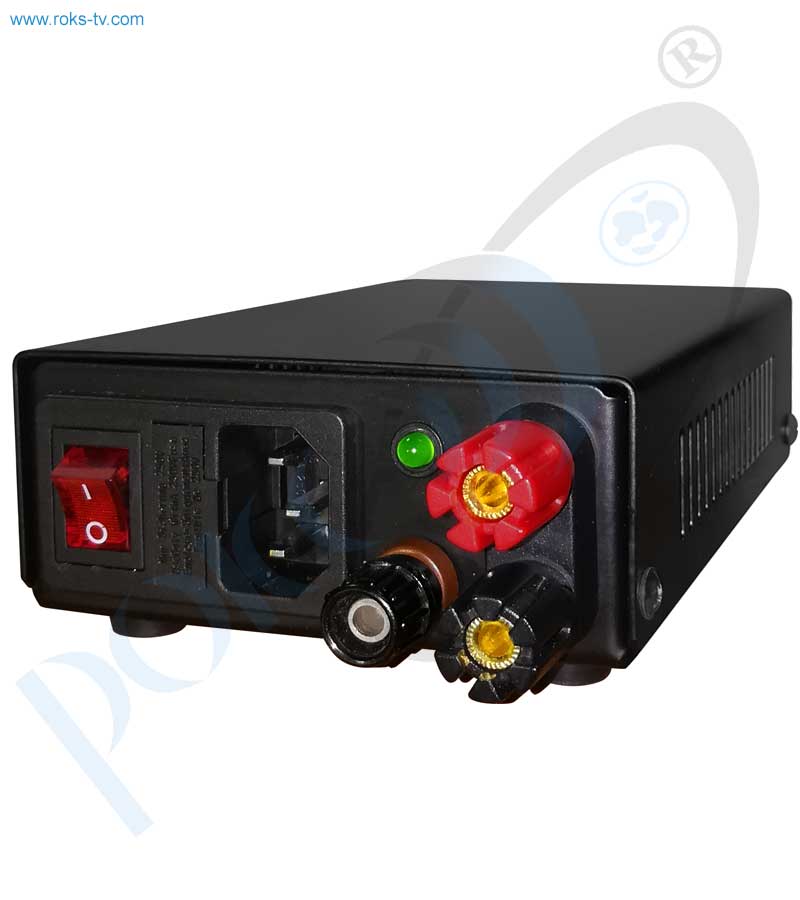

PSU 12-24V
Power supply unit 12 - 24V, 36W has stabilized voltage ±1V and output short circuit protection, fuse protected. Designed for powering of receiving and transmitting units through the DC injectors.
Active
- Description
- Parameters
- Downloads
KEY FEATURES:
- Input voltage ∼100 - 240 V
- Output voltage range 12 V - 24 V
- Output power 36W
| Outputs | |
|---|---|
| Output voltage | 12 V - 24 V |
| Output power | 36W |
| Output current | 3.0A @ 12V; 1.5A: 24V |
| Noise | ≤0.5% |
| Swinching freauency | 65 - 130 kHz |
| Temperature instability | ≤1% |
| Input | |
| Input voltage | ∼100 - 240 V |
| Input frequency | 40 - 400 Hz |
| Efficiency | ≥85% @ 12V; ≥88% @ 24V; |
| Protection | |
| Max power | 43 W |
| Output short circuit protection | automatical |
| Environmental | |
| Operating Temperature | -25℃ to +70℃ |
| Storage Temperature | -40℃ to +85℃ |
| Operating Humidity | 20% - 90% |
| Mechanical | |
| Dimensions (W x H x D) | 97 х 45 х 17 mm |
| Weight | 0.680 kg |
Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
