SWA-Ku360 v2

  • Description
  • Parameters
  • Downloads

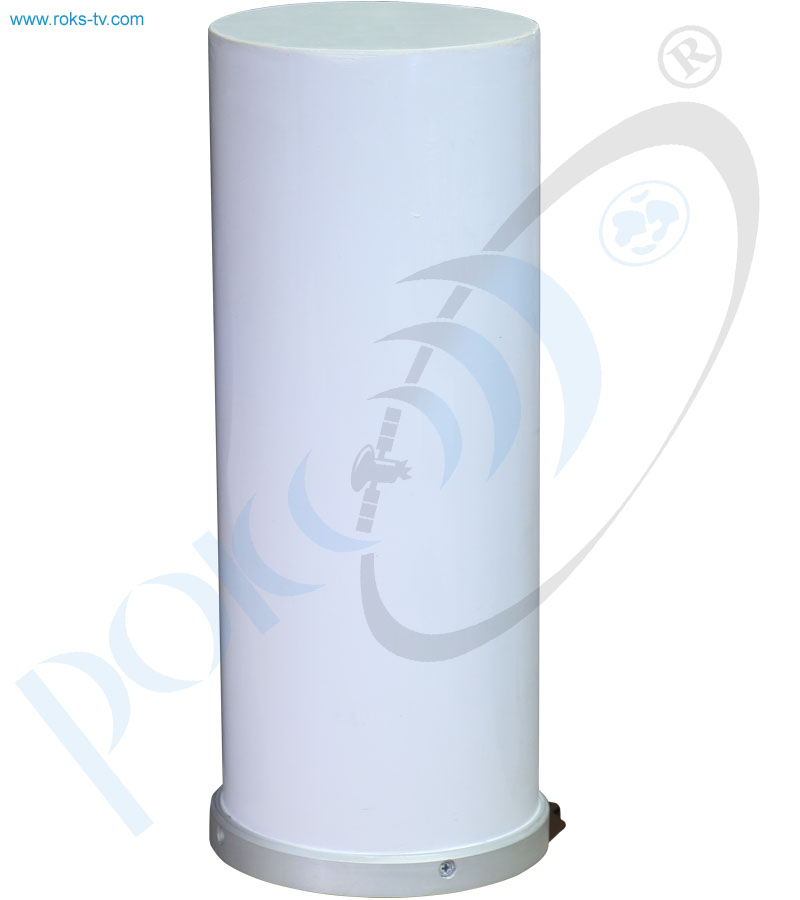

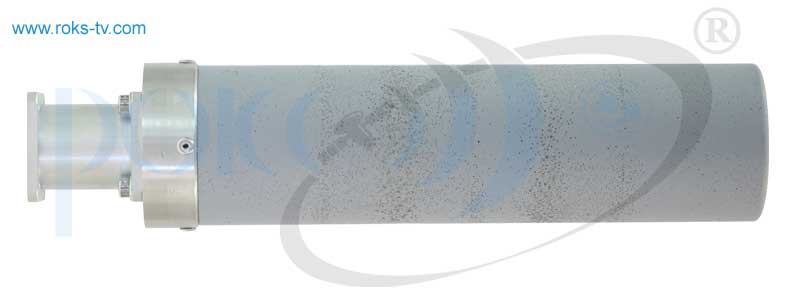

Ku-band OMNI slotted waveguide antenna designed for MVDS/MMDS broadcasting systems at Ku-band range. It has 360deg pattern and high Gain 13dBi. Ku-band OMNI SWA has compact dimensions, can be installed with minimal visibility and windage. Signal transmitted by such antenna can be received by typical Ku-band SAT dish and LNB


  • Radiation pattern: 360 deg
  • Gain: 13 dBi
  • Compact dimensions

Frequency range, GHz 10.0-15.0 (any 800MHz of this range)
Gain, dBi, at least 13
Gain variation in the aperture, dB, not more ±2
VSWR, max 2
Polarization Linear, horizontal, vertical (by order)
Cross-polarization, dB, not less 25
@horizontal 360°
Input power, W, to 20

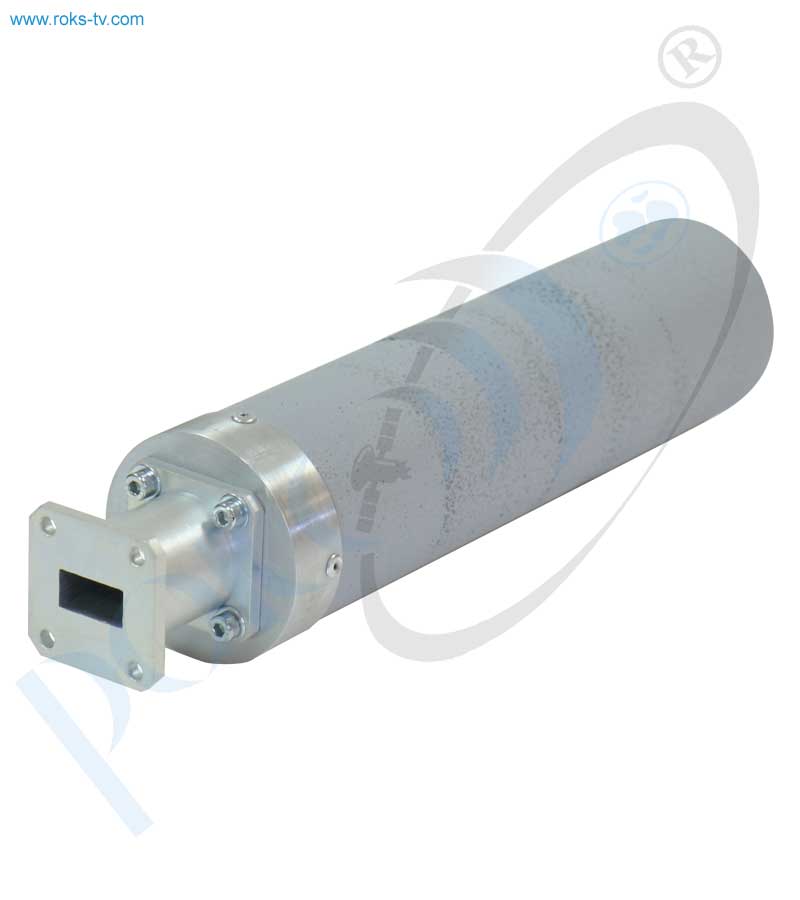

Waveguide WR-75 flange
Operating temperature, ° C -40 до +80
Humidity 100% @ 25°C
Dimensions, mm, not more 250x60x60
Weight, kg, not more 1

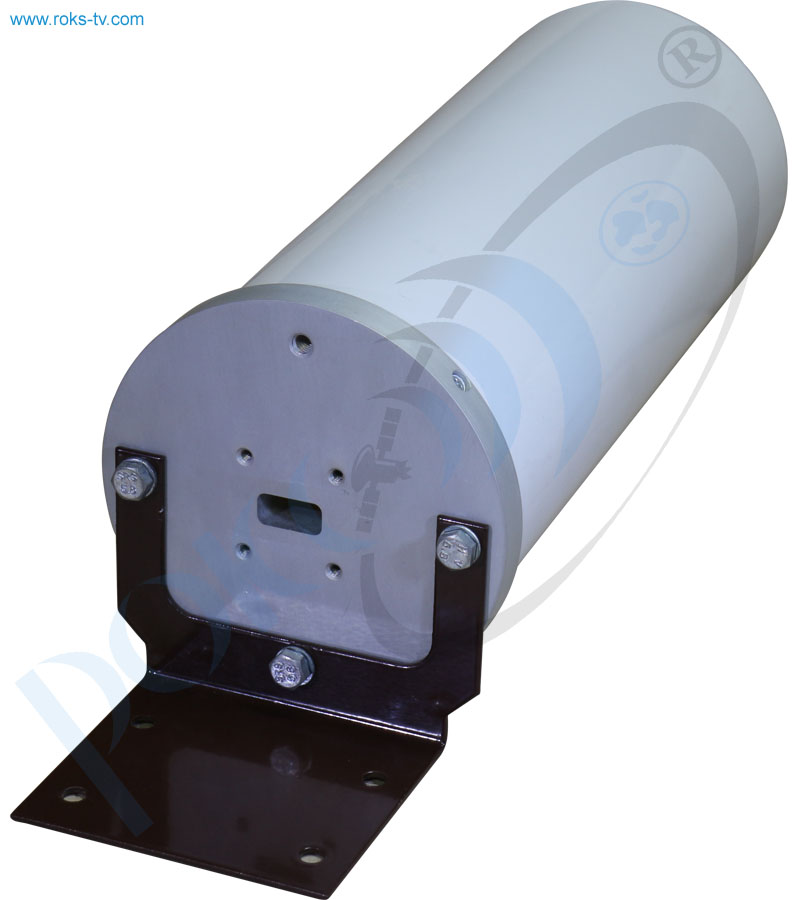

Mount Mounting on a vertical pipe with a diameter of 45mm
Casing material dust/moisture proof

Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
