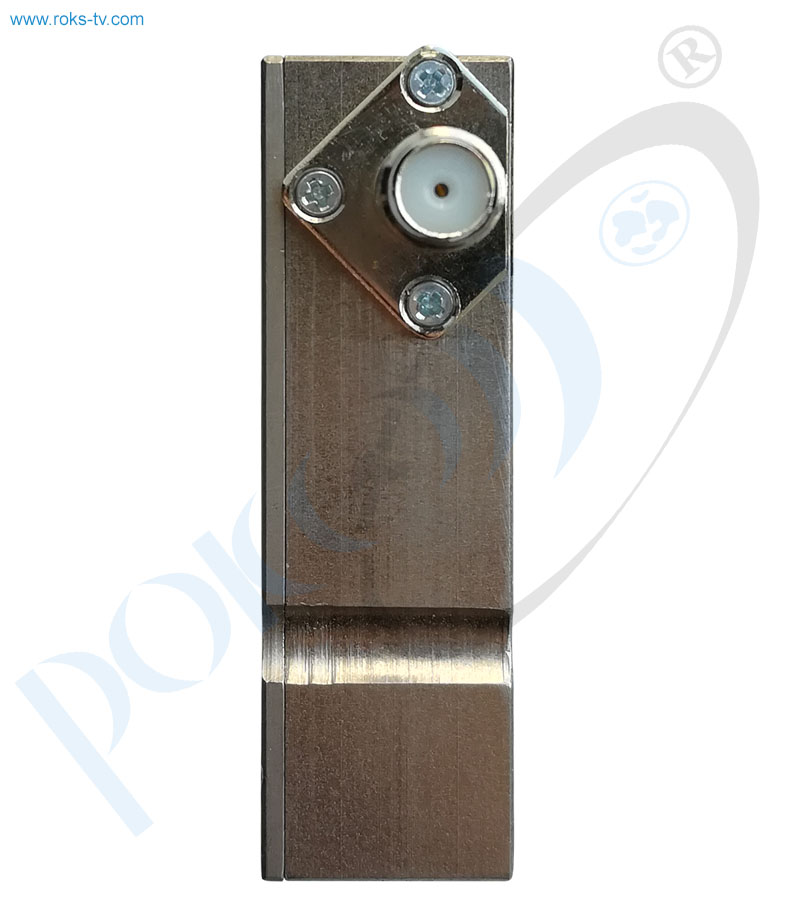

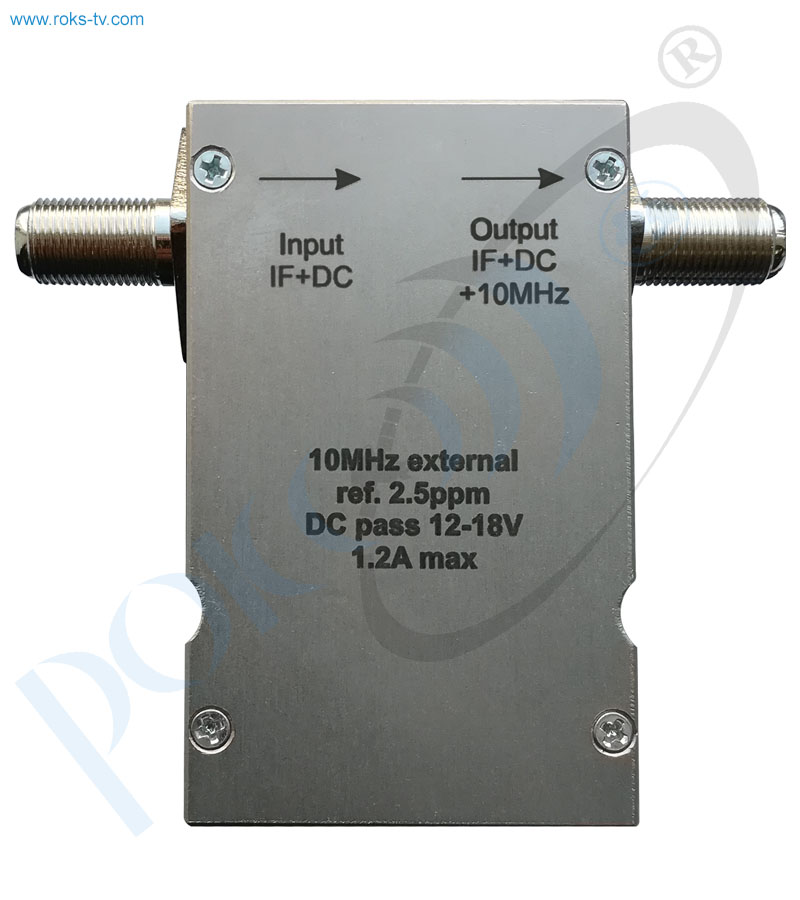

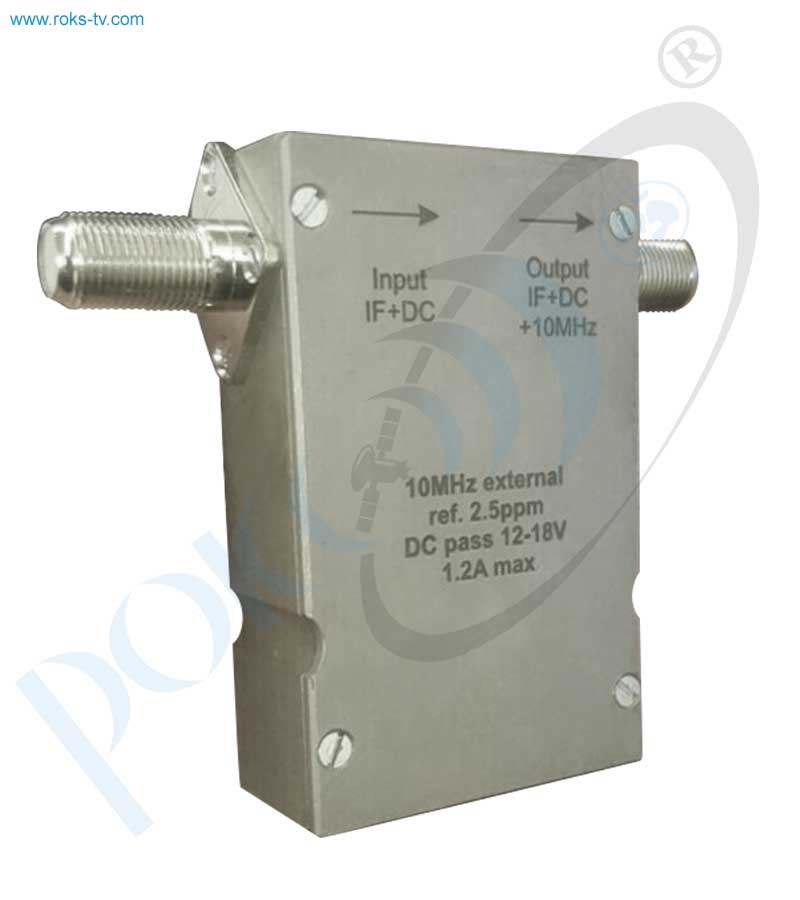

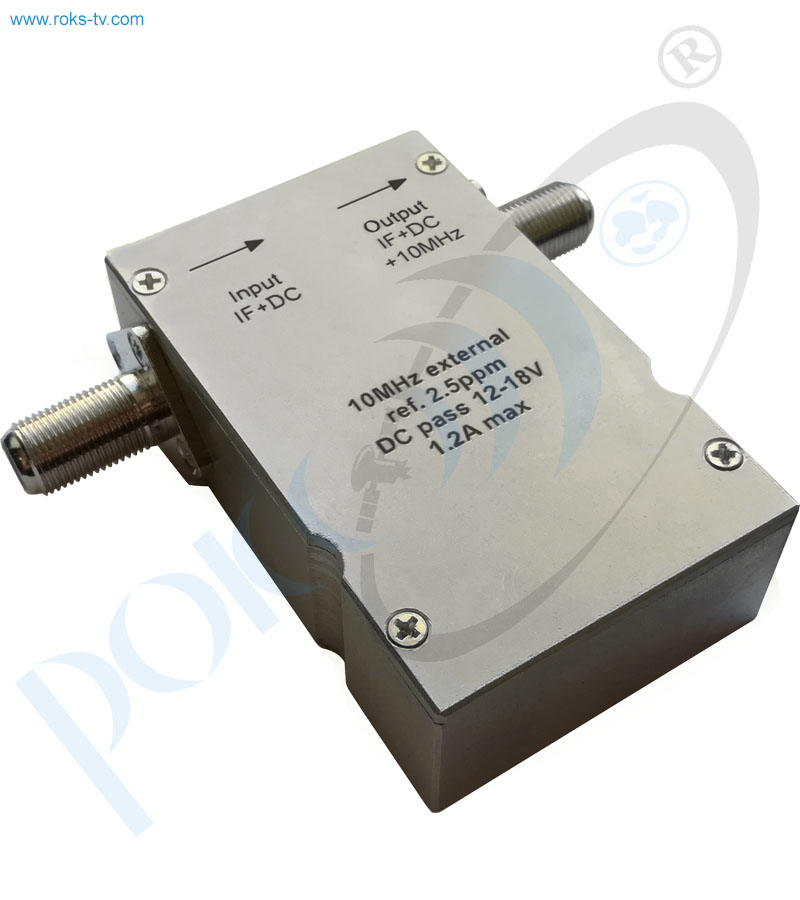

10 MHz reference generator
10MHz reference generator is high stable oscillator intended for supplying of reference signal to the BUCs or LNBs with external reference.
Out of production
- Description
- Parameters
- Downloads
10MHz reference generator is high stable oscillator intended for supplying of reference signal to the BUCs or LNBs with external reference. This model is 2in1 device - it can be Reference and DC injector same time, depends from type of DC supplying (DC pass or External DC). 10MHz reference generator can be used in MVDS systems, based on BUCs or/and LNBs with external reference, Uplink stations or receiving antenna stations. Can be made as multichannel Rack mount device by order

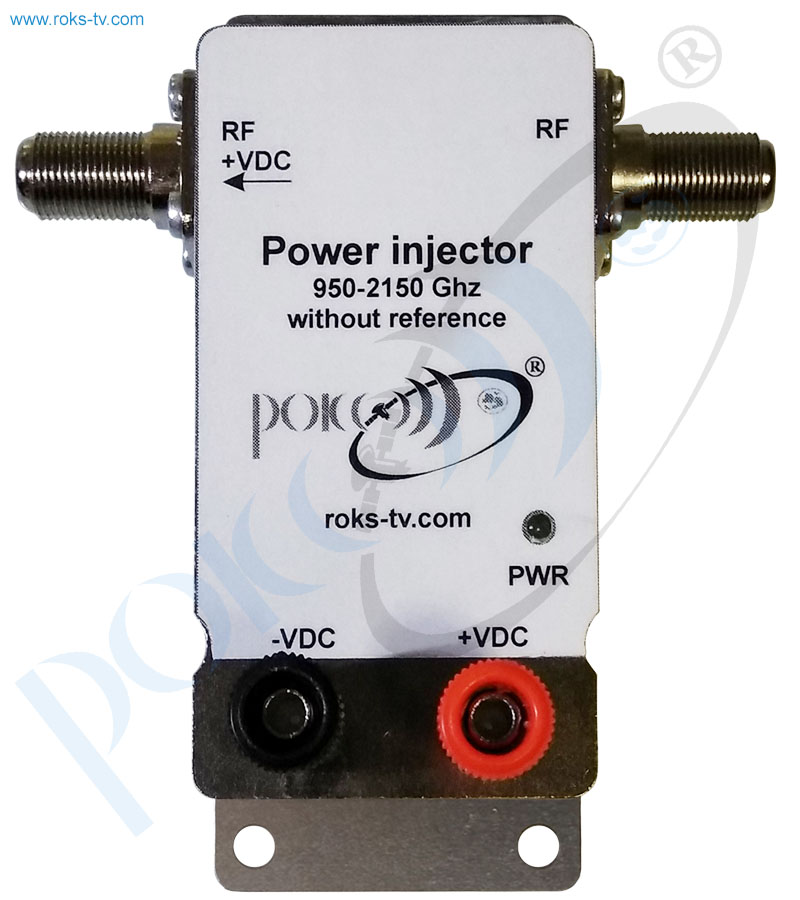

The 10MHz reference generator is raplaced by the following DC Injector with 10MHz reference:
 |
| DC Injector |
| General parameters | |
|---|---|
| Frequency | 10 MHz |
| Output | clipped sine wave |
| Output load | 10 KOhm @ 10pF |
| Frequency stability | ±2.5 ppm |
| Power Supply | |
| Input Voltage | +12 .. +18 V |
| Powering type | DC pass, external (optional) |
| DC pass | 1.2 A |
| Power Consumption | 0.7 W |
| Environmental: | |
| Operating temperature | -10℃ to +60℃ |
| Storage temperature | -40℃ to +80℃ |
| Operating humidity | 100%, non‐condensing |
| Mechanical | |
| Dimensions (W x H x D) | 70x83x21 mm |
| Weight | 0.14 kg |
