DC Injector

  • Description
  • Parameters
  • Downloads

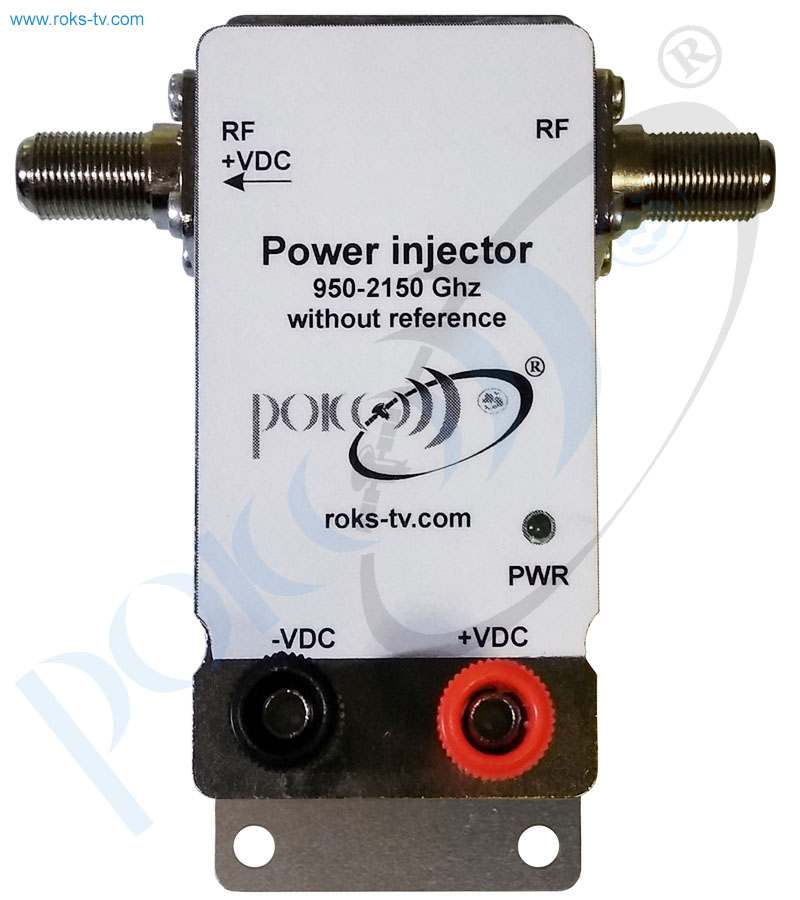

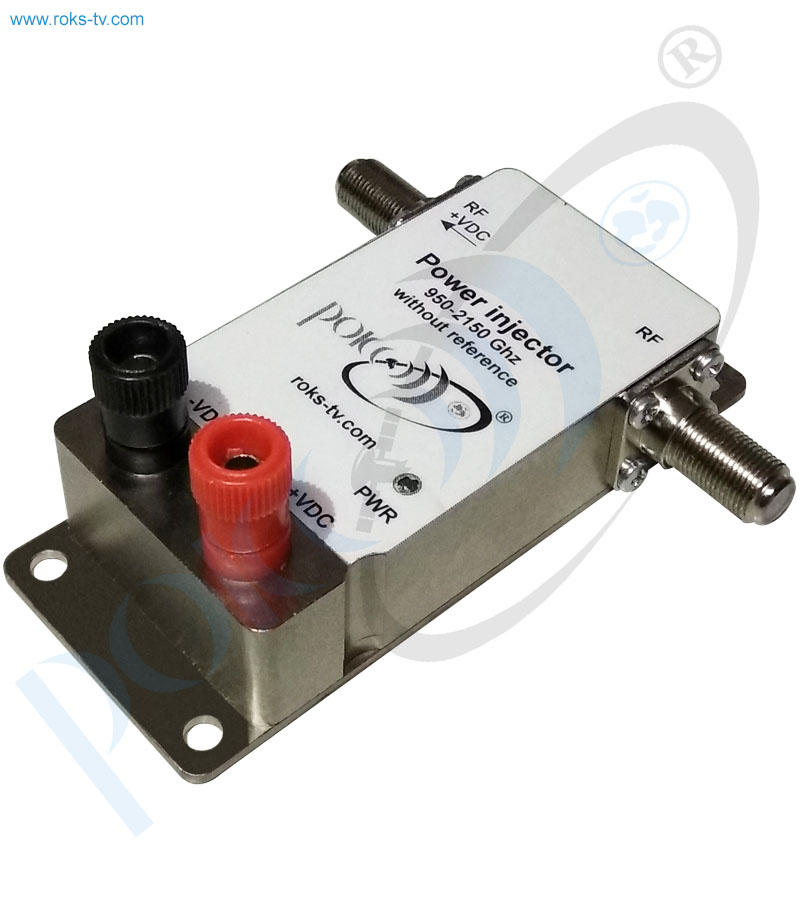

The DC Injector can supply LNB and/or BUC with same VDC via radio-frequency cablе.

KEY FEATURES:

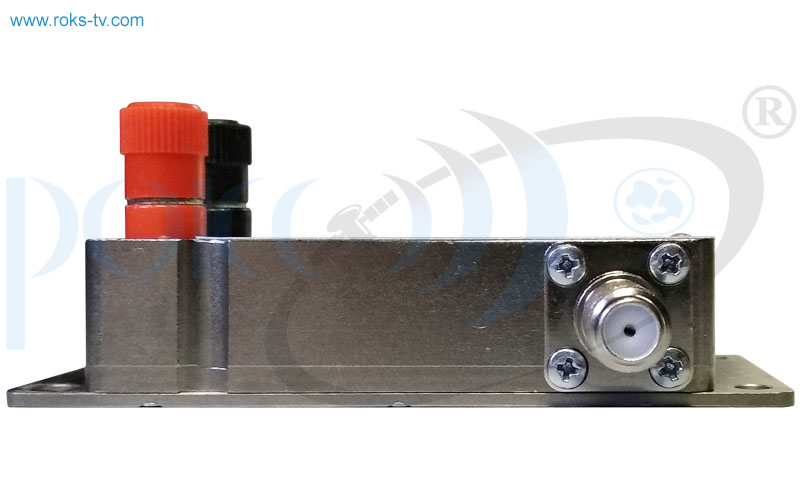

  • DC Injector has easy-to-use conectors of banana jack type
  • DC Injector can be supplied by reference generator of 10 MHz (optional)

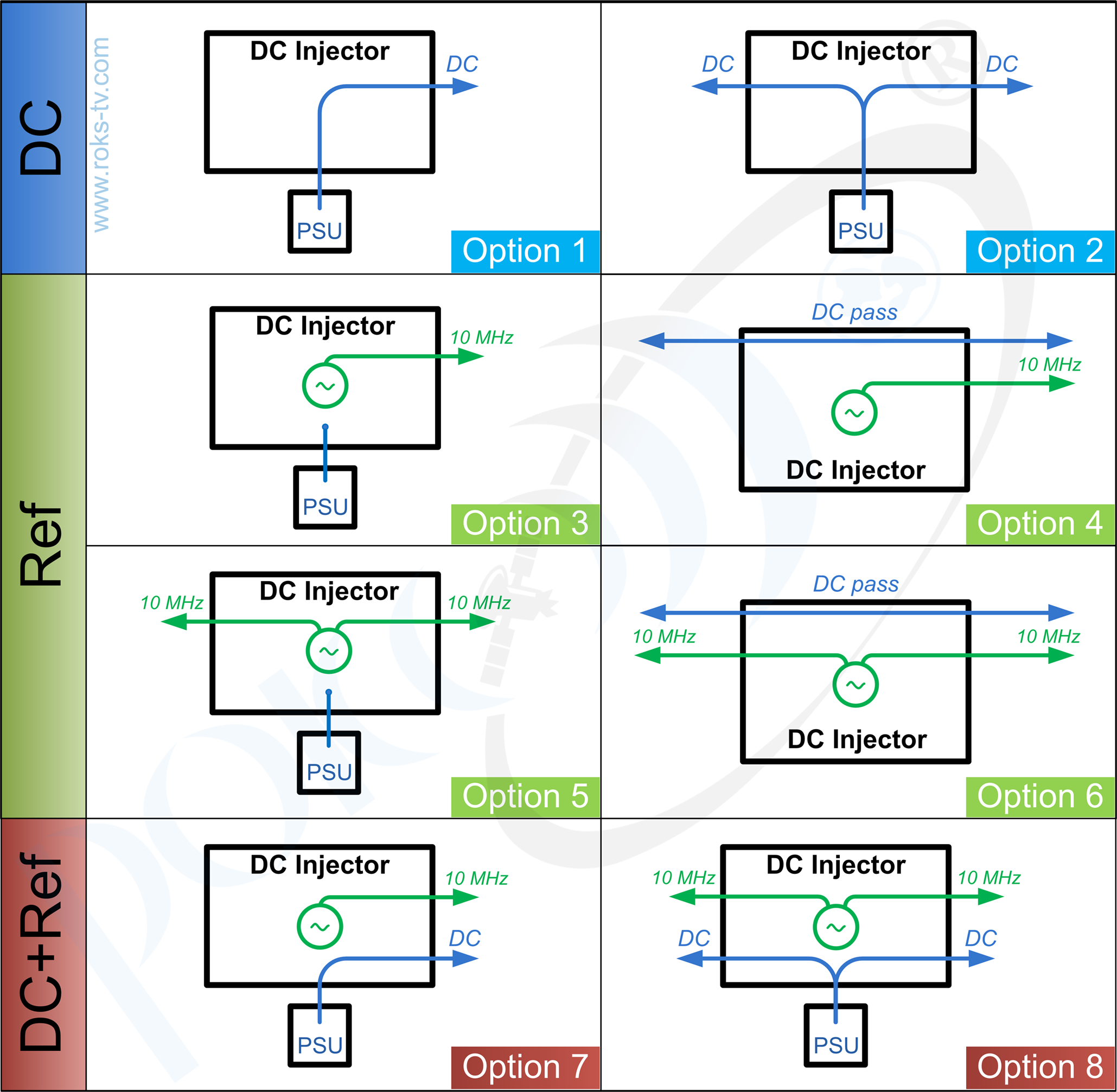

The DC Injector can be manufactured in the following 8 modifications:

1) with DC injection
DC injector with DC pass



2) with reference of 10 MHz
DC injector with Reference



 3) including both DC injection and referenceDC injector with DC pass and Reference

ParameterValue
Frequency Range 950-2150 MHz
Impedance & type of RF connectors 50Ω N-type;
75Ω F-type
Insertion Loss <1.0 dB (full band)
Flatness ± 0.5 dB (full band)   ± 0.2 dB (Any 36MHz)
Return Loss 17 dB
LNB Load Up to 2 A maximum
