SSA-KuH180 v2

  • Description
  • Parameters
  • Downloads

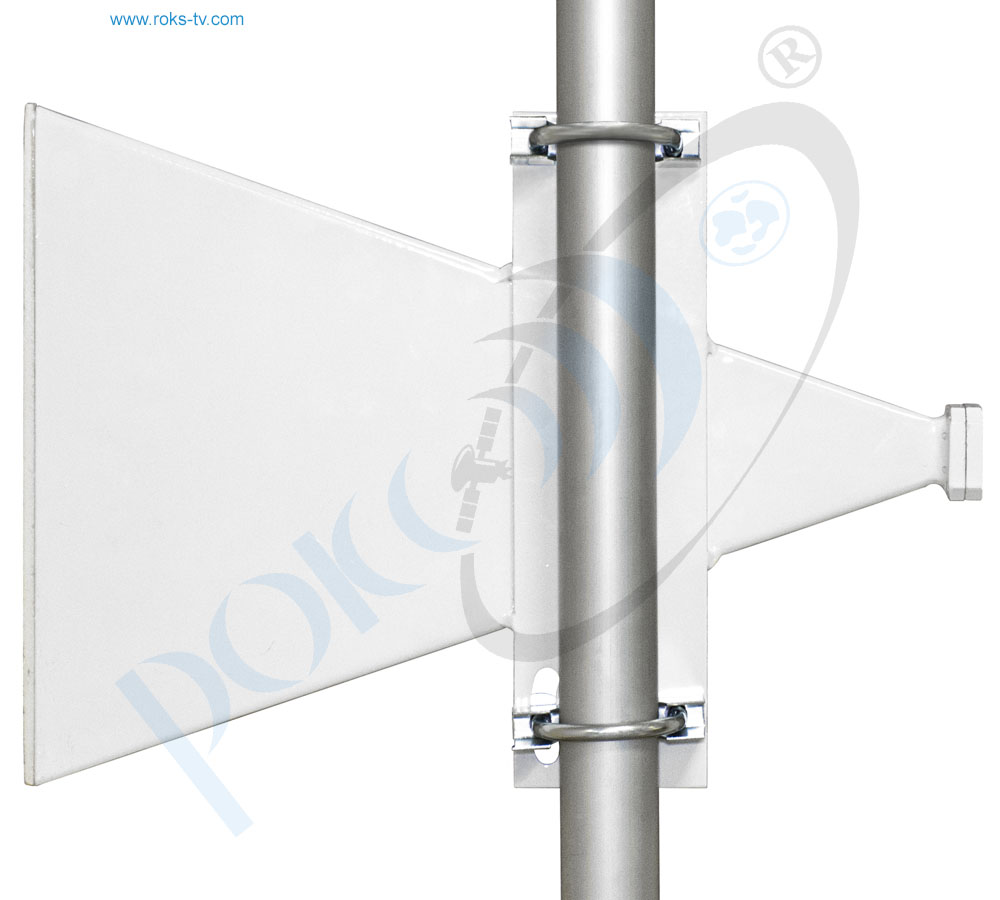

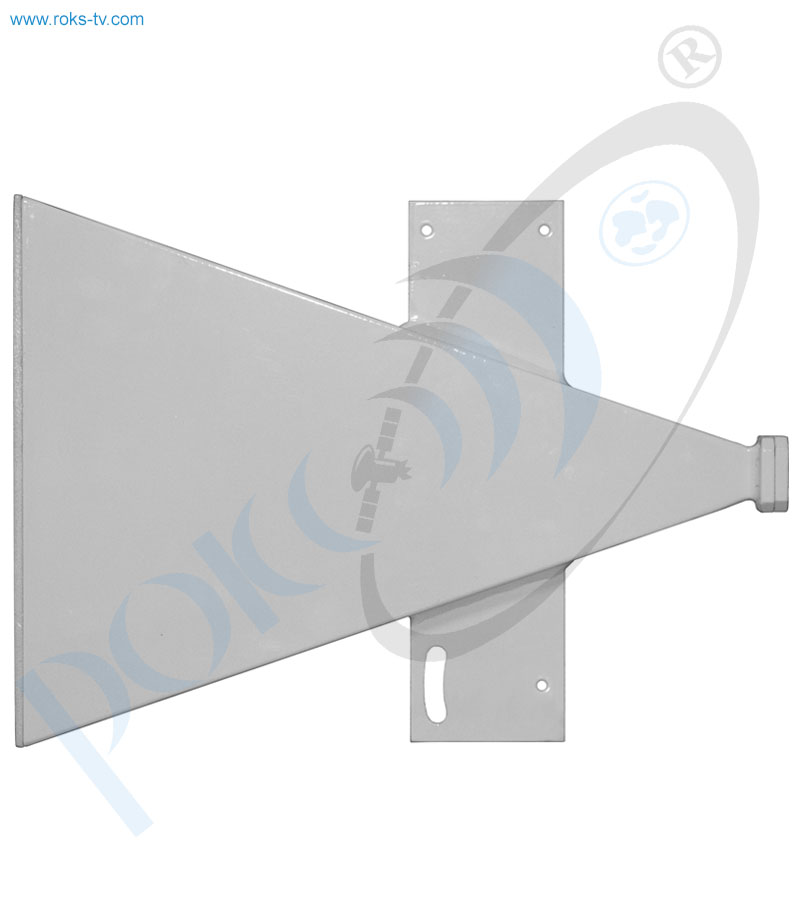

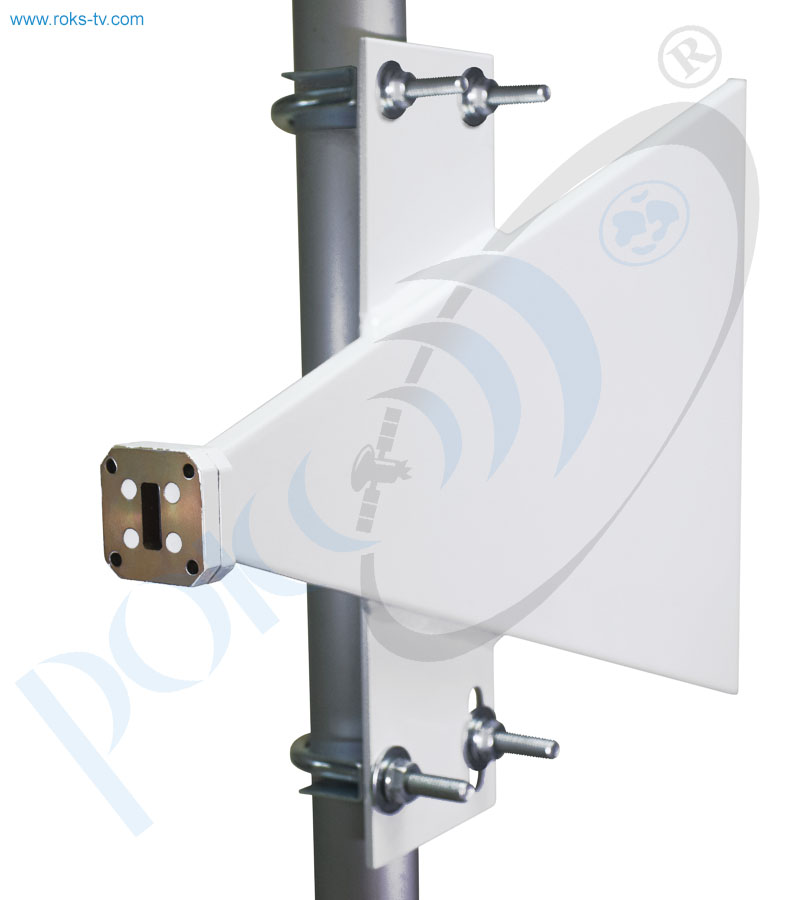

Short Sector Antenna Ku-band has an angle of aperture in the horizontal plane 180 degrees and wide frequency range (10.7 - 13.5 GHz).

Purpose: transmitting and receiving signals in Kuband as a part of central TV broadcasting station, interactive microwave system or systems for the collection of video information.

ParameterValue
Frequency range, GHz 10.7 - 13.5
Gain, dBi 9
VSWR 2
Polarization horisontal
Cross-polarization isolation, dB 25
HPBW:
@horizontal   180°
@vertical 16°
Side-lobe level relative to the main beam, dB
Gain range in aperture, dB ±1
Temperature range, °C -50 to +80
Humidity 100% where 25°C
Size, mm 380х30х280
Weight, kg
Directional diagram tuning, deg:
 Elevation angle  ±30
 Azimuth ±360

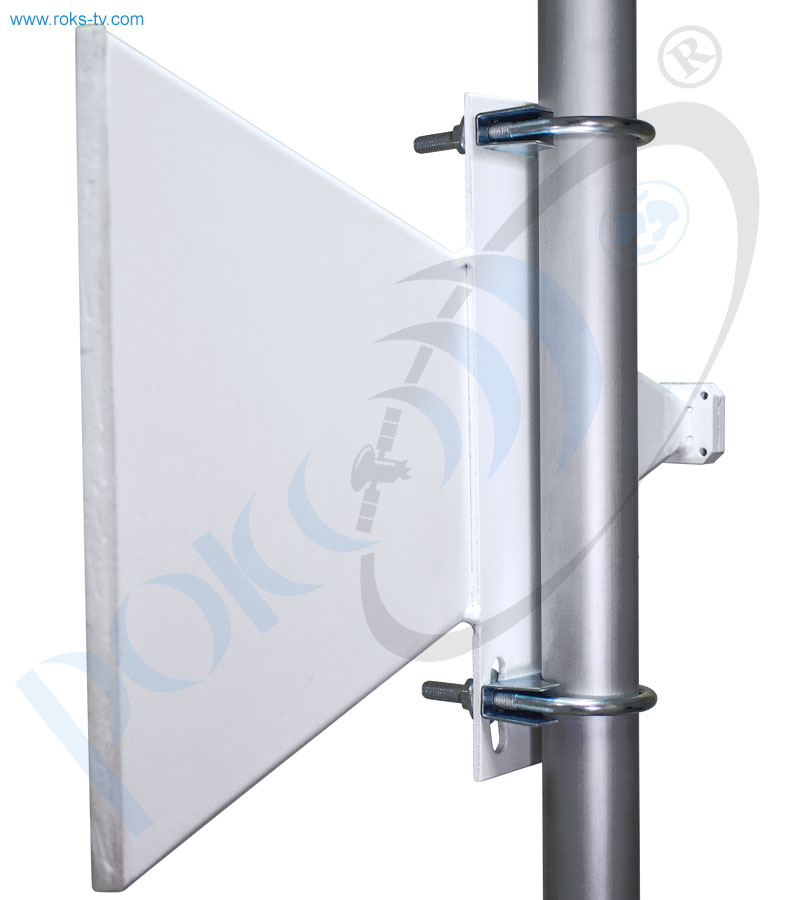

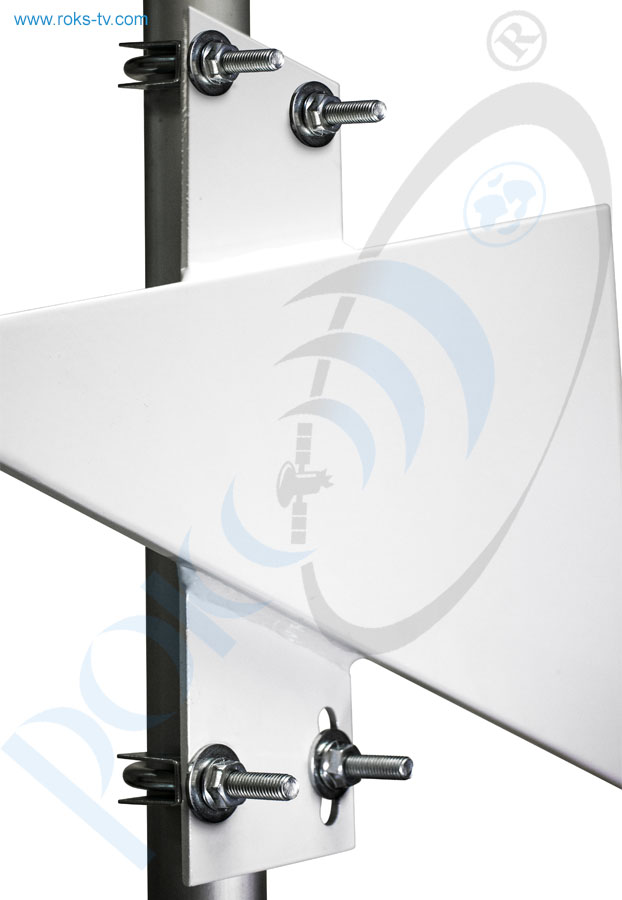

Mounting Installation on the pipe diameter up to 45 mm
Input power, W 20
Body Dust/moisture proof

Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
