SWA-Ku360 v3
- Description
- Parameters
- Downloads

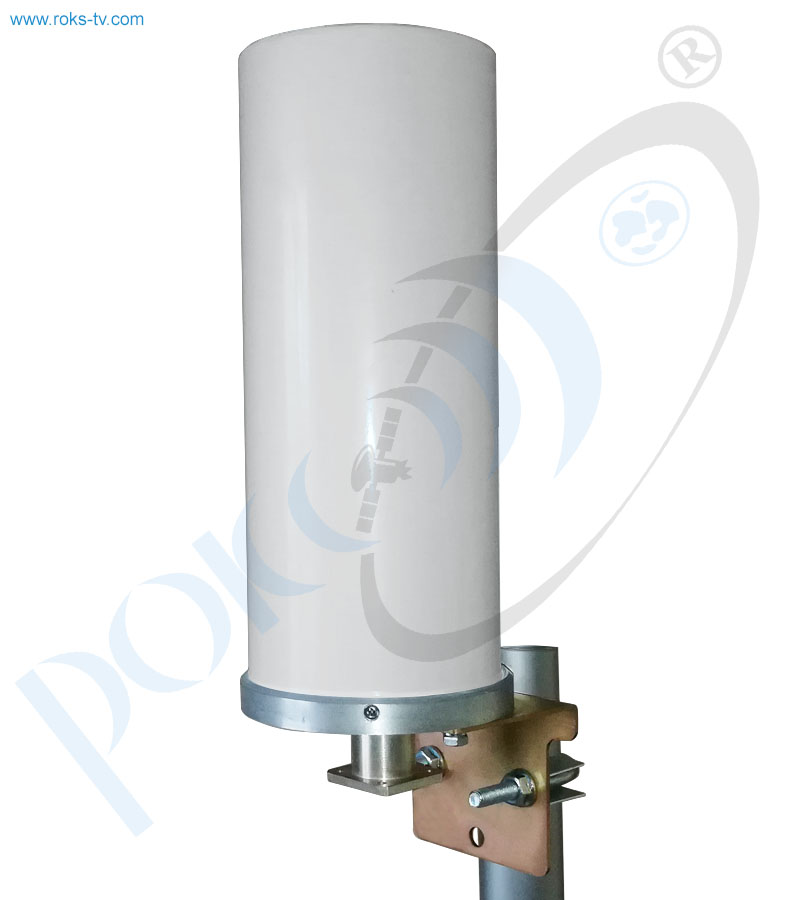

Ku-band OMNI slotted waveguide antenna is designed for MVDS/MMDS broadcasting systems at Ku-band range. It has 360 deg pattern, 1 GHz bandwidth and high Gain 12 dBi. Ku-band OMNI SWA has compact dimensions, can be installed with minimal visibility and windage. Signal transmitted by such antenna can be received by typical Ku-band SAT dish and LNB
KEY FEATURES:
- Radiation pattern: 360 deg
- Bandwidth: 1 GHz
- Gain: 12 dBi
- Compact dimensions
| Parameter | Value |
|---|---|
| Frequency range, GHz | (I) 10,7-11,7 (II) 11,7-12,7 (III) 12,5-13,25 |
| Gain, dBi, at least | 12 |
| Gain variation in the aperture, dB, not more | ±2 |
| VSWR, max | 2 |
| Polarization | Linear, horizontal, vertical (by order) |
| Cross-polarization, dB, not less | 25 |
| HPBW: | |
| @horizontal | 360° |
| @vertical | 9° |
| Input power, W, up to | 20 |

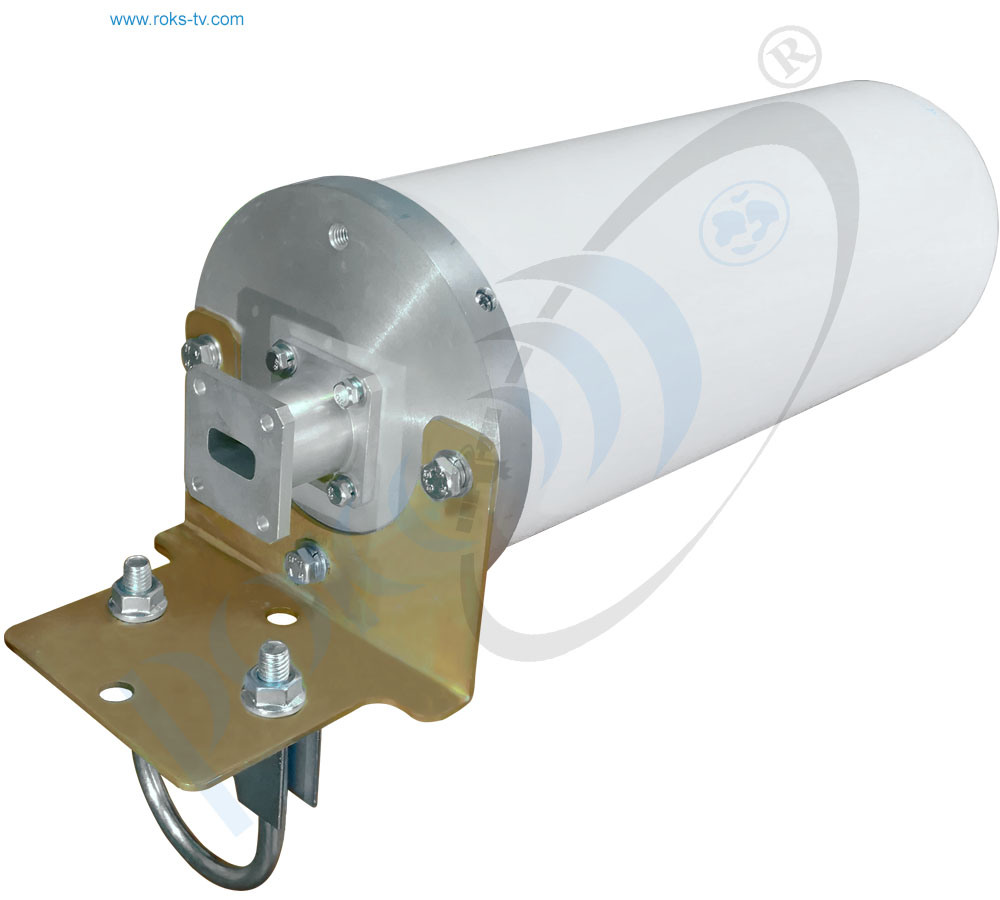

| Waveguide | WR-75 flange |
| Operating temperature, ° C | -40 до +80 |
| Humidity | 100% @ 25°C |
| Dimensions, mm, not more | 250x60x60 |
| Weight, kg, not more | 1 |
| Mount | Mounting on a vertical pipe with a diameter of 45mm |
| Casing material | dust/moisture proof |
