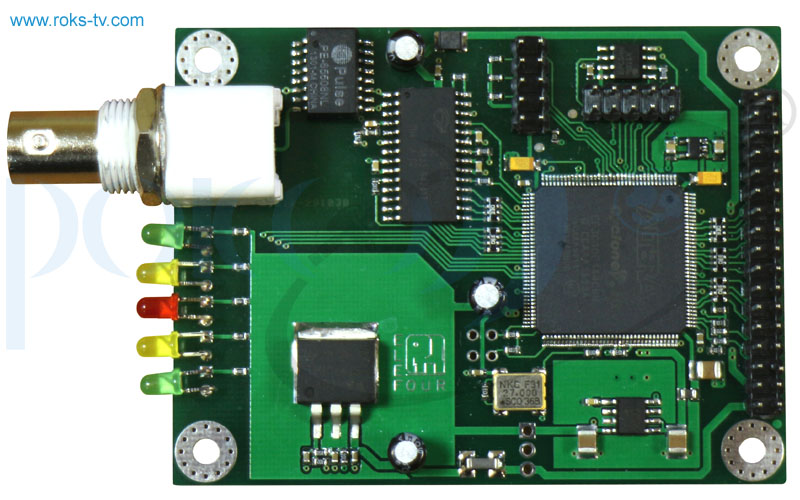

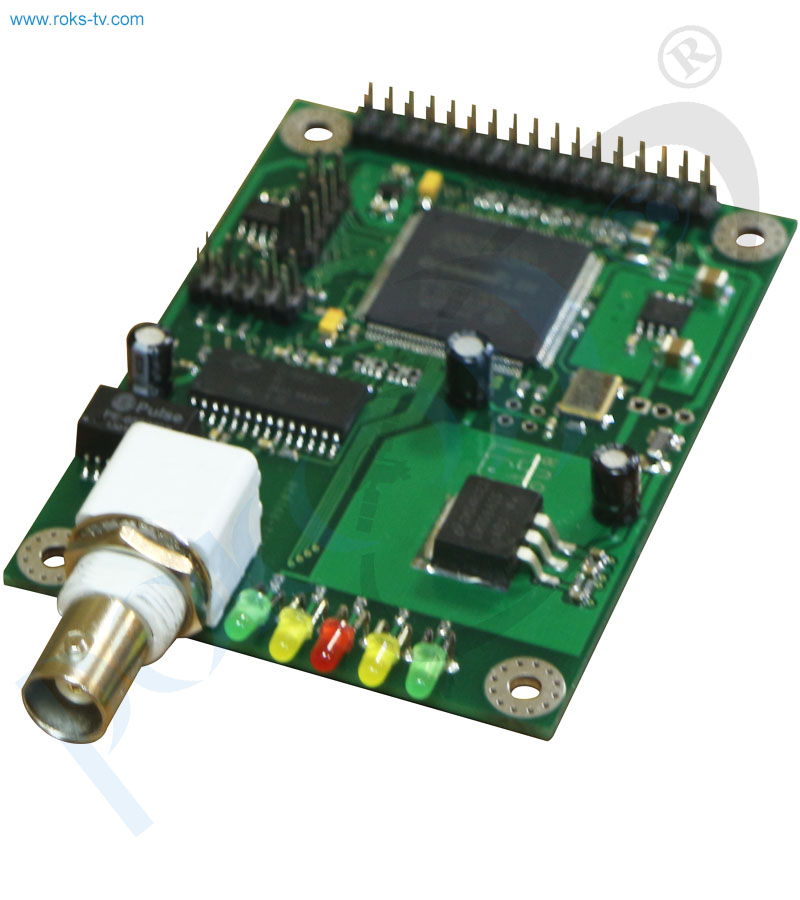

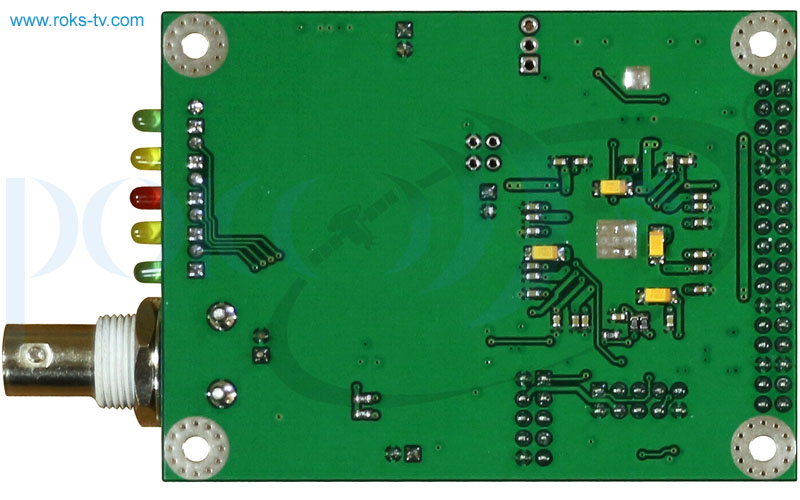

ASI input board
- Description
- Parameters
- Downloads
ASI input board is intended for converting the DVB-ASI transport stream to DVB parallel transport stream and can be used for designing a variety of converters and other digital television equipment. The output transport stream from ASI input board is used as input stream for:
- DVB-S/S2 modulator;
- DVB-C/T/T2 modulator;
- DVB TS-to-IP converter or other compatible format converter.
The input ASI stream can be received in packet or byte modes, 188 or 204 bytes in the packet. The output parallel transport stream is given in byte mode (188 bytes per packet), as the most universal and acceptable for all related modules. In addition, there is LED indication of operating modes on the board for better control.
| Parameter | Value |
|---|---|
| Output Type | DVB ASI, electric |
| Modes | batch, byte |
| The number of bytes in the packet | 188/204 |
| Defining the type of the input stream | Automatic |
| Number of outputs | 1 |
| Type of output connectors | BNC |
| Interface output voltage | 200 ... 800 mV |
| Interface output impedance | 75 Ohm |
| Input bitrate | up to 150 Mbps |
| Output bitrate | up to 150 Mbps |
| Power | + 5V +/- 5% VDC |
| Power consumption | 3 W |
| Dimensions | 80x60 mm |
Taking into consideration that we (ROKS PrJSC) are developer and system integrator, also do not stop on our technical growth and improvement, know that view of all our devices and equipment including their technical parameters may be different from pictures presented on website and parameters listed on each device webpage.
Note! All details customer has to confirm in advance during ordering and before payment. Those parameters that were not specified and / or were not agreed while ordering will be implemented as basic at the discretion of the manufacturer. Each our customer has 1.5 year warranty and 7 year aftersales support for whole range of our products.
